TECHNICAL DATA:

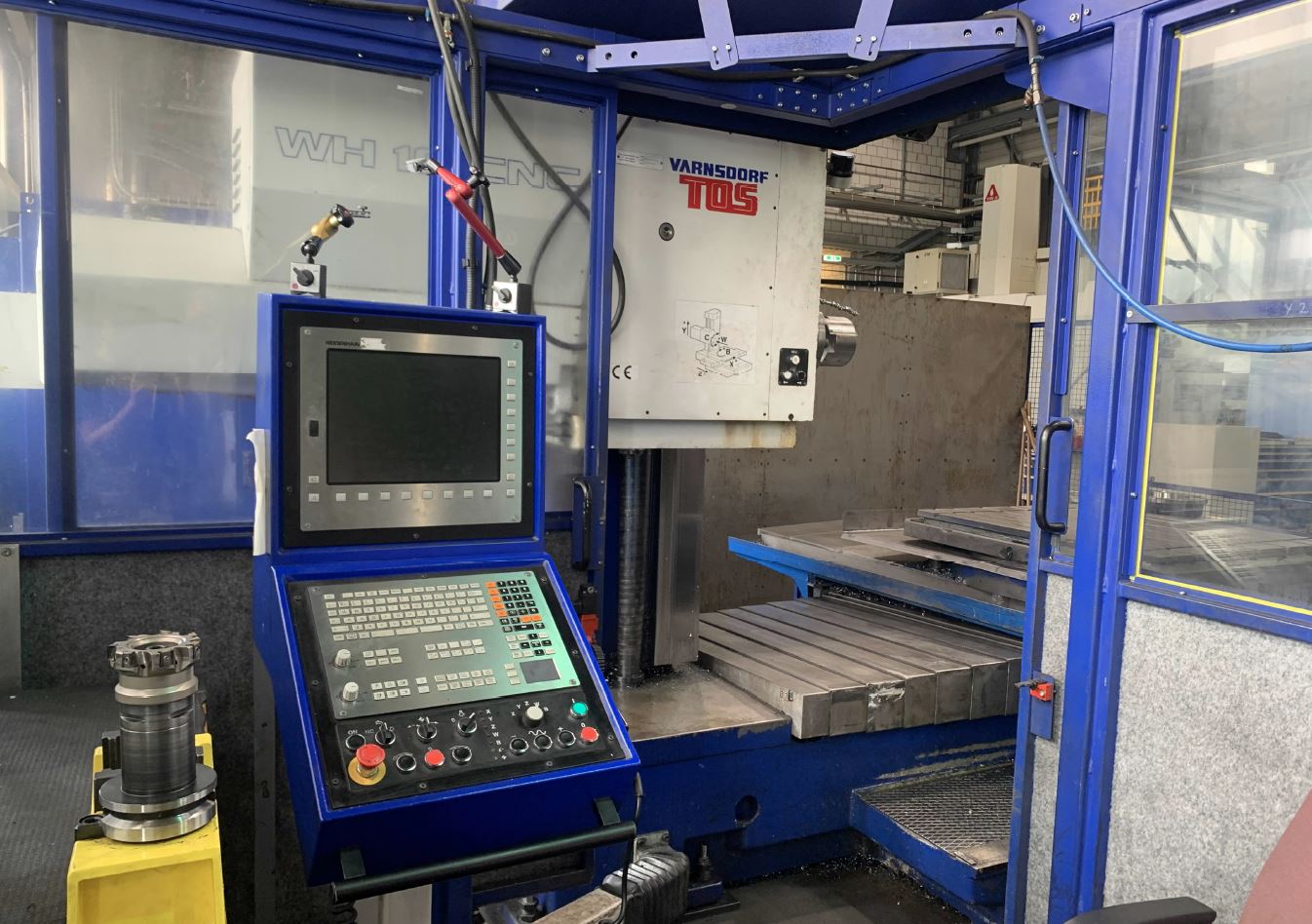

CNC Heidenhian 530
WORK AREA:
X axis longitudinal travel: 1.250 mm
Y axis transversal travel: 1.100 mm
Z axis vertical travel: 940 mm
W axis quill stroke: 630 mm
B-axis rotary table: 0 – 360°

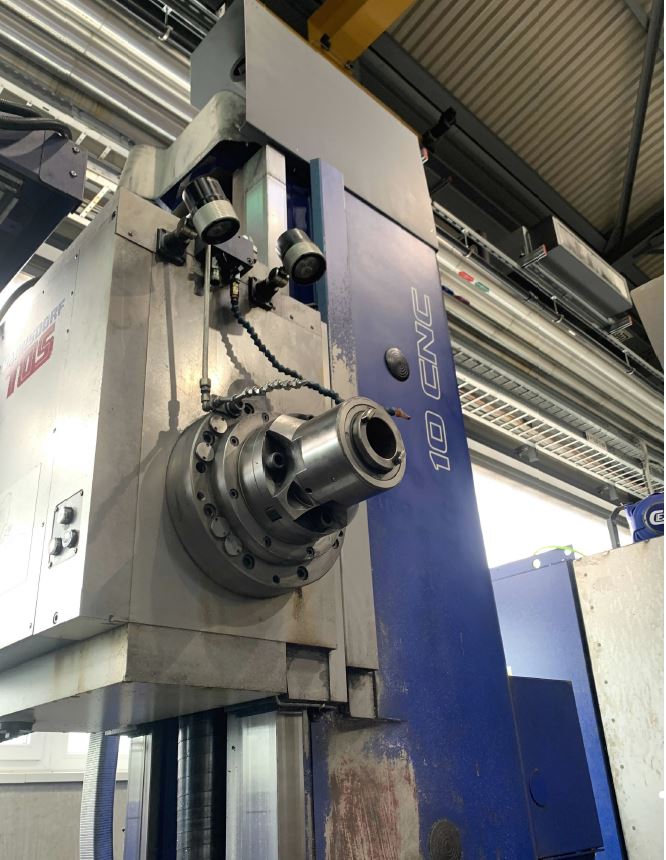

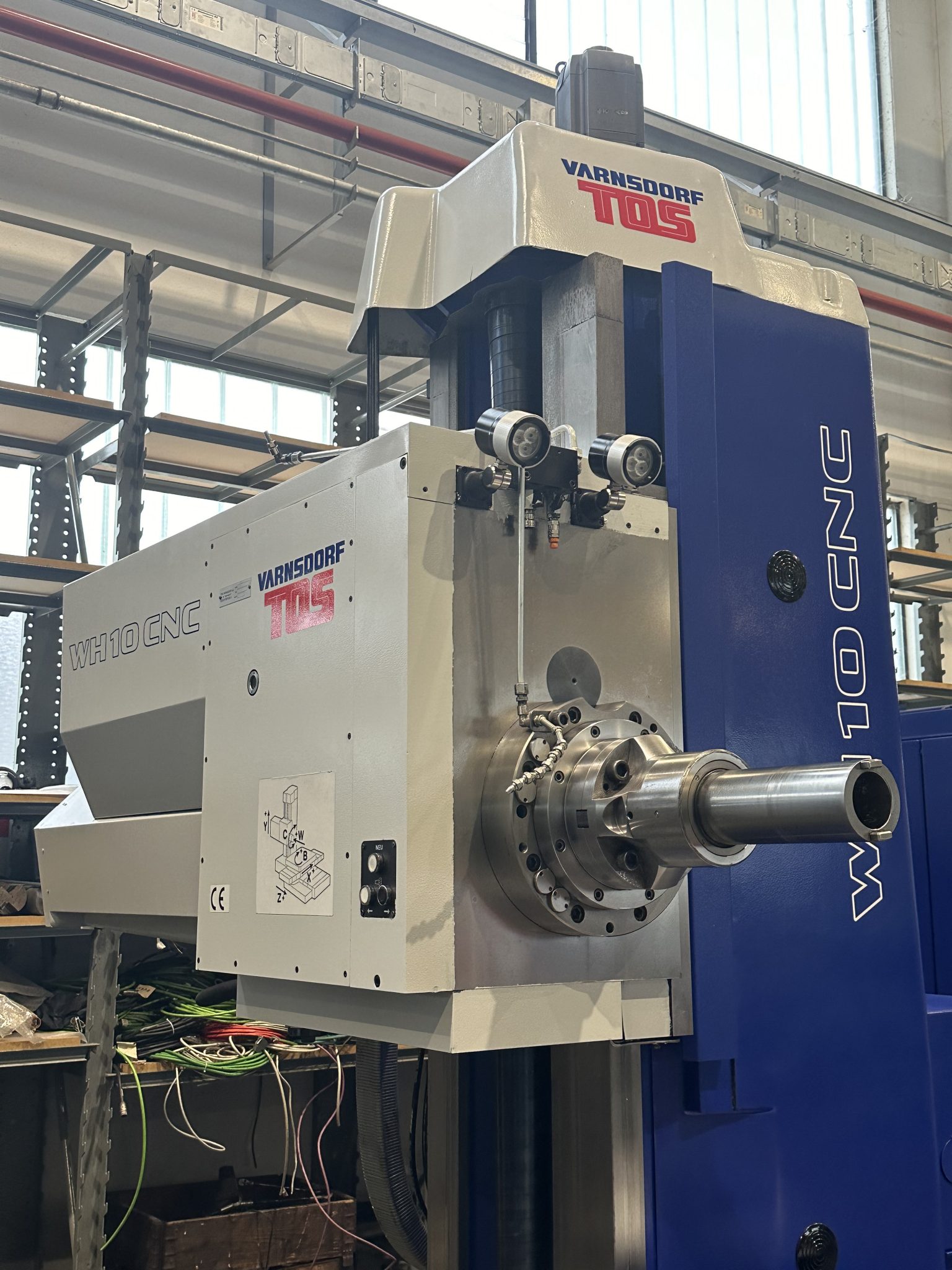

SPINDLE:
Spindle diameter: 100 mm
Spindle attachment cone: ISO 50
Max spindle speed: 2.500 rpm

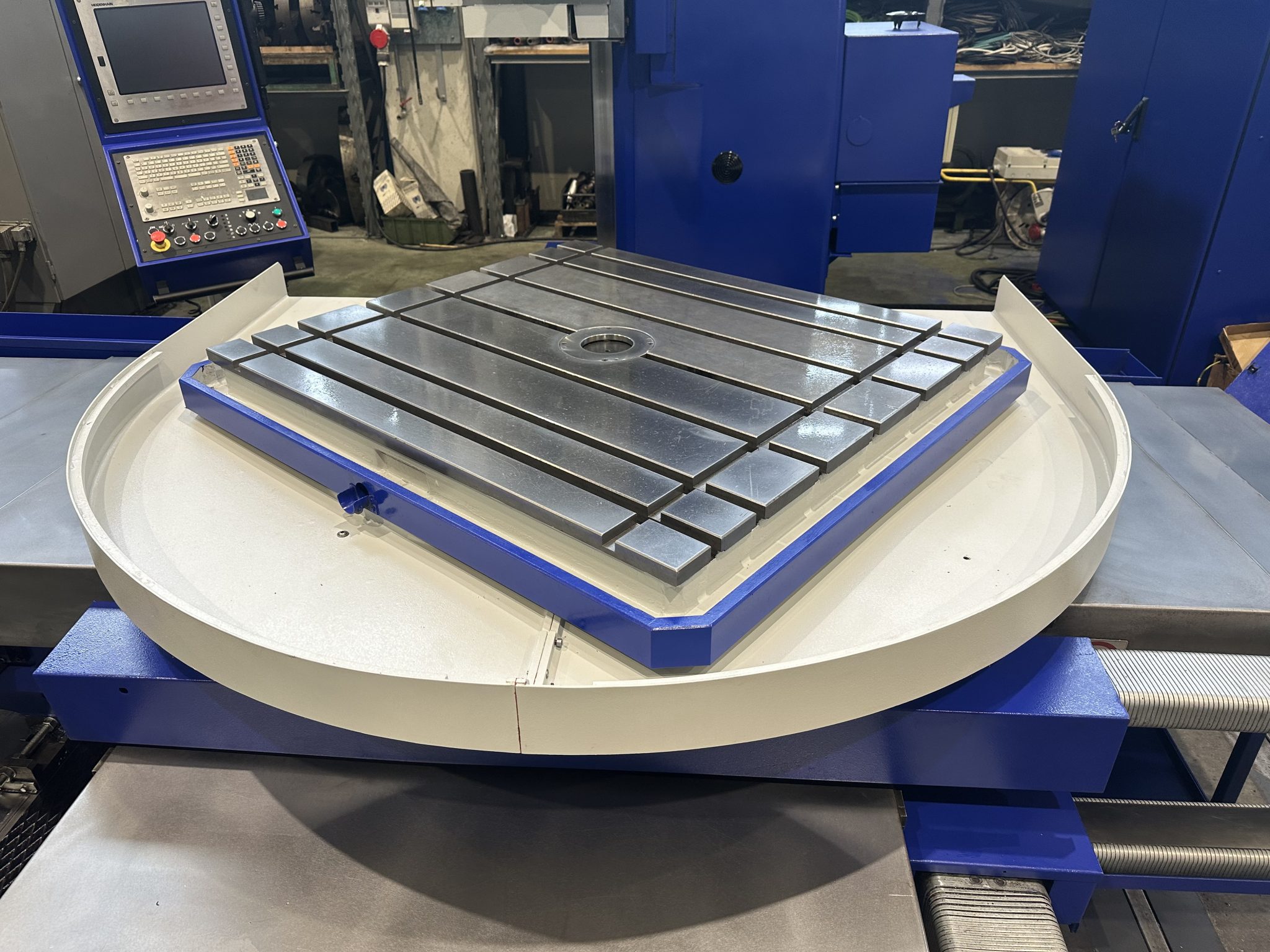

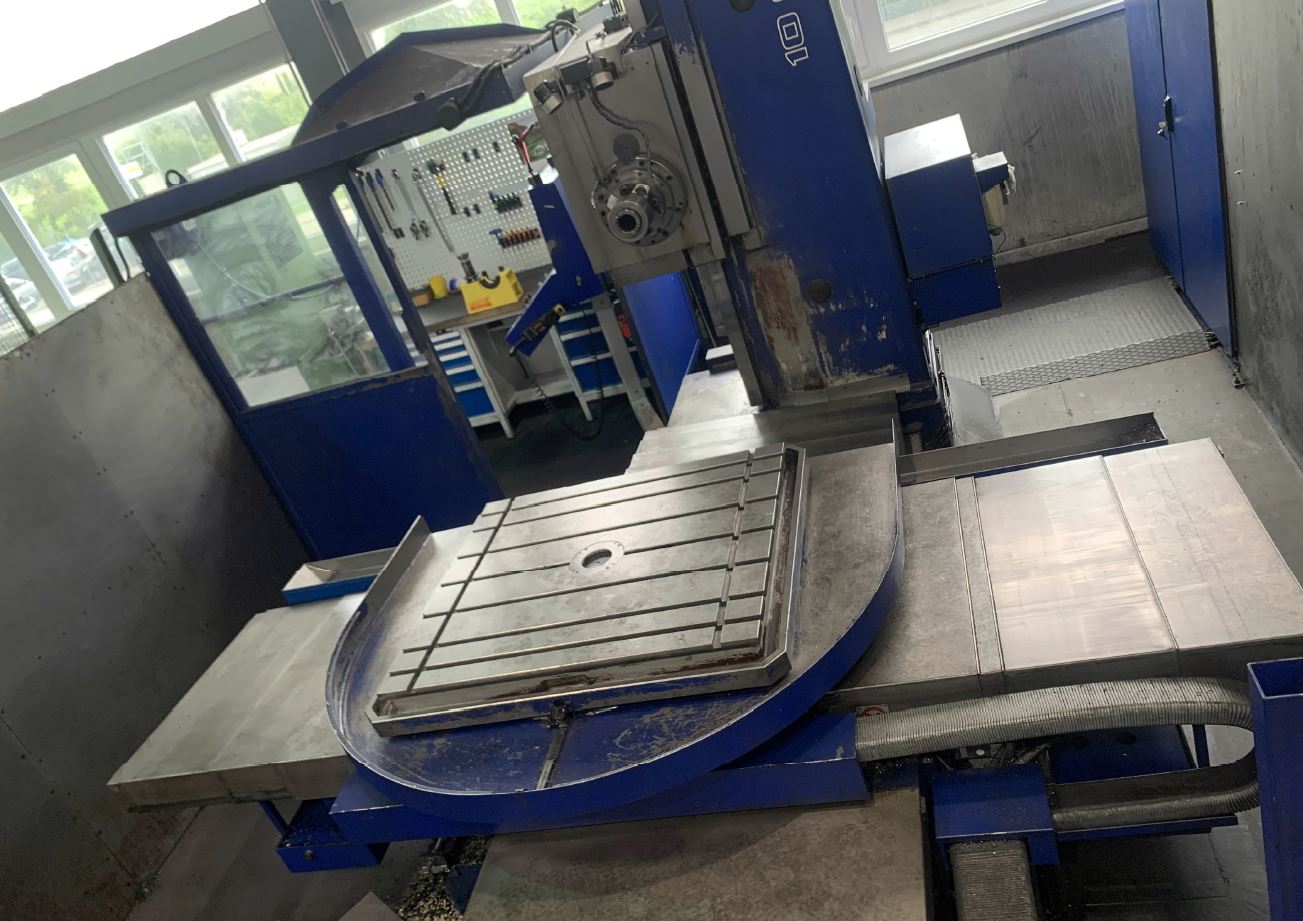

TABLE:
Table dimensions: 1.000 x 1.120 mm
Maximum capacity: 3.000 kg
ADVANCEMENTS:
X, Y, Z, W axis work feeds: mm/min 4-1.600
Rapid X, Y, Z, W axes: mm/min 8.000
Rapid B axis: °/min 720
Machine weight: 12.500 kg
Year of construction: 2014
