Technical Specifications
This turning center is available in two versions, with bar passage diameters of 51 mm and 70 mm.
KEY FEATURES:
- High-rigidity stabilized cast iron base, which ensures vibration damping, features prismatic guides on the X and Y axes and roller guides on the Z axis.
- Synchronous electric spindles are high-power and highly dynamic, liquid-cooled, and enable high material removal rates and excellent surface finish.
- 15-position servo-driven turret.
- Direct-drive power tools .
- Automatic tailstock(B-axis), which provides a high degree of operational flexibility.
- Counter-spindle synchronized with the workpiece ejector and collet cleaning system, and equipped with a micro-sensor to verify the ejection of the finished workpiece, as well as a counter-spindle load monitoring system.
- Fanuc CNC with a 15-inch touchscreen.
- Rigid tapping.
- Chip conveyor with a medium-pressure coolant system and filter.
- Provision for a bar feeder.
Machine comes complete with:
VERSIONI DISPONIBILI:
B620
- Macchina base con contropunta automatica a CN.
B620M
- Torretta a 15 posizioni motorizzate;
- Asse C;
- Contropunta automatica a CN.
B620SM
- Torretta a 15 posizioni motorizzate;
- Asse C mandrino principale;
- Contromandrino con asse C.
B620Y
- Torretta a 15 posizioni motorizzate;
- Asse C;
- Asse Y;
- Contropunta automatica a CN.

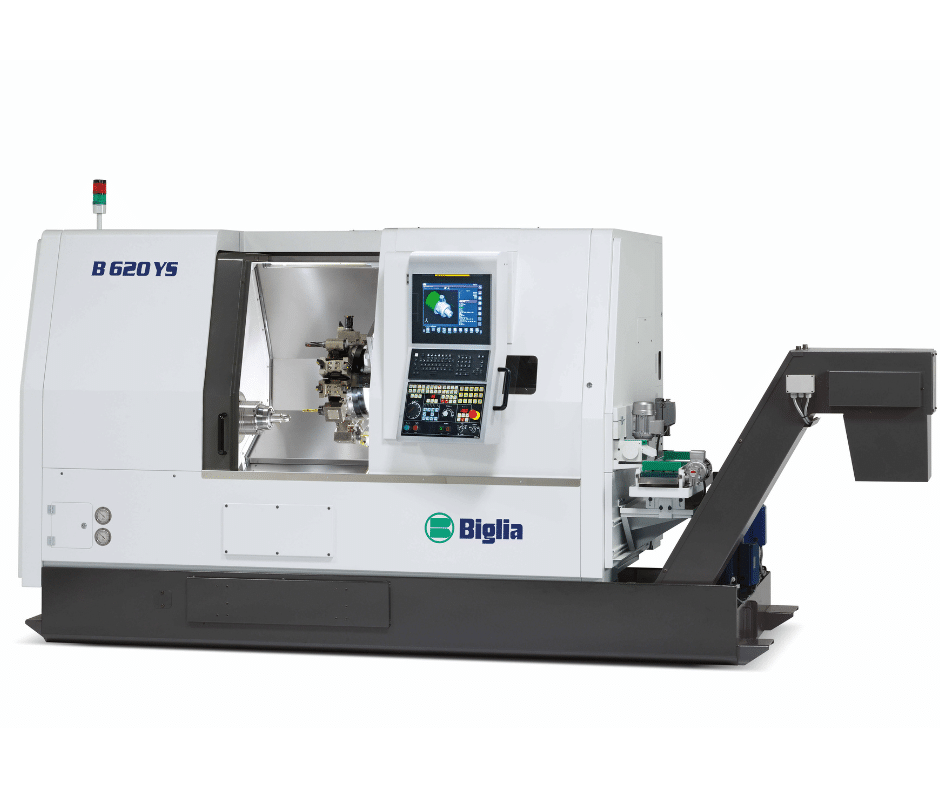

B620YS
- Torretta a 15 posizioni motorizzate;
- Asse C mandrino principale;
- Asse Y;
- Contromandrino con asse C.
