Technical Specifications
TECHNICAL SPECIFICATIONS:
Heidenhain TNC 530 CNC

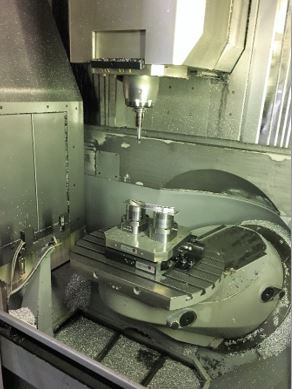

WORK AREA:
Longitudinal X: 750 mm
Y-axis: 600 mm
Vertical Z: 520 mm
CHUCK:
Spindle mount: SK 40 DIN 69871
Rotational speed: 18,000 rpm
Spindle power: 35 kW
PROGRESS:
Linear axis feed rate range: 20,000 mm/min
Rapid feed rate of linear axes: 50,000 mm/min
TABLE:
Clamping surface: 700 x 500 mm
Max. table load: 350 kg
TOOL STORAGE:
Warehouse positions: 60
Machine comes complete with:
- High pressure through the spindle: 40 bar
- 600-liter cooling tank with paper filter
- BLUM Laser System, Tool Presence/Presetting
- Heidenhain TS 640 Measuring Probe
- Chip Conveyor
- Remote-Controlled Electronic Flapper
- DMG “3D Quick Set” Kinematics Retooling Software

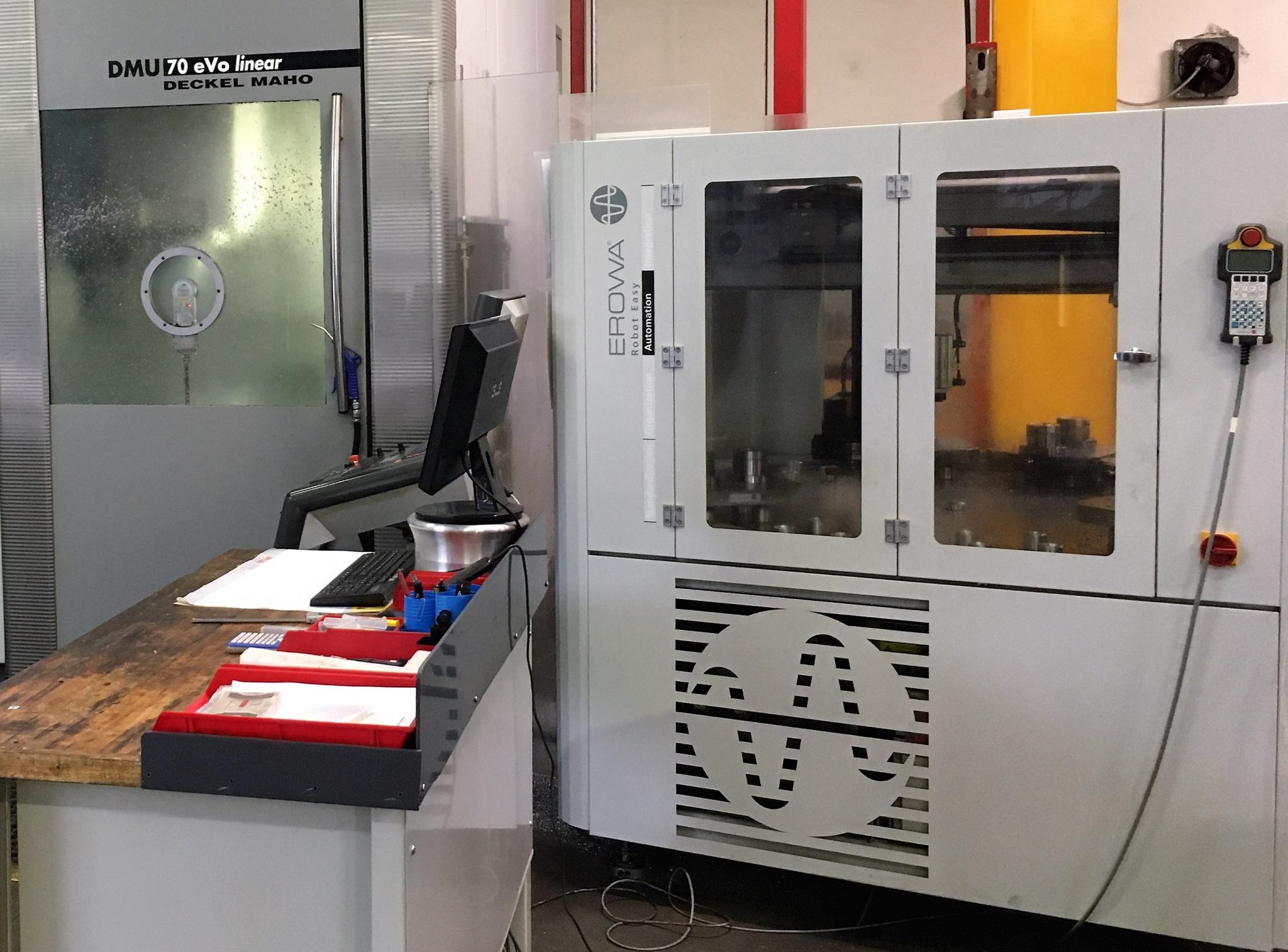

- EROWA ROBOT EASY UPC Pallet Change System (2013)
- 10 pallets measuring 320×320 mm
- Instruction Manuals and EC Declaration
Year built: 2007
