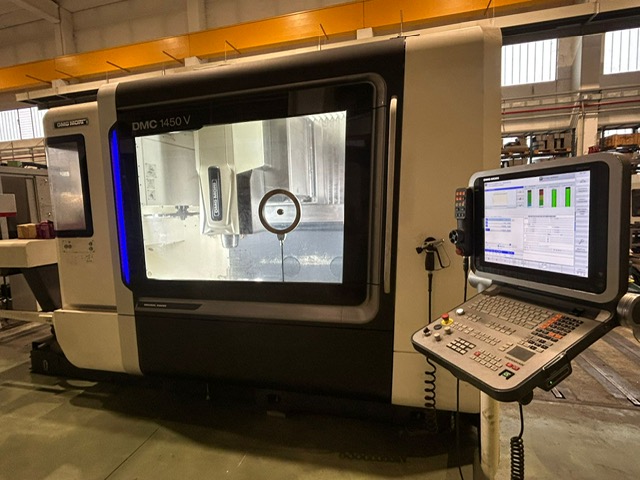

Technical Specifications
TECHNICAL SPECIFICATIONS:
Year of manufacture: 2017
CNC: Heidenhain 640

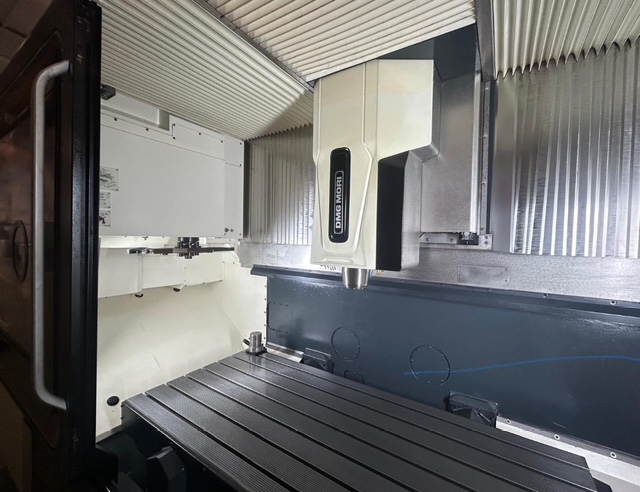

WORK AREA
X-axis: 1,450 mm
Y-axis: 700 mm
Z-axis: 550 mm
Rapid feed rates (X/Y/Z): 42 m/min
Maximum spindle speed: 14,000 rpm
Tool holder: SK 40
Tool magazine capacity: 30
Table dimensions: 1,760 × 750 mm
Maximum table load: 2,000 kg
RESOURCES:
HEIDENHAIN 640 CNC
DXF file reader
Fourth-axis ready
Tool presetting
Heidenhain workpiece measuring probe
High-pressure coolant system through the spindle (40 bar) with paper filter tank, 600-liter capacity
Cooled table
Air conditioning unit
30-position tool magazine
Instruction manuals and CE declaration
