TECHNICAL SPECIFICATIONS:

Heidenhain iTNC 530 CNC

WORK AREA:

Longitudinal X: 750 mm

Y-axis: 600 mm

Vertical Z: 520 mm

CHUCK:

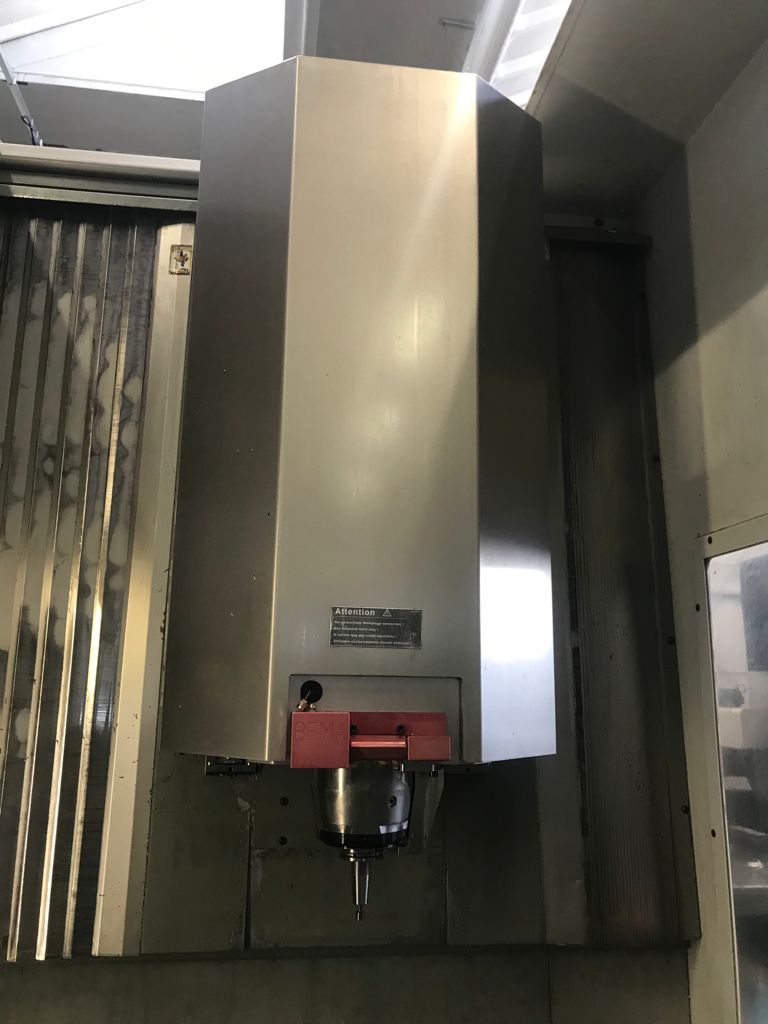

Spindle taper: SK 40

Rotational speed: 18,000 rpm

Spindle power: 35 kW

PROGRESS:

Linear axis feed rate range:

20,000 mm/min

Rapid feed rate of linear axes: 50,000 mm/min

TABLE:

Clamping surface: 700 x 500 mm

Max. table load: 350 kg

TOOL CHANGE:

Warehouse positions: 60

Machine comes complete with:

• Remote-Controlled Electronic Flapper
• High pressure through the spindle
• Instruction Manuals and EC Declaration

Year built: 2002

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
