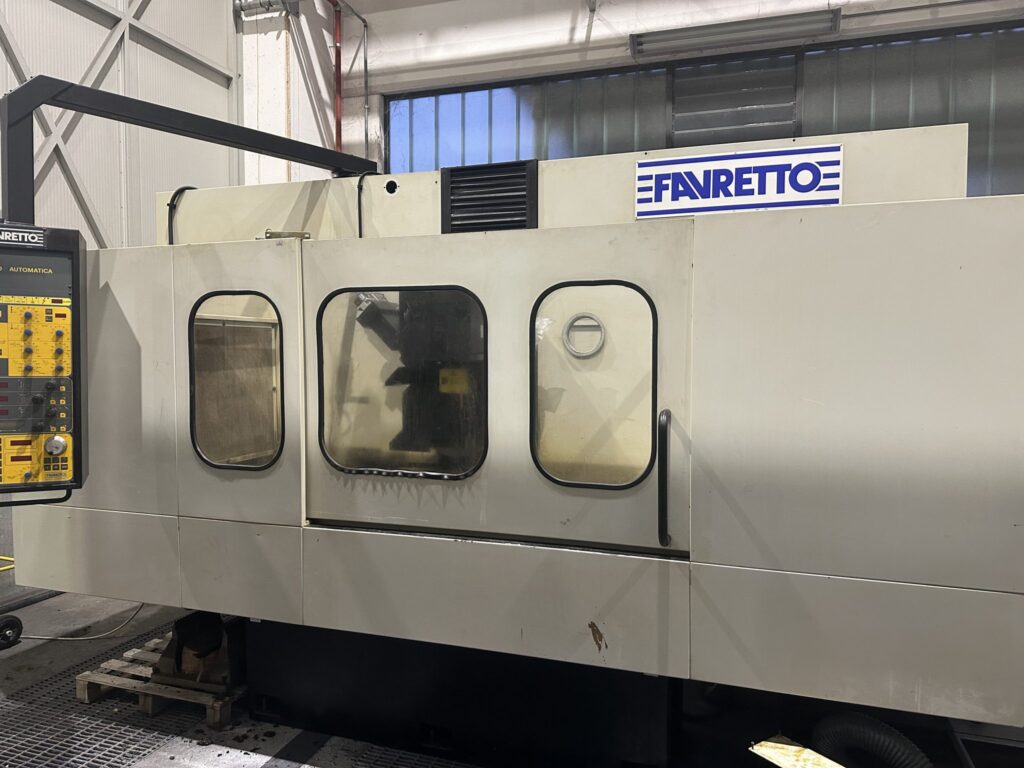

Technical Specifications
TECHNICAL DATA:
WORKING CAPACITY:
Maximum rectifiable length: 750 mm
Maximum grindable width: 500 mm
Maximum rectifiable height: 550 mm
GRINDING HEAD:
Power: 9 kW
Grinding wheel dimensions (diameter x bore x width): 400 x 127 x 50 mm
Rotation speed: 1,400 rpm
LONGITUDINAL AXIS TABLE:
Speed: 2–40 m/min
Maximum load without a magnetic chuck: 700 kg
Maximum load with magnetic chuck: 530 kg
Rectified surface dimensions: 750 x 400 mm
Travel: 750 mm
Total travel: 870 mm
HEAD TRANSVERSAL AXIS:
Rapid speed: 5 m/min
Adjustable increments: 1 to 50 mm
Continuously adjustable feed lengths: 0 to 2,000 mm
Minimum working increments: 0.001 mm
Useful stroke: 450 mm
Total stroke: 485 mm
VERTICAL AXIS HEAD:
Minimum working increments: 0 .001 mm
Useful stroke: 610 mm
Total stroke: 645 mm
DIMENSIONS:
Length: 3,950 mm
Width: 2,935 mm
Height: 2,540 mm
Machine weight: 5,900 kg
Machine comes complete with:
- Magnetic table 750 x 400 mm
- Instruction manuals and CE declaration
Year of construction: 1999
