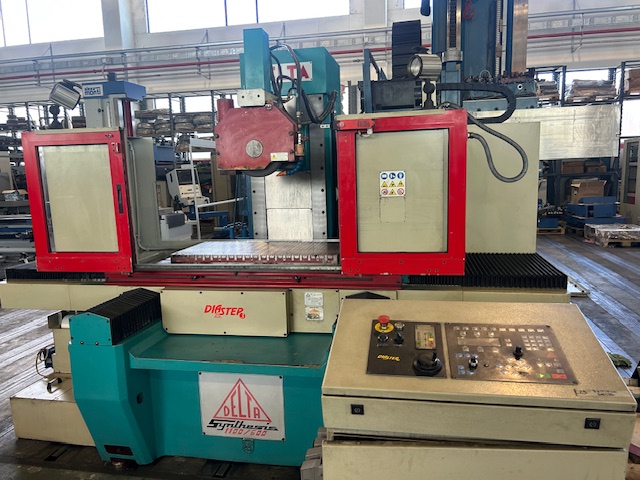

Technical Specifications
TECHNICAL SPECIFICATIONS:
WORK CAPACITY:
Maximum grindable length: 750 mm
Maximum grindable width: 500 mm
Maximum adjustable height: 550 mm
CUTTING HEAD:
Power: 9 kW
Grinding wheel dimensions (diameter x bore x width): 400 x 127 x 50 mm
Rotational speed: 1,400 rpm
LONGITUDINAL AXIS OF THE BOARD:
Speed: 2–40 m/min
Maximum load without magnetic plate: 700 kg
Maximum load with magnetic plate: 530 kg
Dimensions of the ground surface: 750 x 400 mm
Effective stroke: 750 mm
Total stroke: 870 mm
HEAD TRANSVERSAL AXIS:
Fast speed: 5 m/min
Adjustable feed rate: 1–50 mm
Continuously adjustable feed rates: 0–2,000 mm
Minimum work increments: 0.001 mm
Effective stroke: 450 mm
Total stroke: 485 mm
VERTICAL HEAD AXIS:
Fast speed: 1.5 m/min
Minimum work increments: 0.001 mm
Effective stroke: 610 mm
Total stroke: 645 mm
DIMENSIONS:
Length: 3,950 mm
Width: 2,935 mm
Height: 2,540 mm
Machine weight: 5,900 kg
Machine comes complete with:
- Magnetic plate, 750 x 400 mm
- Instruction Manuals and EC Declaration
Year built: 1999
