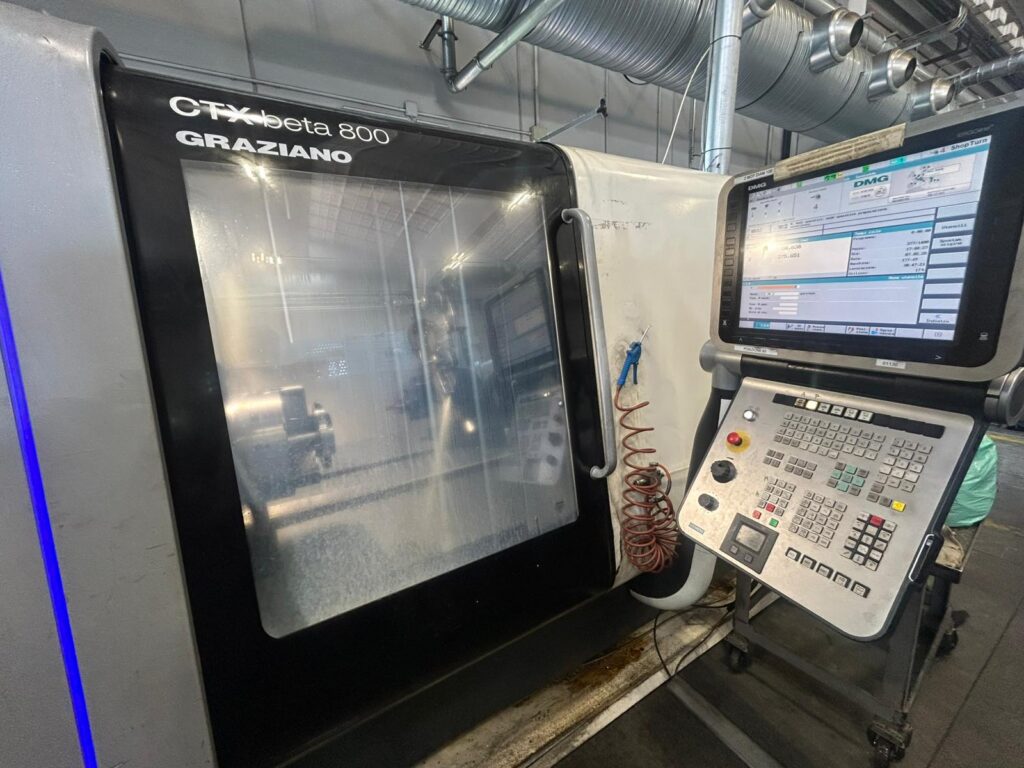

GRAZIANO CTX BETA 800 CNC Lathe

TECHNICAL SPECIFICATIONS
CNC: Siemens 840D

WORKING AREA:
Max. swivel diameter: 700 mm
Max. turning diameter: 410 mm
X-axis traverse: 300 mm
Z-axis stroke: 850 mm

SPINDLE:
Spindle nose: 170h5 mm
Bar passage: 76 mm
Clamping spindle: 315 mm
Power (40 / 100% duty cycle): 28 / 20 kW
Max. torque (40 / 100% duty cycle): 315 / 225 Nm
Max. speed: 5,000 rpm
Peak speed: 900 rpm

FEED RATES:
X-axis rapid traverse: 30 m/min
Z-axis rapid traverse: 30 m/min
Resolution: 0.025°

TOOL TURRET:
Number of motorized tool stations: 12
VDI 40 DIN 69880 shank diameter: 40 mm
Power (40% duty cycle): 12 kW
Max. torque (40% duty cycle): 36 Nm
Max. speed: 4,000 rpm

TAILSTOCK:
Tailstock travel with automatic feed: 800 mm
Tailstock mount: MK 5
Max. tailstock force: 800 daN
Machine weight: 6,100 kg

Year built: 2011

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
