TECHNICAL SPECIFICATIONS:

Machine equipped with powered tools and a C-axis

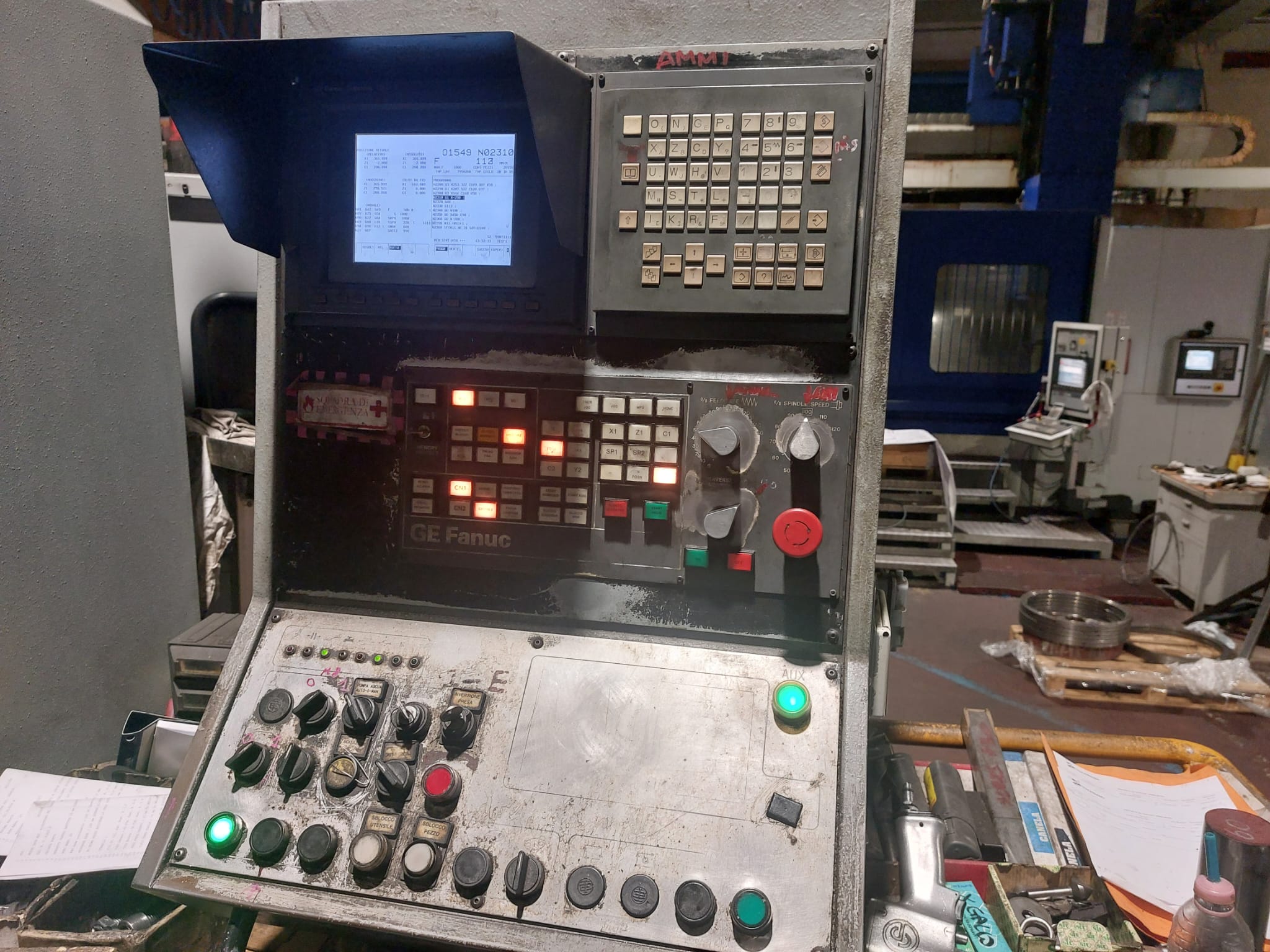

Fanuc 18i-T CNC

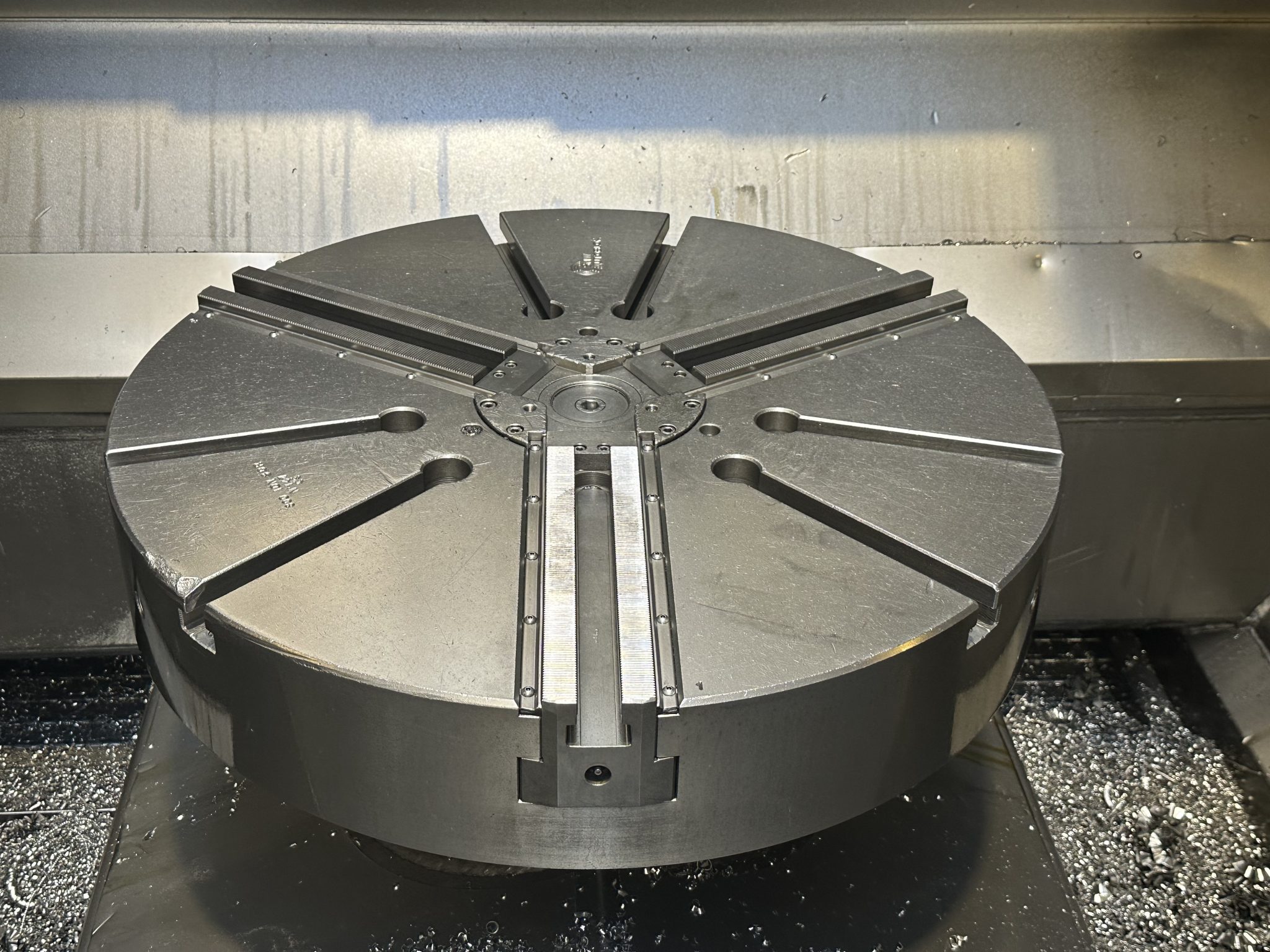

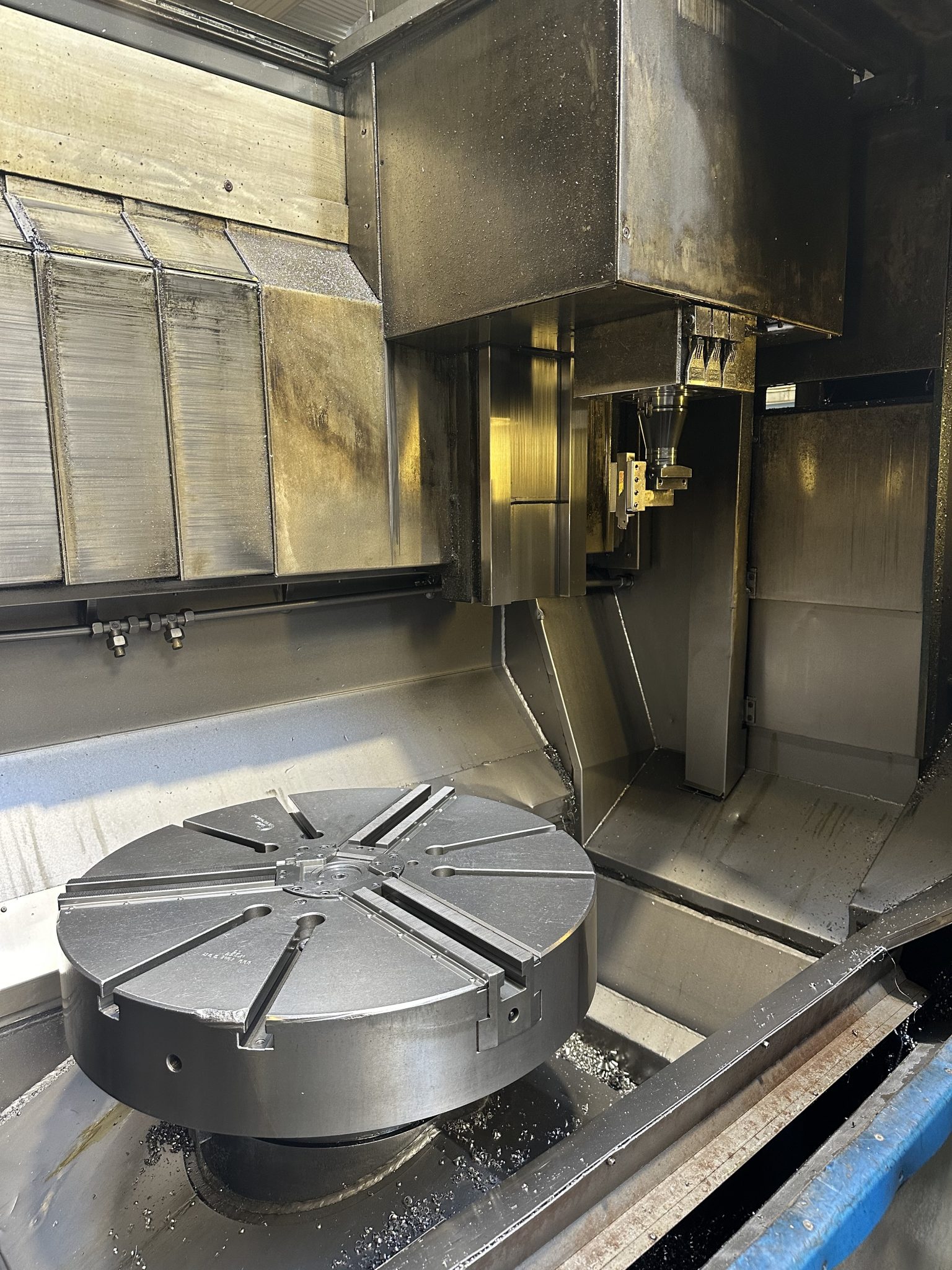

CHUCK:

Maximum turnable diameter: 1,200 mm

Maximum allowable diameter: 1,280 mm

Self-centering diameter: 800 mm

AC spindle motor power: 37–45 kW

Maximum spindle speed: 1,600 rpm

Spindle mount: ASA 15’’

Maximum speed: 12 m/min

SLEDS:

X-axis travel: 941 mm

Z-axis travel: 650 mm

Rated motor torque: 25 – 25 Nm

Peak engine torque: 80 – 80 Nm

TOOL CHANGE:

Number of tools: 24

Tool holder: HSK 100

Maximum weight per cell: 10 kg

GENERAL INFORMATION:

Total weight: 15,500 kg

Installed capacity: 92 kW

Maximum power (10 sec): 105 kW

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
