TECHNICAL SPECIFICATIONS:
CAPACITY:
Drilling through solid steel: 40 mm
Drilling through solid cast iron: 50 mm
Drilling with pilot hole in steel: 55 mm
Drilling with pilot hole in cast iron: 75 mm
Threaded section on steel: 40 mm
Threaded section on cast iron: 50 mm
CHUCK:
Head tube diameter: 68 mm
Hub travel: 280 mm
Morse taper: 4 cm
Rotation speed: No . 12
Speed values: 52–2,000 rpm
Automatic advances: 4
Feed rates: rpm 0.05–0.1–0.2–0.3
MAIN DIMENSIONS AND WEIGHTS:
Max. reach: 1,500 mm
Maximum drilling radius: 1,640 mm
Minimum drilling radius: 425 mm
Horizontal stroke of the head: 1,215 mm
Vertical arm stroke: 750 mm
Maximum clearance between the spindle and the base: 1,510 mm
Minimum clearance between the spindle and the base: 608 mm
Column diameter: 280 mm
Approximate net weight with workpiece table: 2,950 kg
Machine comes complete with:

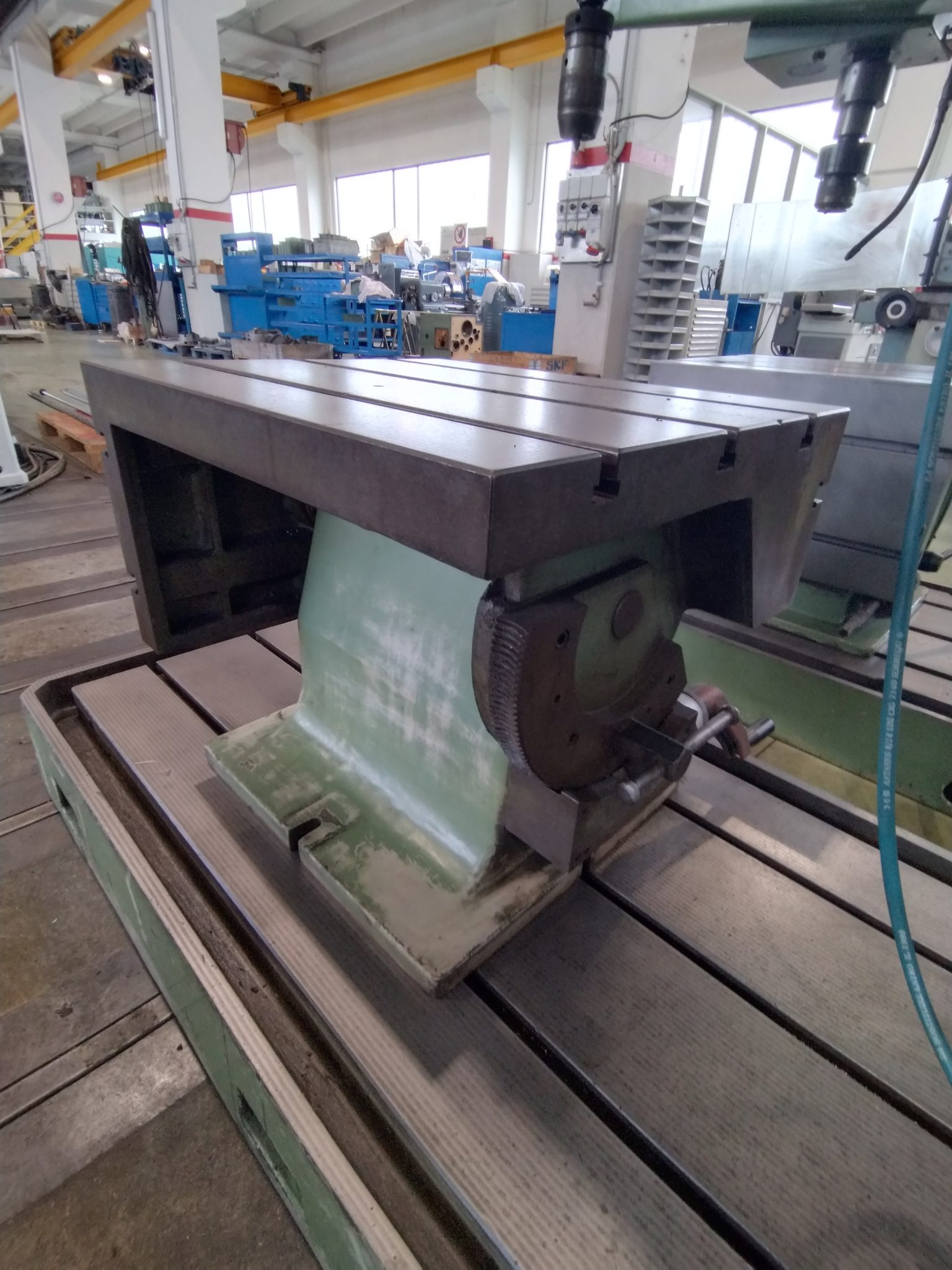

- Tilting Cube
- Instruction Manuals
KEY FEATURES:
Centralized control for 4 spindle rotation speeds with engagement and a version featuring a dual mechanical clutch.
Automatic drilling depth stop.
Safety devices to prevent the boom from moving forward and to prevent it from falling.
