Technical Specifications
ACCESSORIES:

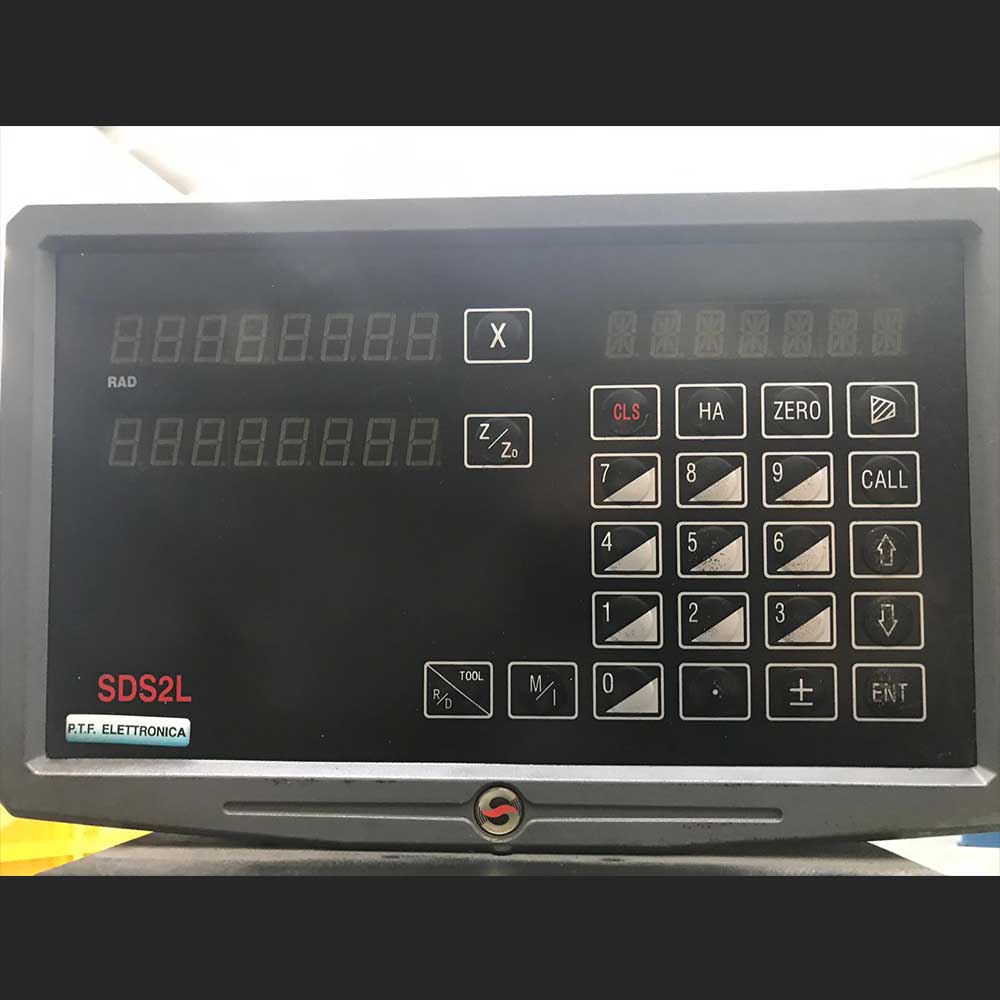

- 2-Axis Coordinate Display
- Self-centering double-guide, 4-jaw, 450 mm diameter

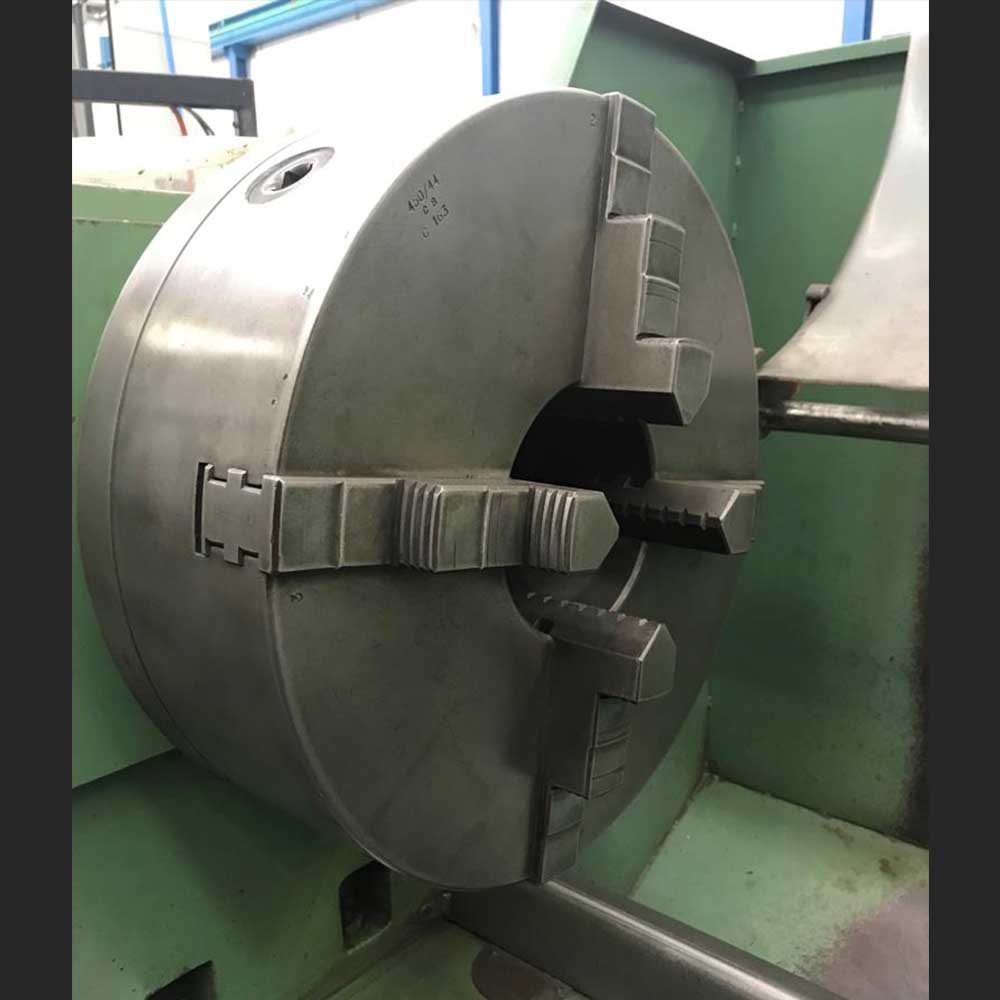

- 4-jaw chuck, 700 mm diameter
- “Type C” Swivel Turret
TECHNICAL SPECIFICATIONS:
- Maximum diameter that can be turned on the lathe: 800 mm
- Rotating diameter at the natural recess: 1000 mm
- Turning diameter on the cross slide: 570 mm
- Bench width: 500 mm
- Effective length of the natural groove: 518 mm
- Min. and max. speeds: 24; 14–1,000 rpm
- Spindle nose type: D1 11”
- Spindle bore diameter: 125 mm
- Jig head stroke: 270 mm
- Tailstock spindle diameter: 125 mm
- Length of tailstock slide: 430 mm
- Tailstock MORSE taper: No. 6
- Transverse carriage travel: 440 mm
- Tool carriage stroke: 260 mm
- Max. turnable diameter of the movable faceplate: 285 mm
- Max. turnable diameter with fixed faceplate: 310 mm
- Main engine power: 20 HP
- Spindle bearing diameter: 170/230 mm
- Number of standard threads: 254
- Minimum/maximum longitudinal feed: 0.08–3 mm
- Minimum/maximum cross-feed: 0.04–1.5 mm
- Length of the carriage resting on the bench: 750 mm
- Transverse carriage length: 780 mm
- Distance between tips: 1,500 mm
- Net weight: 4,300 kg
