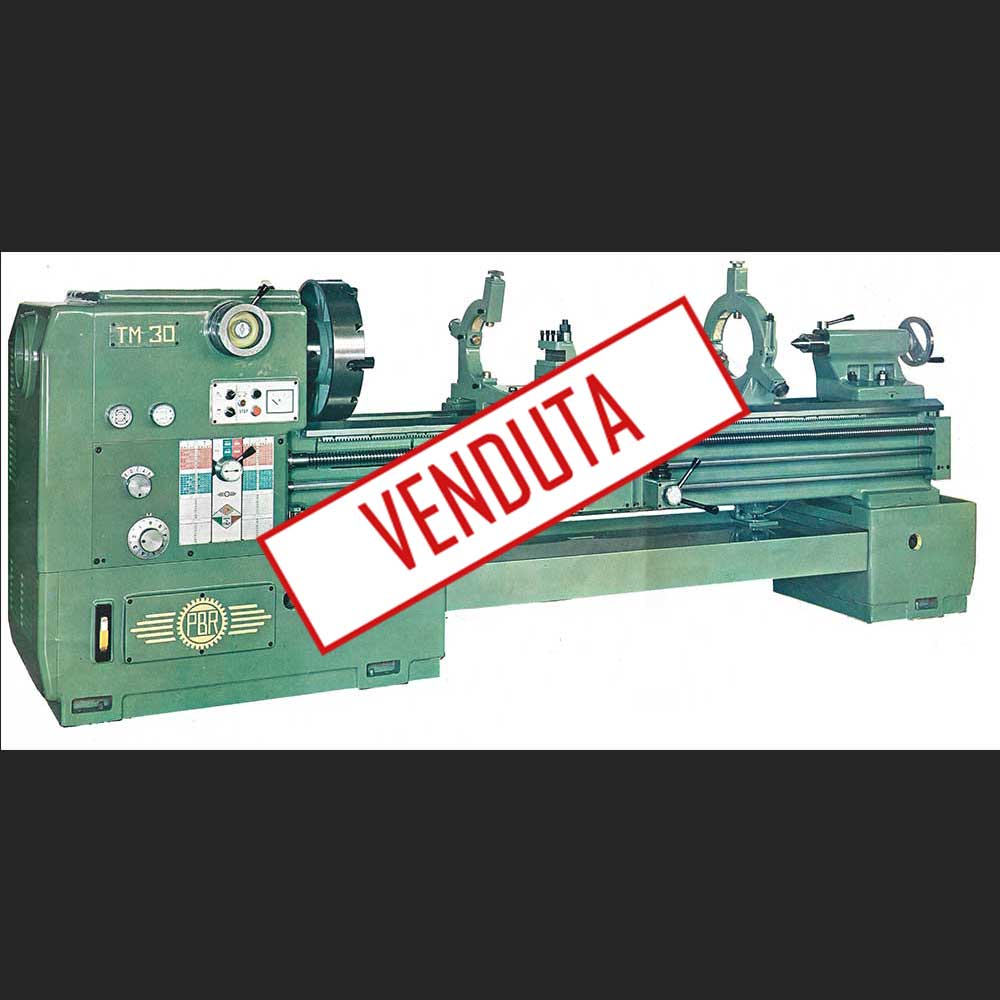

Technical Specifications
TECHNICAL SPECIFICATIONS:
- Tip height: 300 mm
- Max. turning diameter on the bed: 620
- Max. turning diameter on the cross slide: 400 mm
- Maximum turning diameter at the groove: 860 mm
- Bench width (hardened guides): 440 mm
- Length of the recess in front of the nose of the mandrel: 320 mm
- Spindle nose: 8-inch Cam-Lock
- Spindle bore diameter: 105 mm
- Tailstock spindle diameter: 80 mm
- Morse taper tailstock: No. 5
- Tailstock cross slide travel: 200 mm
- Longitudinal feed rates: 0.05 / 11.2
- Cross-progression: 0.05 / 11.2
- Engine power: 15 HP
