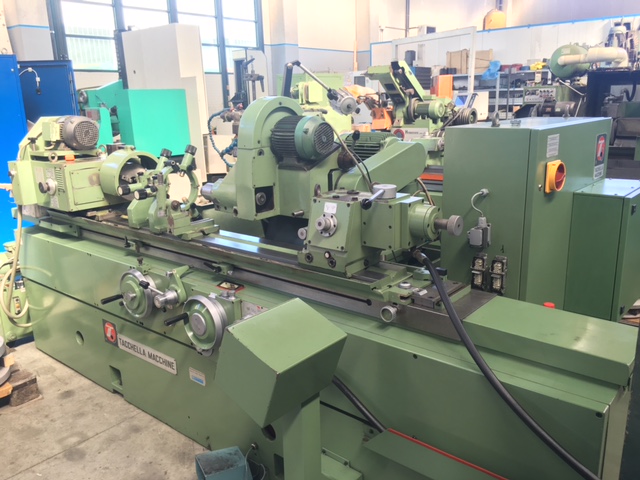

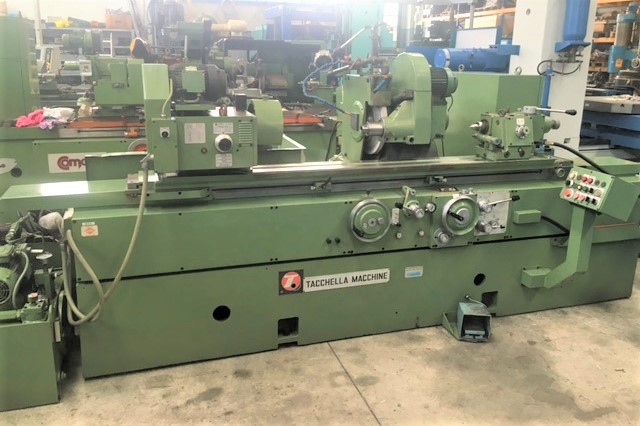

TECHNICAL SPECIFICATIONS:

Comes with a 2-axis coordinate display

WORK CAPACITY:

Center-to-center distance and maximum grindable length: 1,500 mm

Tip height: 180 mm

Maximum grindable diameter: 355 mm

CUTTING HEAD:

Manual positioning stroke: 310 mm

Rapid traverse: 50 mm

Maximum horizontal orientation: ± 45°

Maximum thickness of solid grinding wheel: 80 mm

Grinding wheel speed, two rotation speeds: 33 m/s; 1,235/1,450 rpm

Maximum grinding wheel diameter and bore: 500 × 127 mm

PROJECT PROGRESS:

Penetration angle: 90°

Maximum automatic reduction: 1.75 mm

Maximum manual reduction: 140 mm

Manual cutting speed in air: 0.1–10 mm/min

Flame-extinguishing strokes for plunge machining: s 0 ÷ 60

TABLE:

Manual adjustment with handwheel: 4 mm per revolution

Hydraulic feed speed: 0.1–5 m/min

Automatic min/max stroke: 4/1,500 mm

Maximum tilt of the tip axis relative to the horizontal plane: 7°

WORKPIECE HOLDER HEAD:

Rotational speed: 16–500 rpm

Spindle bore: 45 mm

Internal shank taper: Morse No. 4

Horizontal orientation: +90°

COUNTERPOINT:

Steering tube travel: 35 mm

Mounting cone: Morse No. 4

Weight: 4,800 kg

Year built: 1994

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
