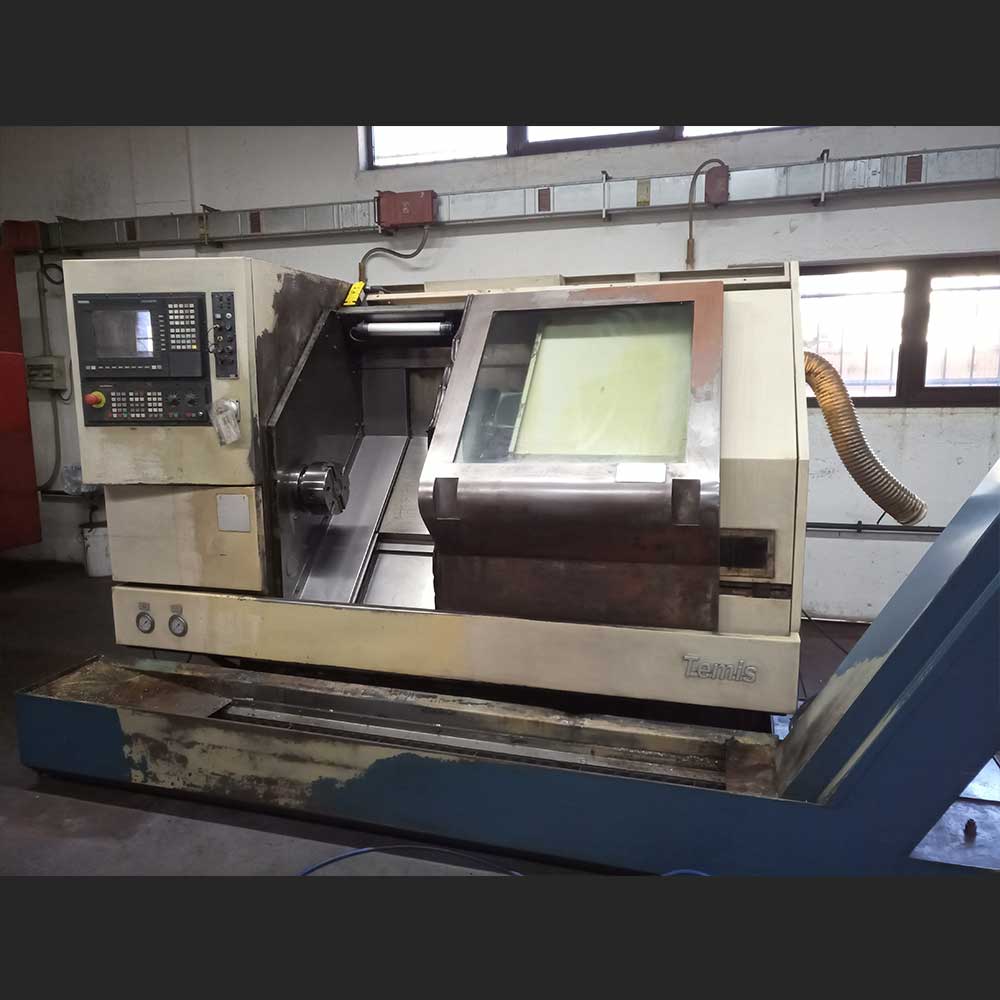

TECHNICAL SPECIFICATIONS:

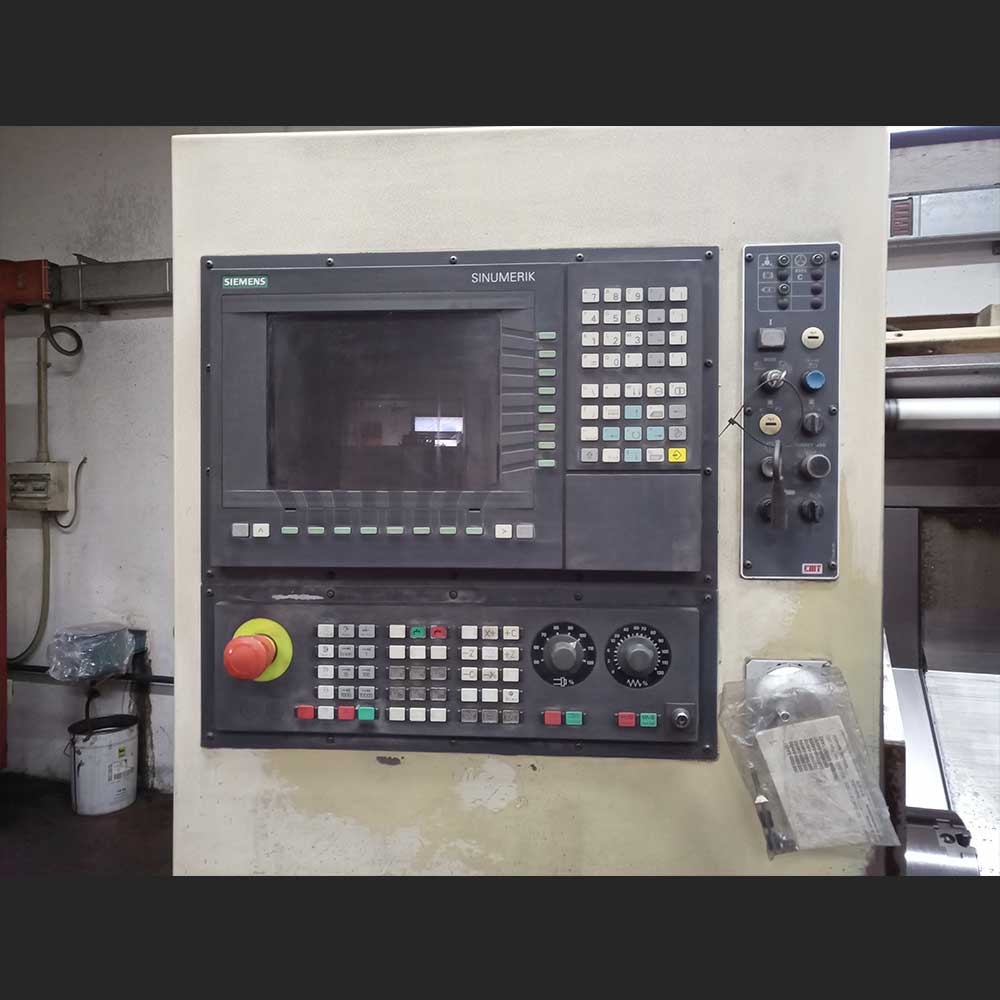

SIEMENS CNC

Nominal distance between the tips: 500 mm

Maximum diameter on the bench: 500 mm

Maximum diameter on the carriage: 250 mm

Z-axis travel: 500 mm

Controlled travel of the X-axis: 250 mm

Self-centering diameter: 210 mm

Spindle nose: ASA 5

Spindle bore: 63 mm

Standard spindle power S1/S6: 11/14 kW

Maximum spindle speed: 6,000 rpm

Rapid traverse in the Z-axis: 30 m/min

X-axis rapid traverse: 30 m/min

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
