Technical Specifications
TECHNICAL SPECIFICATIONS:
- Longitudinal stroke: 3900 mm
- Cross travel: 950 mm
- Vertical travel: 1400 mm
- Table working surface: 4300 x 1020 mm
- Maximum weight allowed on the board: 9,000 kg
- Feed rates: 0–3,000 mm per minute
- Rapid feed rate: 10,000 mm per minute
- Spindle taper: ISO 50 UNI 8487
- Spindle motor: 26 kW
- Speed range No. 4: 20–2000

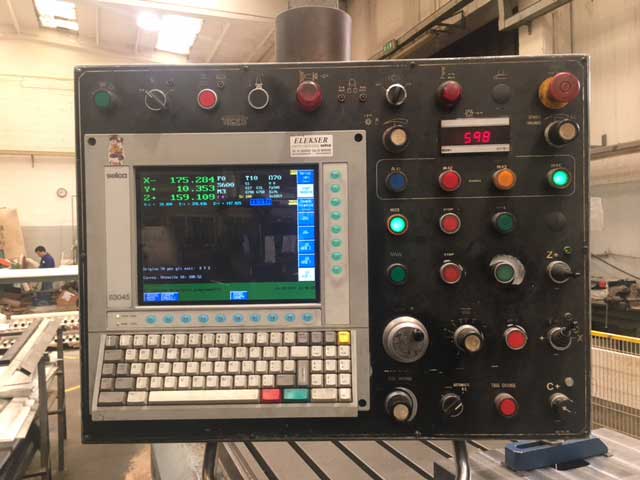

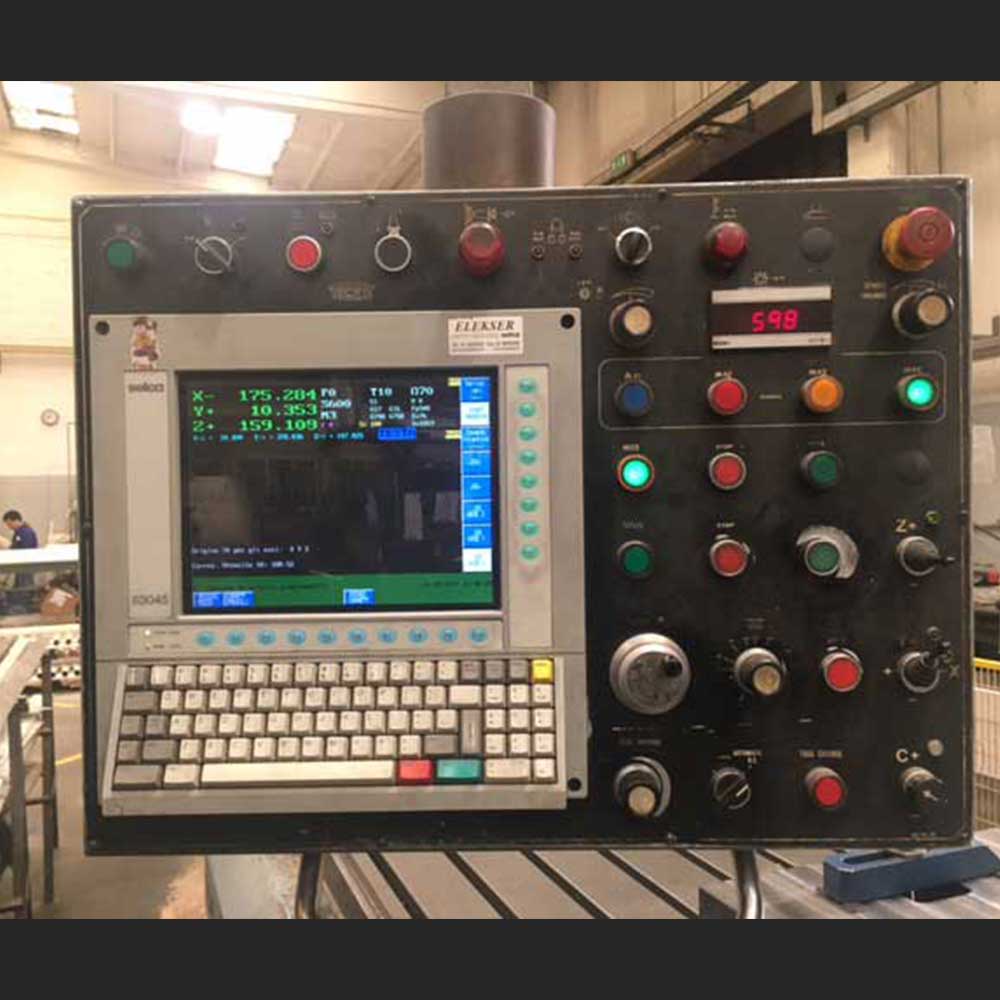

- CNC: SELCA 3045
- Net weight: 29,500 kg
- Year built: 1985
