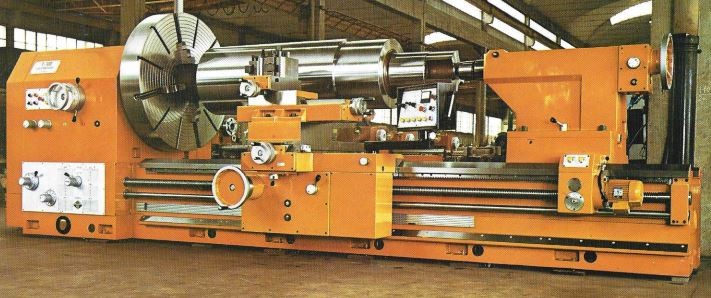

Specifiche tecniche
SPECIFICHE TECNICHE:
Height of centres: mm 450
Max swing over cross slide: mm 620
Max swing over bed: mm 920
Max swing in natural gap: mm 960
Width of induction hardened bedways: mm 570
Gap length: mm 460
In front of spindle nose: mm 430
SADDLE
Slides length over bed: mm 1.000
Cross slide traverse: mm 560
Top slide traverse: mm 340
SPINDLE
Cam lock nose size: 11’’
Bore diameter: mm 130
Number of speeds: 24
Speed range: rpm 5 – 1.000
Power of motor: HP. 25
Number of threads: n. 398
Number of feeds: n. 108
RAPID MOVEMENTS
Rapid longitudinal, cross and top slide movements: mm/1’ 2.500
Rapid longitudinal return movement: mm/1’ 5.000
TAILSTOCK
Outside diameter of spindle: mm 115
Morse taper: no. 6
Feed of spindle: mm 380
STEADIES
Capacity of fixed steady: mm 100 – 400
Capacity of travelling steady: mm 40 – 280
PERMITTED WEIGHT
Between centres, without steady: kg 3.500
Between centres, with steady: kg 4.500
Weight of the machine: kg 7.200
