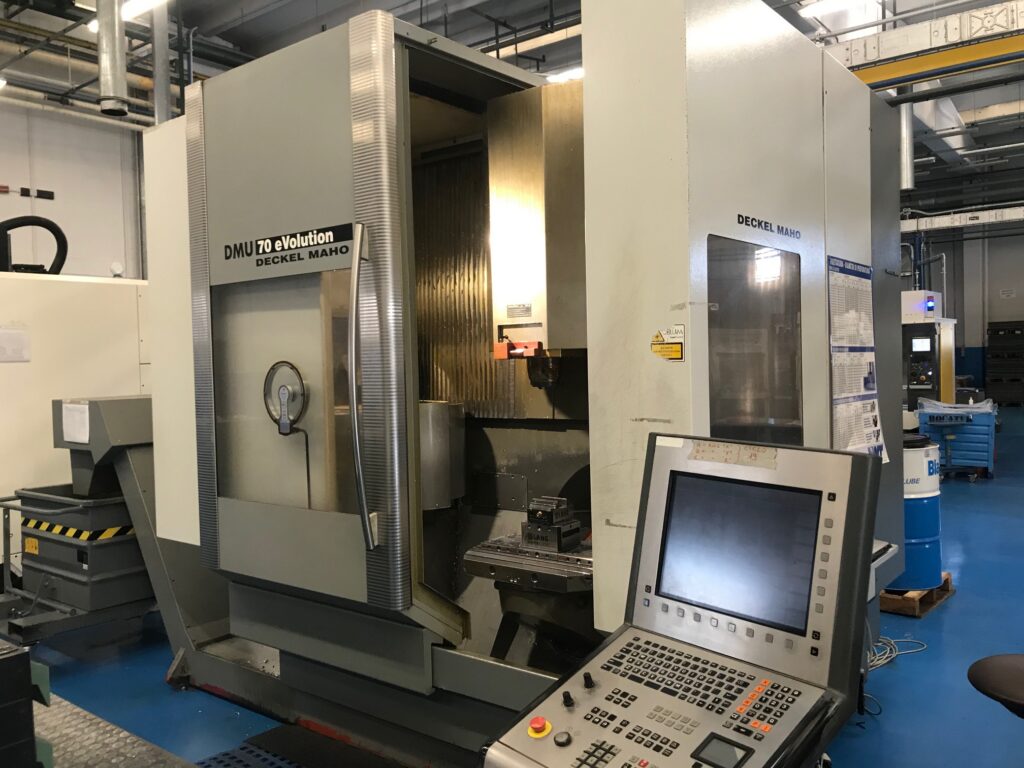

TECHNICAL DATA:

Heidenheim CNC 530

WORK AREA:

Longitudinal X: 750 mm

Transverse Y: 600 mm

Vertical Z: 520 mm

MAIN DRIVE:

AC Electrospindle 40%: 35 kW

Speed range without interruption: 20–18,000 rpm

Linear axis feed range: 20,000 mm/min

Rapid linear axis speed: 50,000 mm/min

Travel measurement system for linear axes: direct

Resolution: 0 .001 mm

TOOL CHANGER:

Tool magazine: 32 places

Workpiece chuck, tool holder: SK 40

CN Rotary Table with CN Swivel Axis:

Clamping surface: 700 x 500 mm

Centering hole: 30 H6 mm

No. of T-slots and their distance: 7/63 – 14 H7 mm

Swivel range: 0° – 180°

Max. table load: 350 kg

Machine equipped with:

• High pressure through the spindle
• Instruction manuals and CE declaration

Year of manufacture: 2002

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
