TECHNICAL DATA:

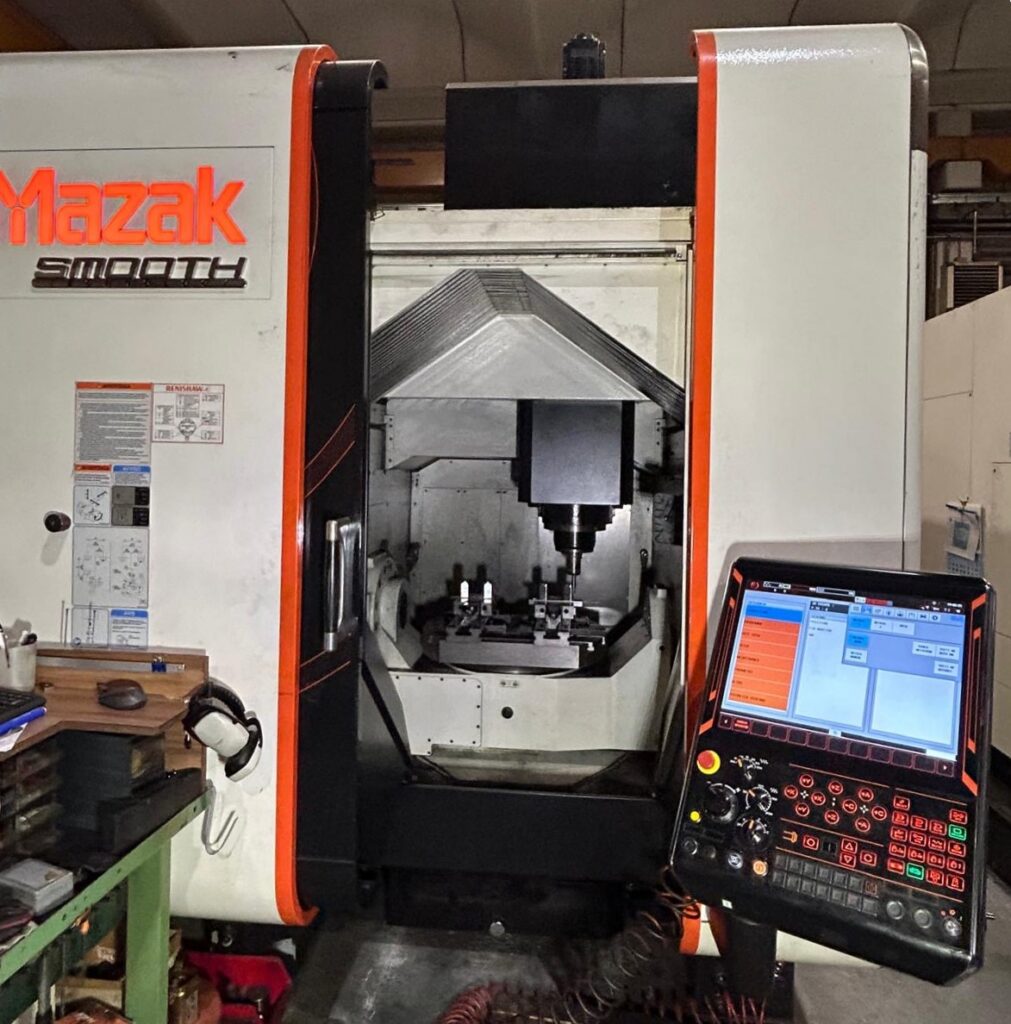

Mazatrol Smooth CNC

WORK AREA:

Maximum workable diameter: 850 mm

Maximum working height: 500 mm

X-axis travel: 630 mm

Y-axis travel: 1 ,100 mm

Z-axis travel: 600 mm

A-axis (tilting table indexing 0.0001°): from -120° to 30° (axis control)

C-axis (table rotation) indexing 0.0001°: ±360° (axis control)

TABLE:

Distance between the table and the spindle nose: 100–700 mm (horizontal table)

Clamping surface: 700 x 500 mm

Maximum workpiece size: 850 x 500 mm

Max. table load: 700 kg

SPINDLE:

Maximum rotation speed: 25 ,000 rpm

Spindle taper attachment type: HSK-A63

AXES:

Rapid feed rates on the X, Y, and Z axes: 60, 60, and 56 m/min

Rapid axes A, C: 18,000 °/min

Work feed rate X, Y, Z: 56 m/min

A, C-axis speed: 18,000 °/min

Number of simultaneously controlled axes: 5

Minimum indexing increment: 0.0001°

A-axis indexing time: 0 .55 sec/90°

TOOL CHANGER:

Tool magazine: 30 places

Maximum tool diameter, length, and weight: 90 mm / 360 mm / 8 kg

Maximum diameter when adjacent seats are empty: 130 mm

Type of tool position selection: random

Tool change time (chip-to-chip): 3 .6 sec.

DIMENSIONS

Height: 3457 mm

Width: 2400 mm

Length: 4295 mm

Machine weight: 15 ,000 kg

Machine equipped with:

• Instruction manuals and CE declaration

Year of manufacture: 2019
