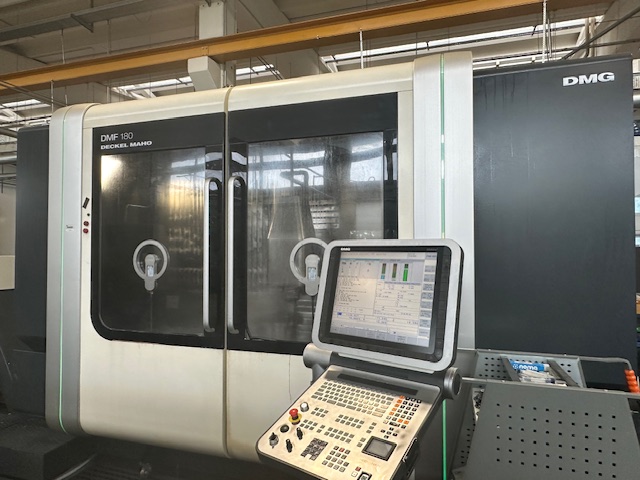

TECHNICAL DATA:

Heidenhain iTNC 530 CNC

FIELD OF WORK

Length X: 1,800 mm

Transverse Y: 700 mm

Vertical Z: 700 mm

B-axis min/max: +/- 110°

C-axis: nx 360°

SPINDLE:

Rotation speed: 20–14,000 rpm

Power (100%/40%): 15/19.8 kW

Tool holder cone: SK 40

AXIS FEEDS:

X, Y, Z-axis feed rates: 20,000 mm/min

Rapid feed rate (X, Y, Z): 40 m/min

TOOL CHANGE:

Number of warehouse spaces: 30

Maximum tool weight: 6 kg

Maximum tool diameter: 80 mm

Maximum diameter with adjacent seats available: 130 mm

Maximum tool length: 300 mm

FIXED TABLE:

Table dimensions: 2,100 x 700 mm

Permitted load: 1,500 kg

INTEGRATED ROTARY TABLE (C AXIS):

Table diameter: 750 mm

Permitted load: 500 kg

INCLUDED ACCESSORIES:

• High pressure through the spindle
• Chip conveyor
• Remote Electronic Handwheel
• Instruction manuals and CE declaration

Year of construction: 2009

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
