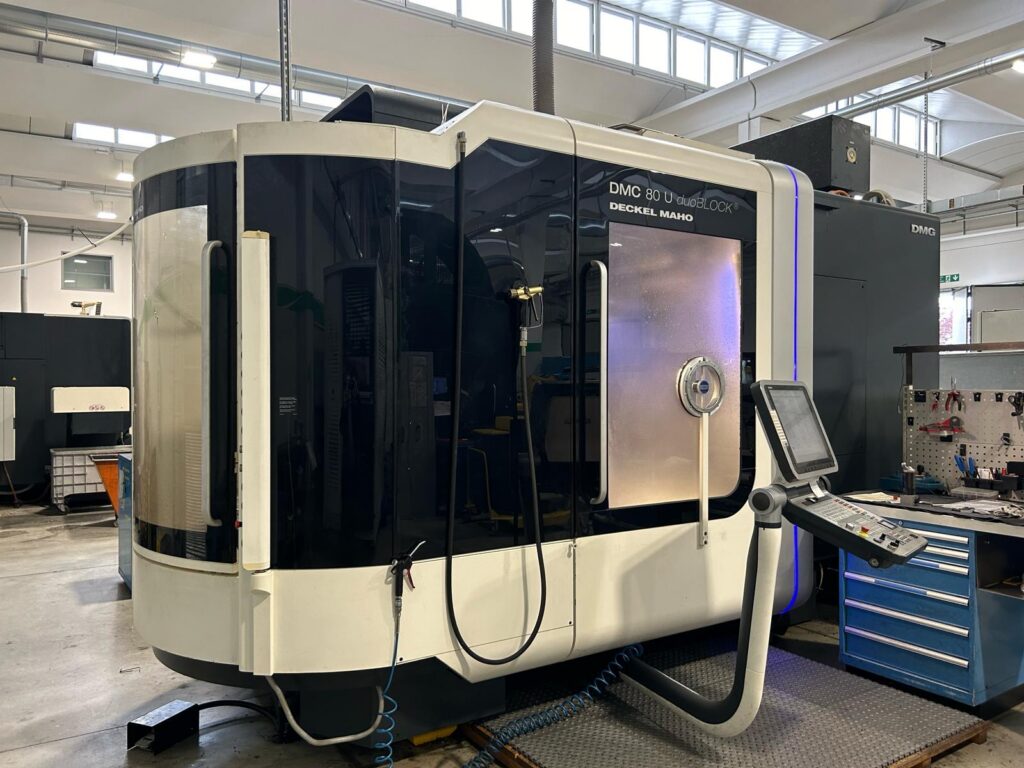

TECHNICAL SPECIFICATIONS:

Heidenhain iTNC 530 HSCI CNC

TRAVELS:

X-axis travel: 800 mm

Y-axis travel: 1,050 mm

Z-axis travel: 800 mm

B-axis travel: 180°

C-axis travel: 360°

ADVANCEMENTS:

Rapid feed speed in the X, Y, and Z axes: 40 m/min

Acceleration along the X, Y, and Z axes: 7^m/s², 6.5 m/s², 6.5 m/s²

ELECTRO SPINDLE:

Electro-spindle rotation speed: 18,000 rpm

Tool attachment cone: ISO 40

Power: 35 kW

Torque: 130 Nm

TABLE:

Mounting surface: 800 x 630 mm

Maximum capacity: 1,000 kg

Machine equipped with:

• 240-position tool changer
• Heidenhain TS640 workpiece probe
• Checking for tool breakage in the tool changer
• quickSET 3D Setup
• High pressure through the spindle: 40 bar
• Tank with a paper filter
• Integrated fume extractor
• Tool Loading/Unloading Side Control Panel
• Power Failure Protection Package
• FASTEMS Automation Readiness
• Instruction manuals and CE declaration

Year of construction: 2011

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
