TECHNICAL SPECIFICATIONS:

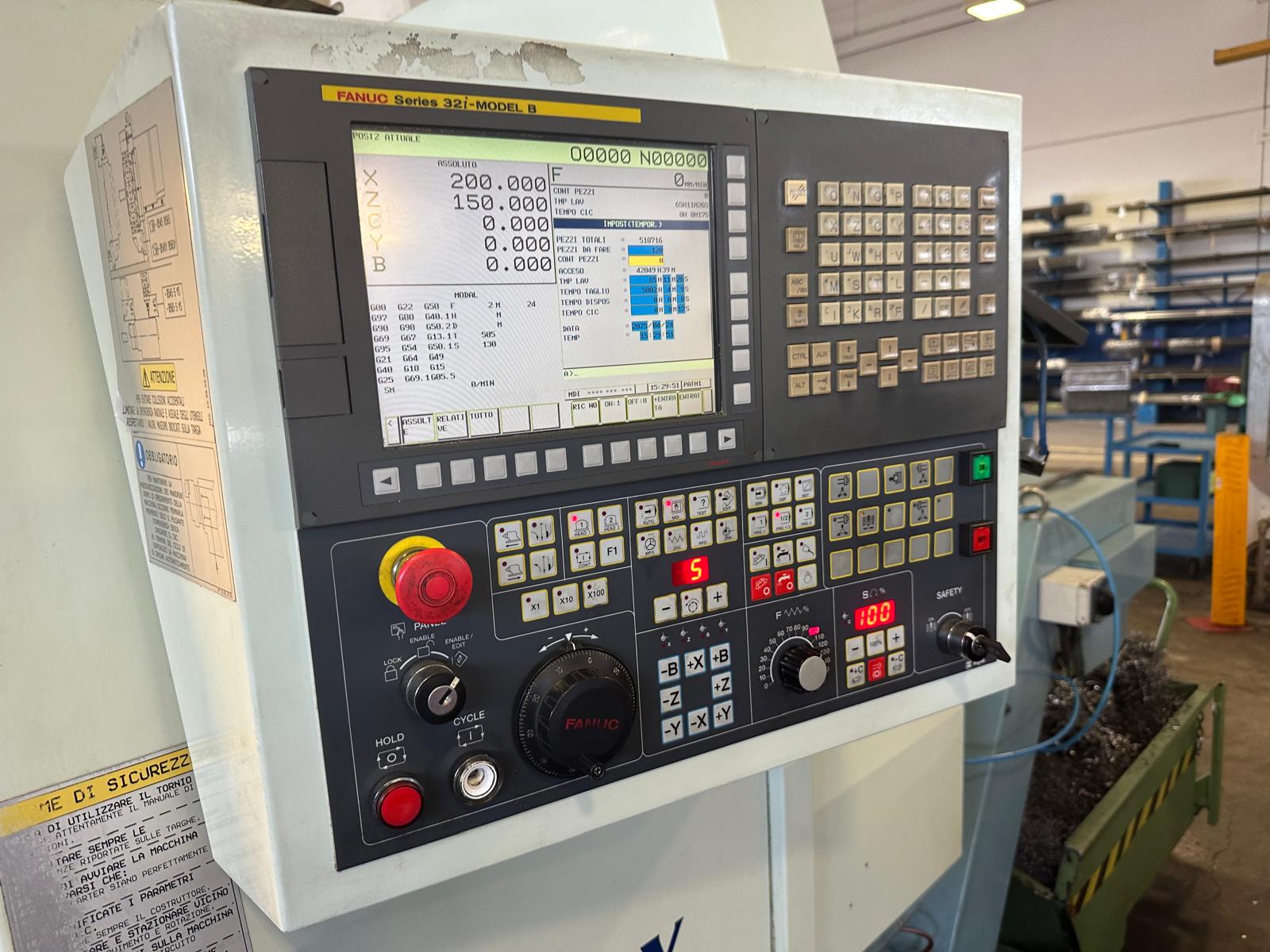

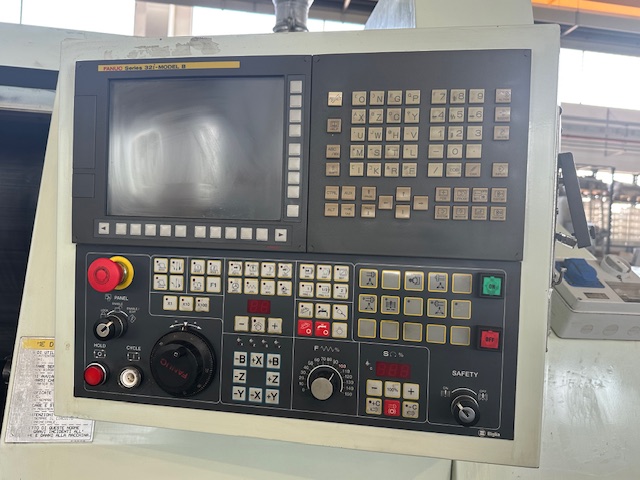

Fanuc 32i CNC – Model B

WORKING RANGE
Max. machinable bar diameter: 45 mm
Max. machinable diameter from re-clamping: 220 mm
Max. machinable length: 560 mm
Max. rotating diameter: 580 mm

MAIN SPINDLE
Max rotational speed: 5,000
rpm Spindle nose: ASA 5″
Spindle bore: mm 52
Bearing inner diameter: mm 90

TAILSTOCK
Tailstock taper: CM 5 with CM4 reduction
B-axis rapid traverse: 15 m/min

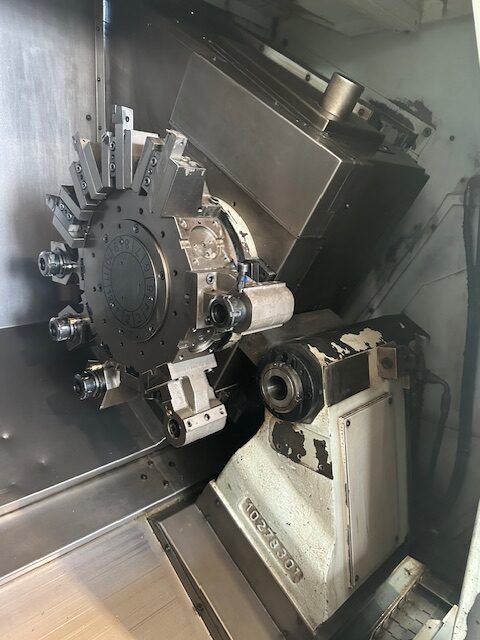

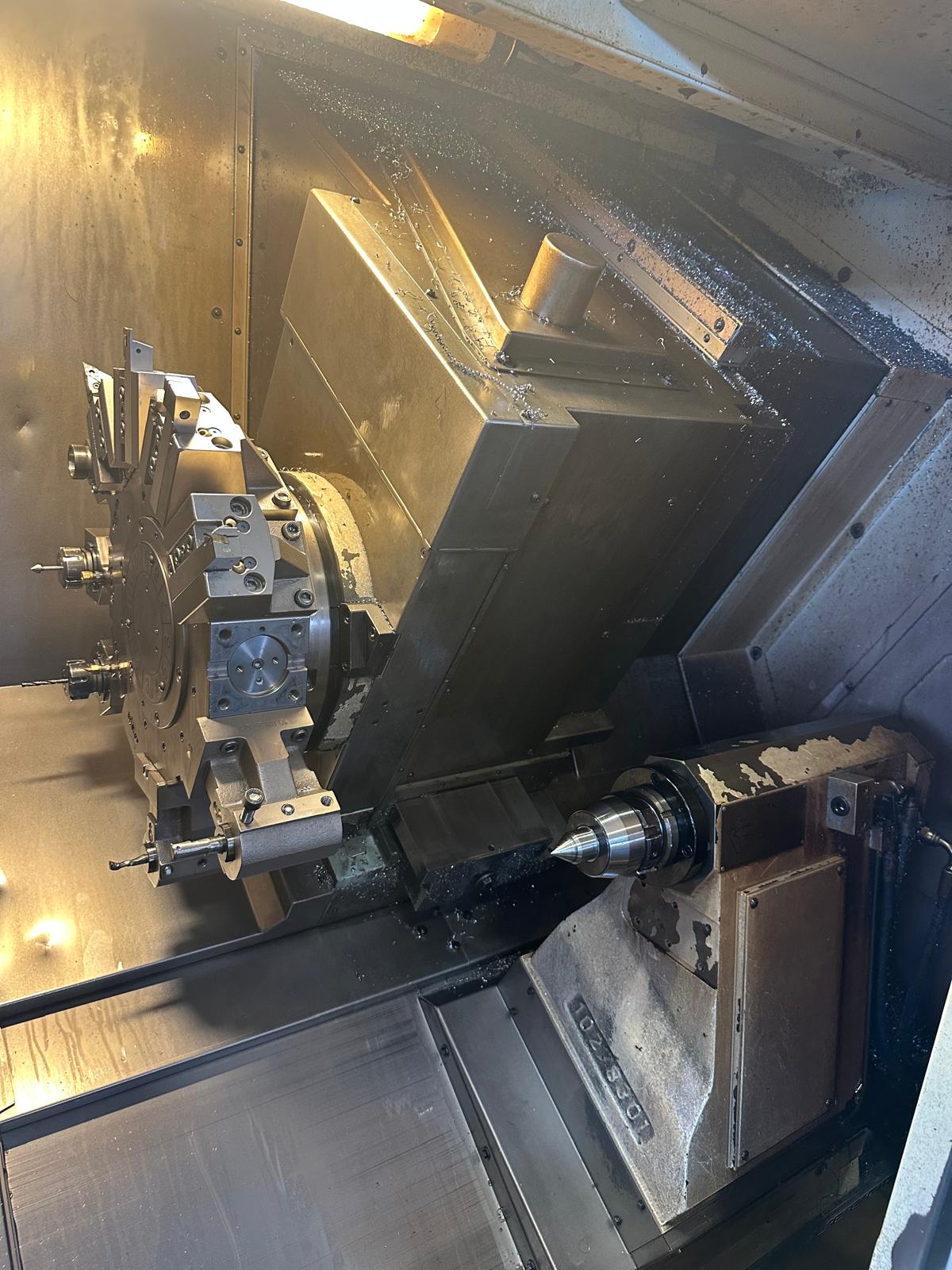

TURRET
Number of positions: N° 12
Tool shank for exterior/interior: mm 20 x 20 – 25 x 25 – Ø32
Rotation time (1 pos): sec 0.15

LIVE TOOLS
Number of positions: N° 12
Max rotation speed: rpm 4,000
Motor power: kW 3.7
Motor torque: Nm 47

AXIS C
Minimum programmable value: 0.001°
Maximum rapid traverse speed: 100 rpm

AXES
X-axis travel: 170 mm
Z-axis travel: 560 mm
Y-axis travel: +55 mm / – 50
B-axis travel: 490 mm
X-axis rapid traverse: 20 m/min
Z-axis rapid traverse: 24 m/min
Y-axis rapid traverse: 6 m/min

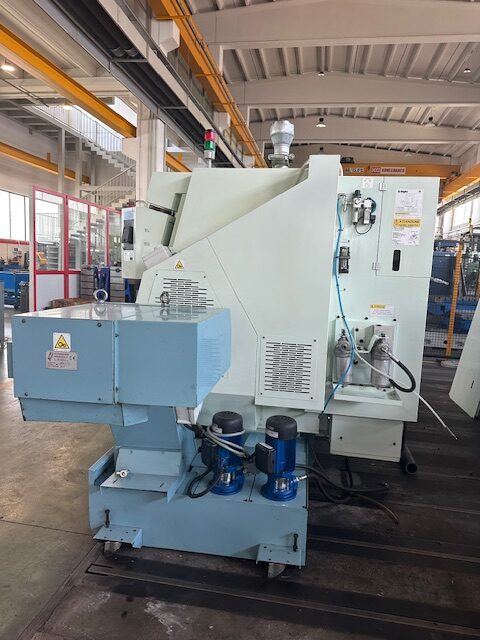

REFRIGERANT
Tank capacity: l 250
Pump flow rate: l/min 230
Pump motor power: Kw 1,5

DIMENSIONS – WEIGHT
Overall dimensions with chip conveyor: 4,240 x 2,000 x 2,020 (h) mm
Spindle center height: 1,000 mm
Weight with chip conveyor: 4,900 kg

Machine accessories:

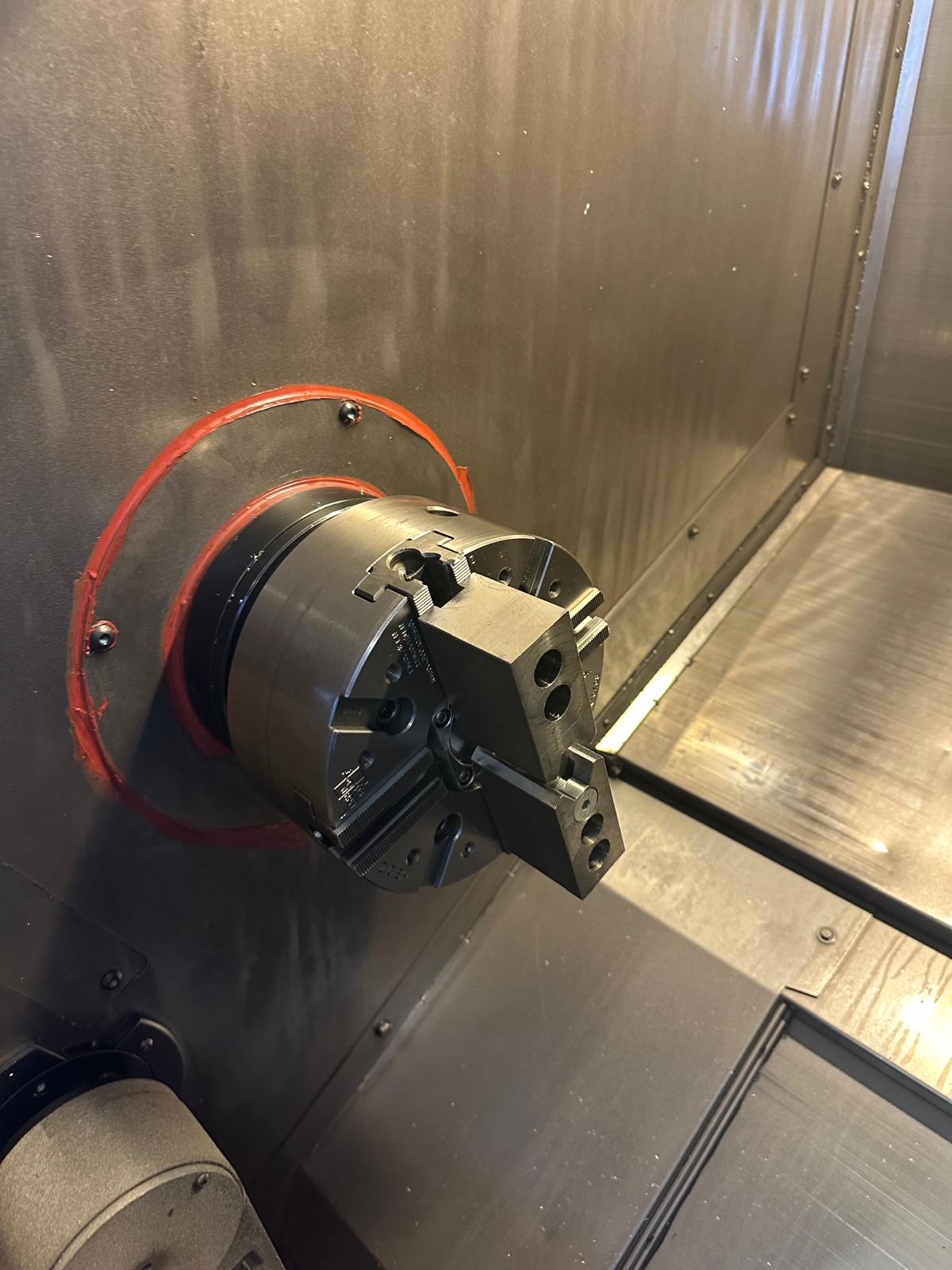

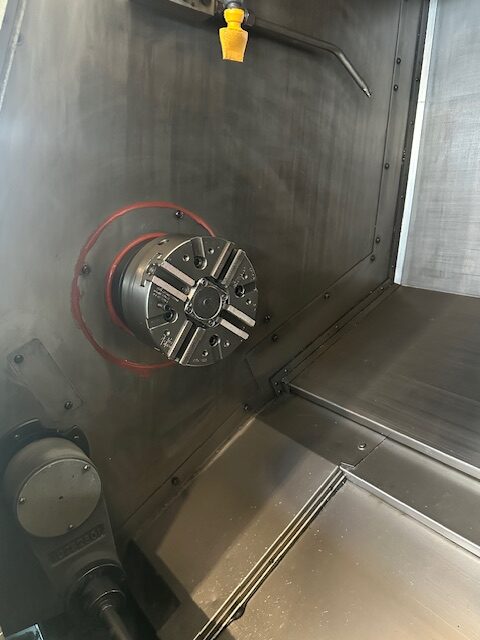

• Autoblock 3-jaw self-centering chuck, 210 mm diameter
• Various motorized modules (axial + radial)
• User and maintenance manuals and EC Declaration of Conformity

Year built: 2012
