TECHNICAL SPECIFICATIONS:

Fanuc 18i CNC – T
WORKING RANGE
Max. diam. Machinable bar length: 80 mm
Max. diameter Workable length from the face: 410 mm
Max. workable length: 670 mm
Max. rotating diameter: 600 mm
MAIN SPINDLE
Max rotational speed: rpm 3,500
Spindle nose: ASA 8 ”
Spindle bore: mm 91
Bearing inner diameter: mm 140
Motor power: kW 22
Motor torque: Nm 539

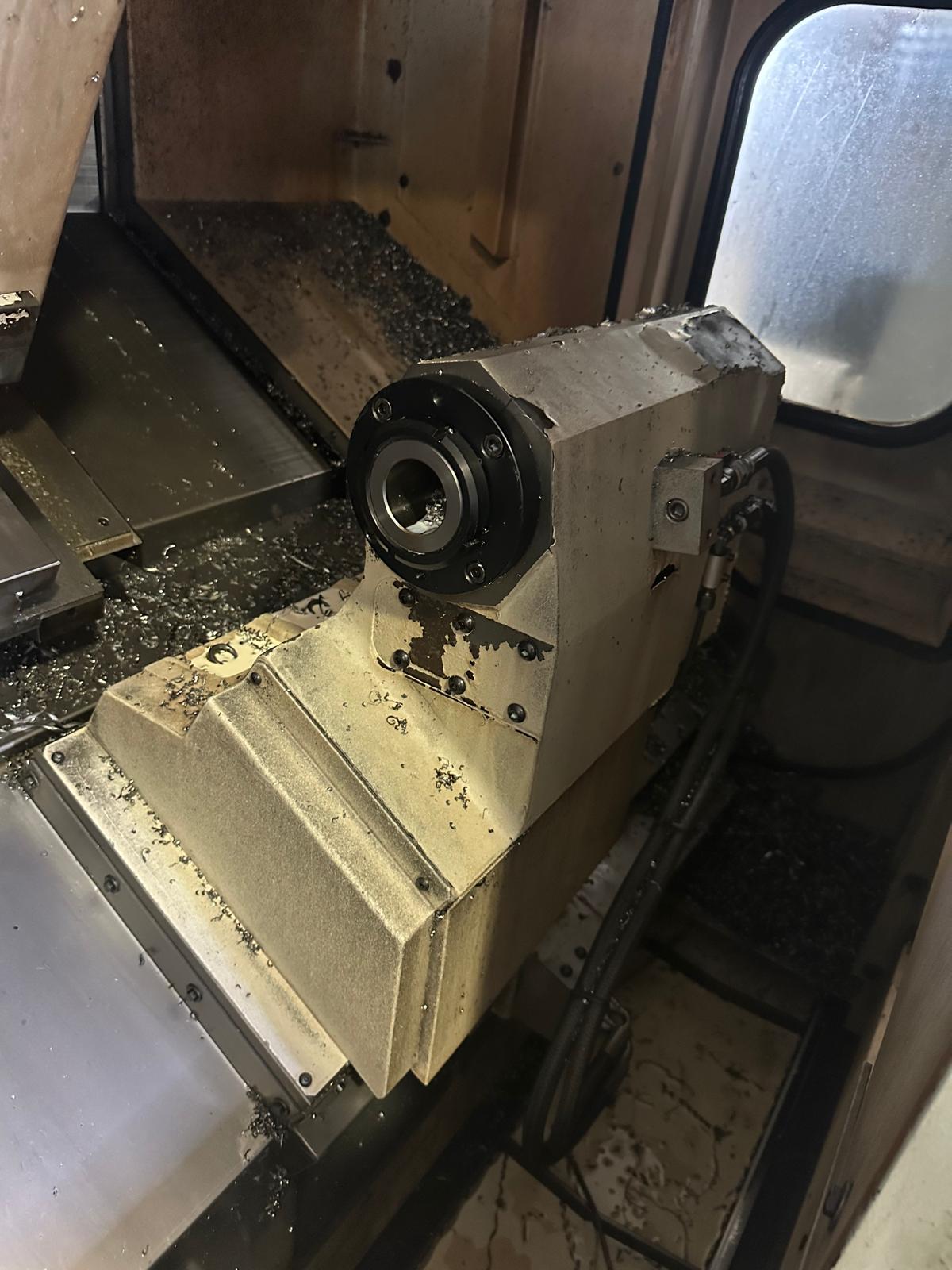

TAILSTOCK
Tailstock taper: CM 5 with CM4 reduction
Automatic B-axis positioning: 660 mm
B-axis rapid traverse: 15 m/min

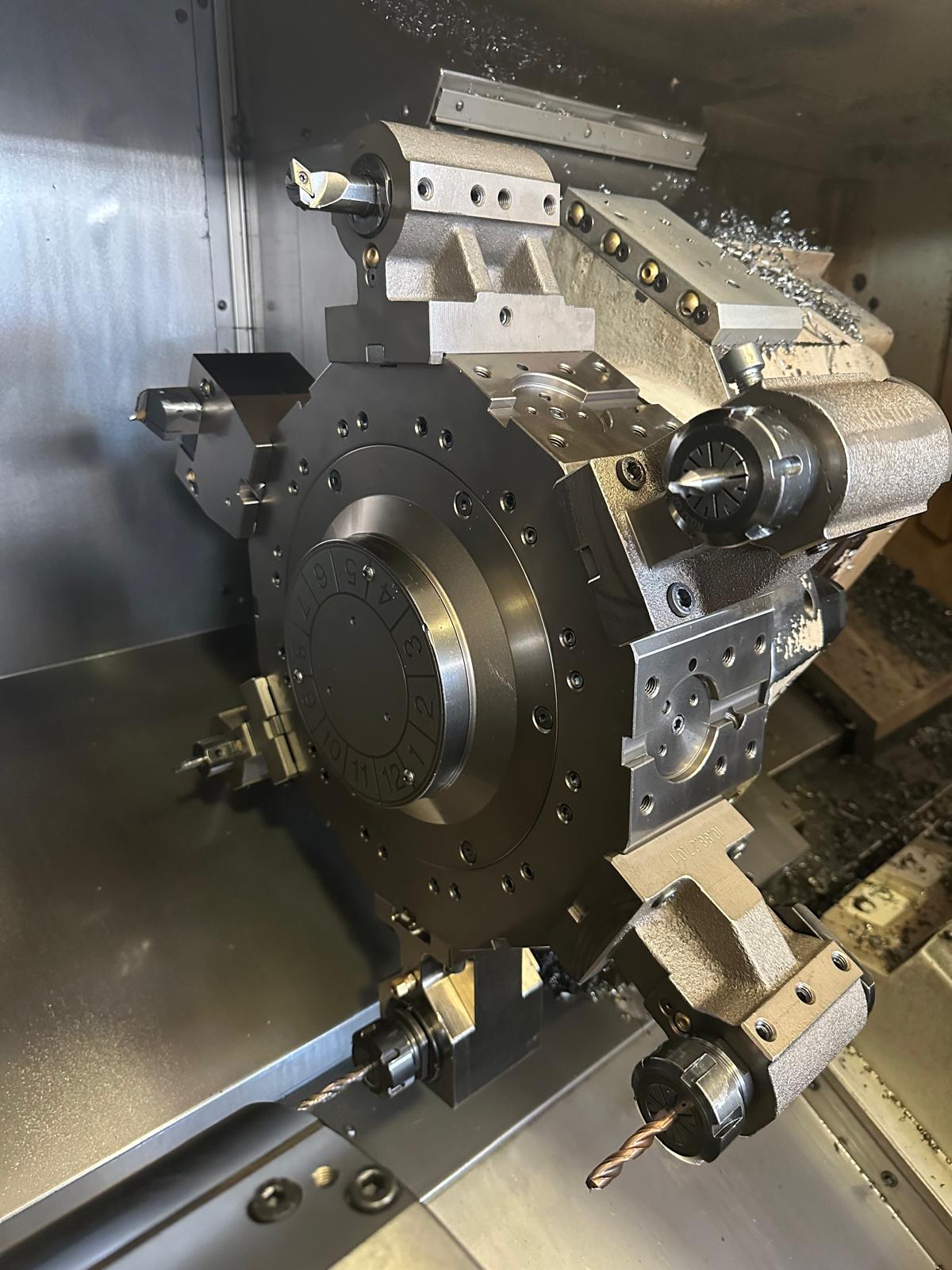

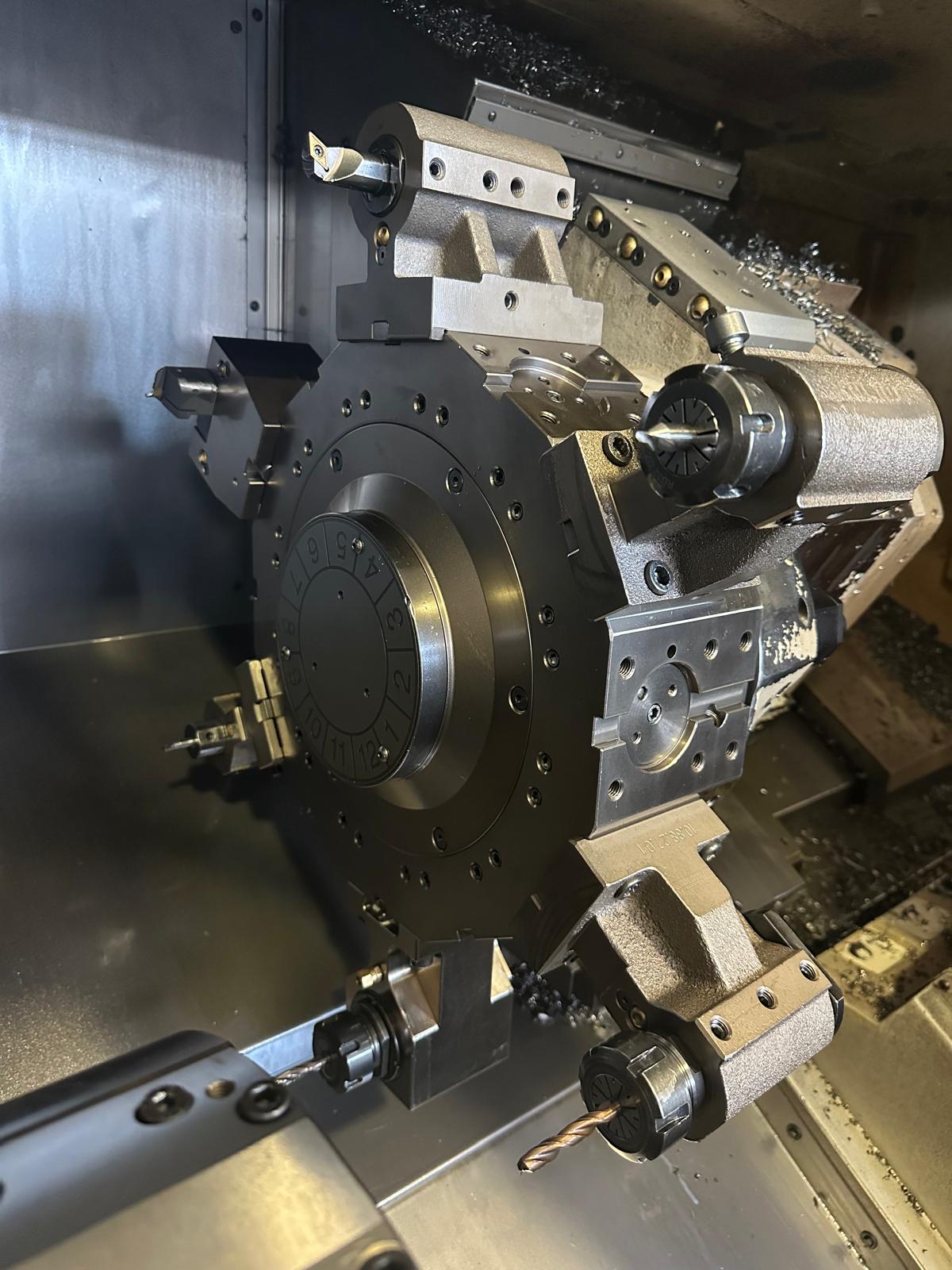

TURRET
Number of positions: N° 12
Tool shank for exterior/interior: mm 20 x 20 – 25 x 25 – Ø32-40-50
Rotation time (1 pos): sec 0,15
LIVE TOOLS
Number of positions: N° 12
Max rotation speed: rpm 4,000
Motor power: kW 3.7
Engine torque: Nm 70
AXIS C
Minimum programmable value: 0.001°
Maximum rapid traverse speed: 100 rpm
AXES
X-axis travel: 255 mm
Z-axis travel: 670 mm
Y-axis travel: 110 mm (+60 / –50)
X-axis rapid traverse: 20 m/min
Z-axis rapid traverse: 24 m/min
Y-axis rapid traverse: 7.5 m/min
REFRIGERANT
Tank capacity: l 250
Pump flow rate: l/min 120
Pump motor power: Kw 0.75
DIMENSIONS – WEIGHT
Overall dimensions with chip conveyor: 4,450 x 1,900 x 2,100 h mm
Spindle center height: 1,060 mm
Weight with chip conveyor: 6,300 kg
Machine equipment:

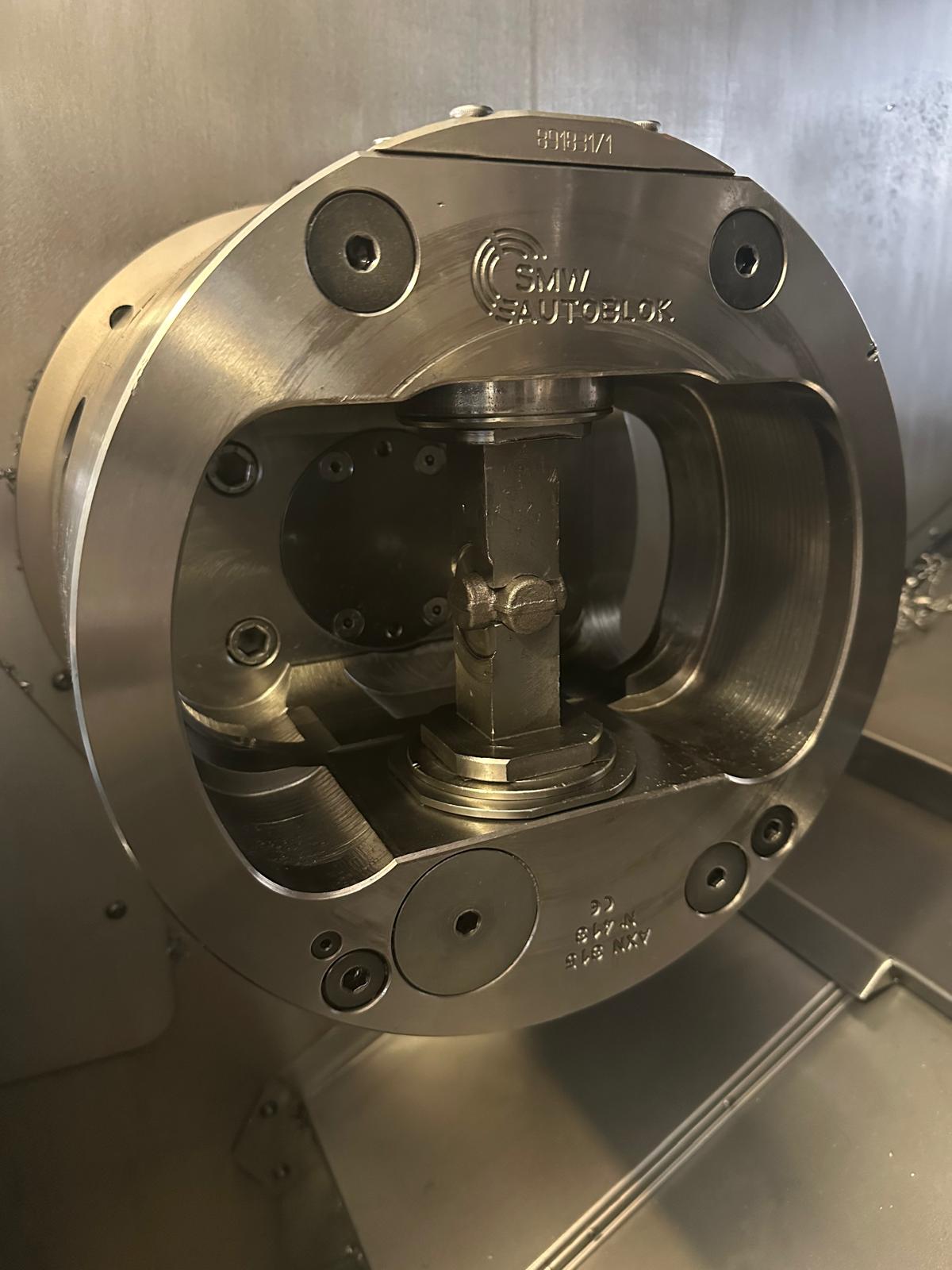

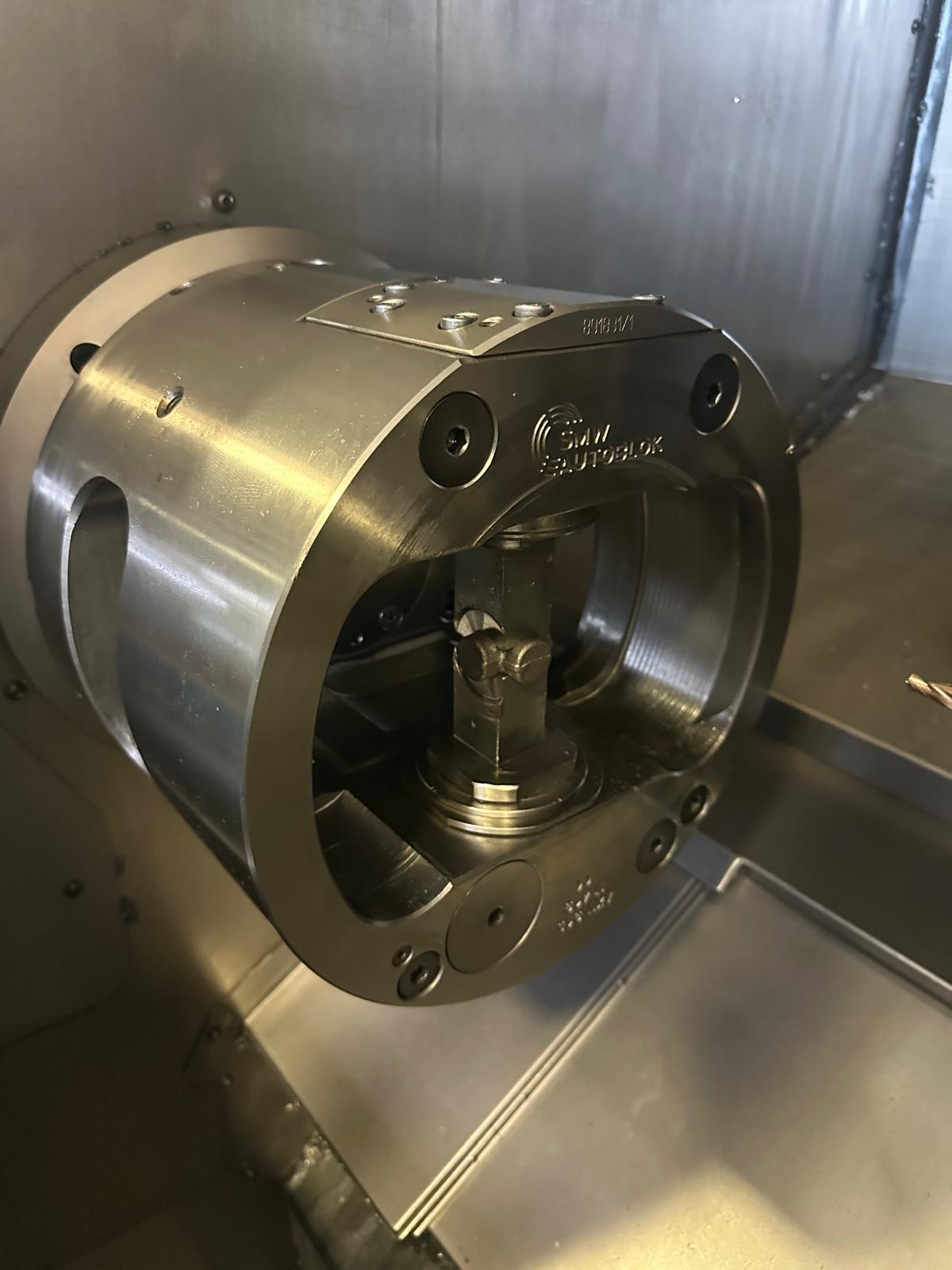

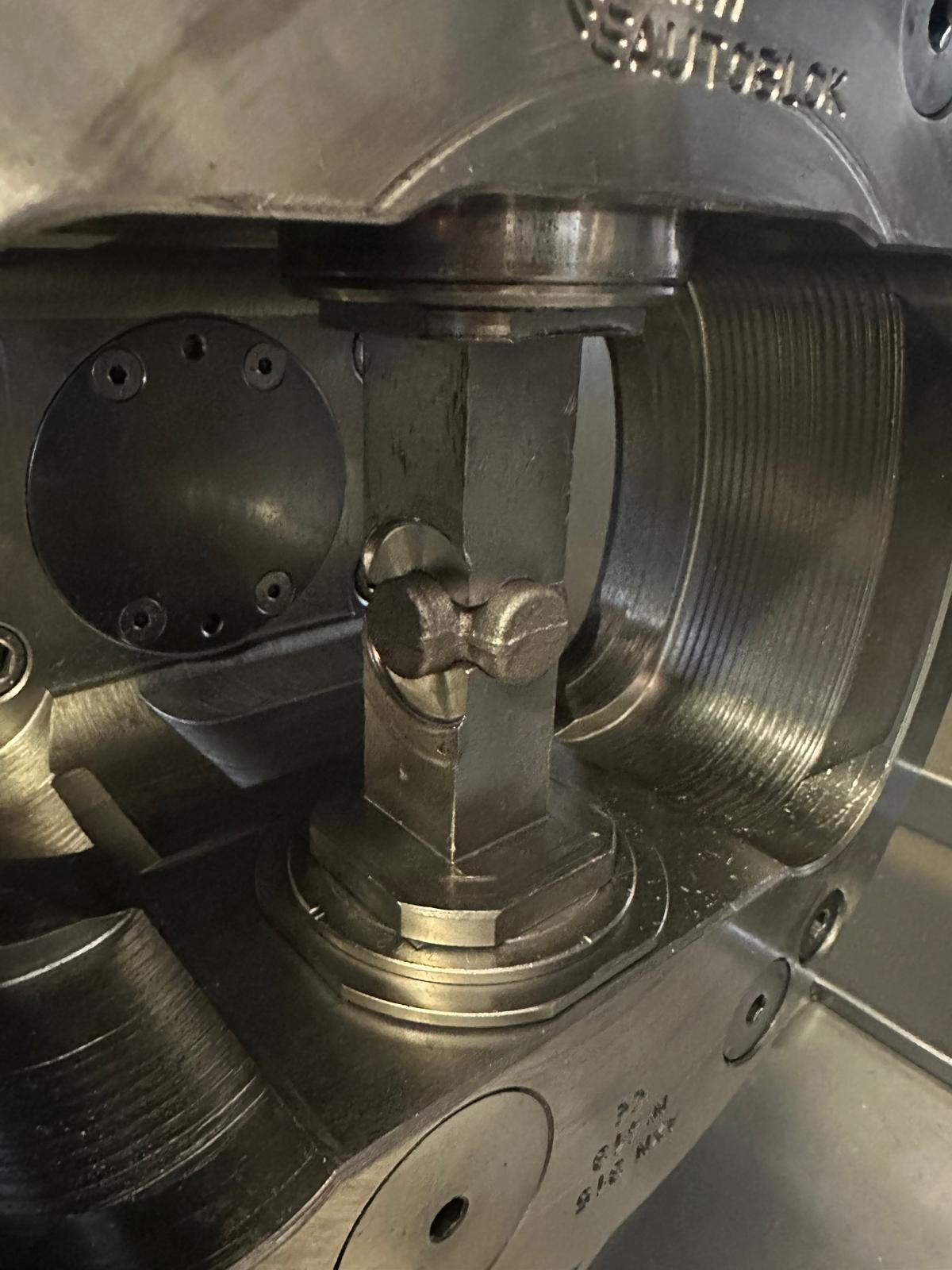

• Autoblock AXN-type 315 mm self-centering hydraulic divider
• Various motorized tool holders (radial and axial)
• User and maintenance manuals and EC Declaration of Conformity

Year built: 2013

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
