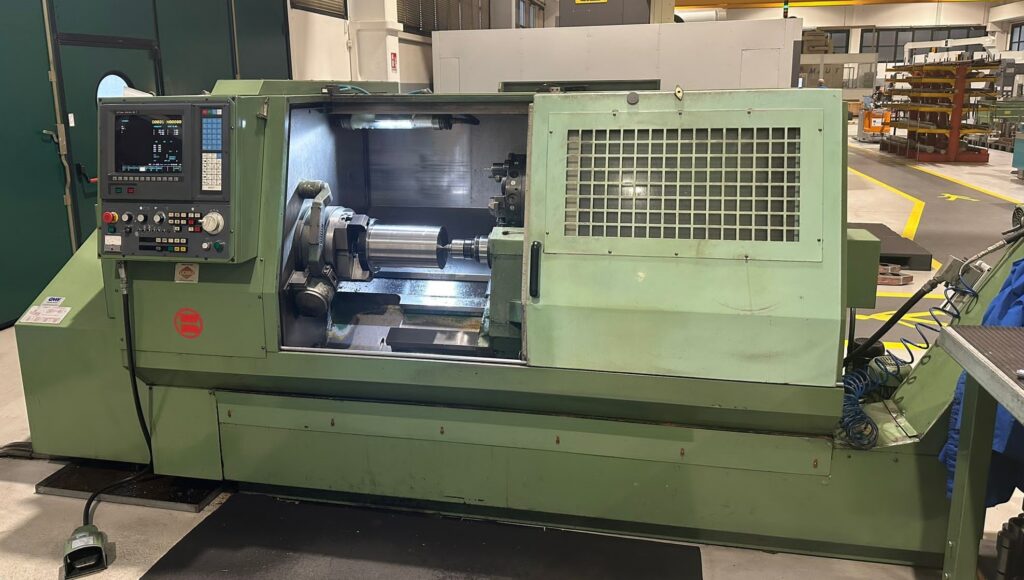

TECHNICAL DATA:

Fanuc Series 15 CNC – T

AREAS OF EXPERTISE:

Maximum turning diameter: 355 mm

Maximum rotating diameter: 560 mm

Maximum turning length: 1,045 mm

Distance between the chuck and the tailstock: 1,300 mm

SPINDLE

Bar passage diameter: 70 mm

Front bearing inner diameter: 130 mm

Spindle nose: ASA 8″

2 spindle speed ranges: 20–810 rpm , 60–3,000 rpm

AC spindle motor power: 22–26 kW (50%)

AXIS DRIVE

Transverse slide travel (X-axis): 225 mm

X-axis rapid traverse: 12 m/min

Z-axis rapid traverse: 12 m/min

X-axis ball screw diameter: 32 mm

Z-axis ball screw diameter: 40 mm

X-axis motor torque: 5.9 Nm

Z-axis motor torque: 11.8 Nm

TAILSTOCK:

Quill travel: 150 mm

Quill diameter: 115 mm

Quill cones: 5

Maximum quill thrust: 1,000 kg

TURRET:

Number of stations: 12

Number of motorized stations: 6

Square rod cross-section: 25 x 25 mm

Rod diameter (boring tool): 32–40 mm

Rotation time (1 position – 6 positions): 0.55 – 1.35 seconds

DIMENSIONS AND WEIGHT:

Dimensions: 457 x 198 x 170 cm (h)

Weight: 6,400 kg

Machine equipped with:

• 19 external turning tool holders
• 3 front-mounted motors
• 1 radial motorized
• 1 quick-release front motorized module with pliers holder
• Various boring bar holders

Year of manufacture: 1992

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
