Technical Specifications
TECHNICAL SPECIFICATIONS:

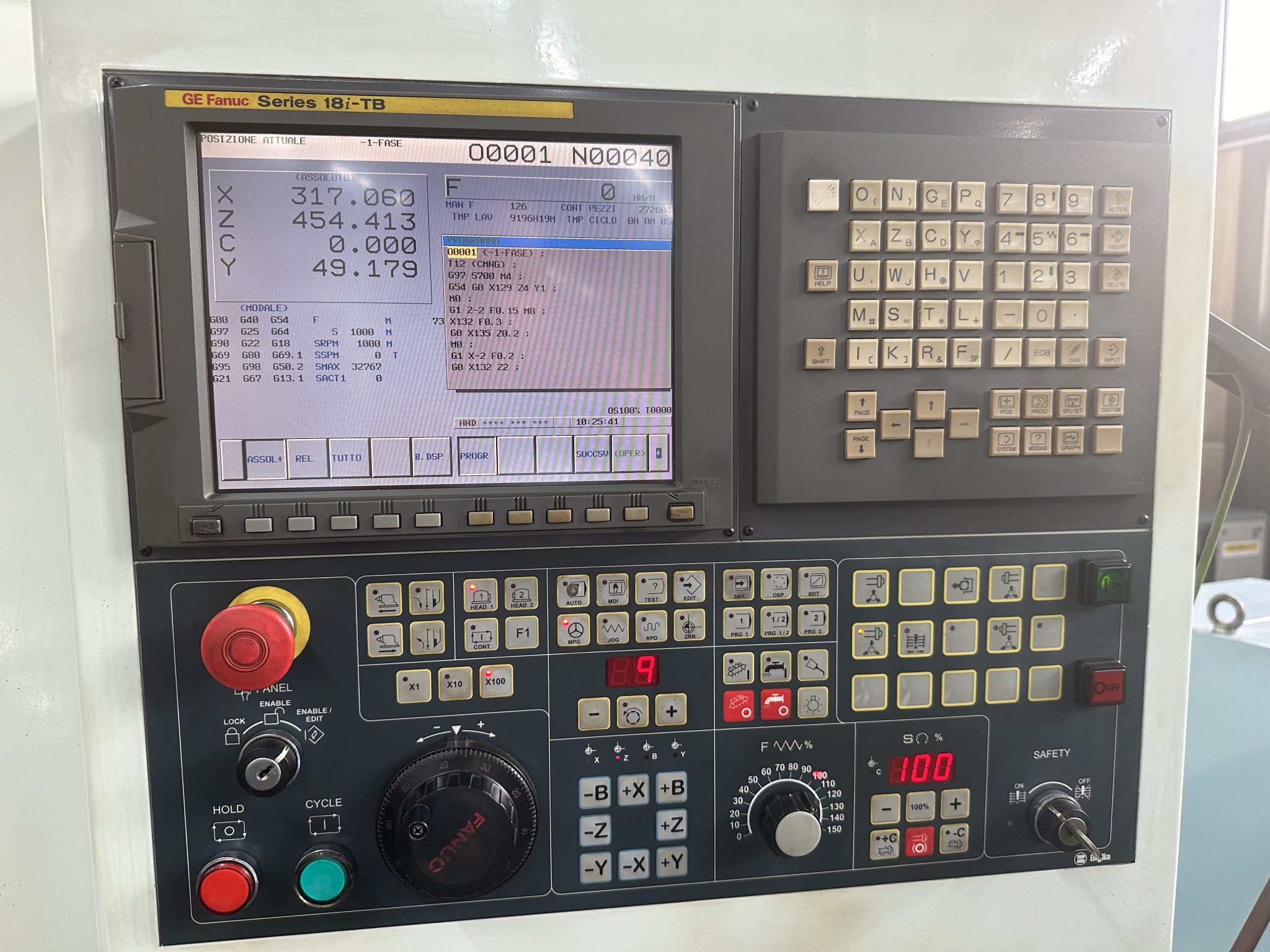

Fanuc 18i CNC – TB
WORK CAPACITY:
Maximum workable bar diameter: 70 mm
Maximum machinable diameter for rework: 320 mm
Maximum workable length: 550 mm
Maximum rotating diameter: 520 mm
CHUCK:
Variable speed range: 40–4,000 rpm
Spindle nose: ASA 6’’
Spindle bore: 80 mm
Inner diameter of front bearing: 110 mm
Self-centering diameter: 250 mm
Engine power: 22–26 kW (50%)
TORRETTA:
Number of positions: 12
Type: bidirectional
Tool shank for outdoor use: 25 x 25 mm
Reamer shank: Ø 40
Rotation time (1 position): 0.15 sec
Maximum rotational speed of powered tools: 3,000 rpm
Engine power: 3.7 kW
CHECKED AXIS “C”:
Type: CS (direct)
Minimum programmable value: 0 .001
High speed: 100 rpm
ASSI:
X-axis travel: 210 mm
Z-axis travel: 550 mm
Y-axis travel: +60/-60 mm
X-axis rapid traverse: 12 m/min
Z-axis rapid traverse: 20 m/min
Y-axis rapid traverse: 6 m/min
HYDRAULIC TAILSTOCK:
Automatic hub travel: 100 mm
Hub diameter: 85 mm
Tool holder cone: CM 4
DIMENSIONS:
Overall dimensions with chip conveyor: 4,000 x 1,950 x 2,200 mm (h)
Weight: 4,900 kg
Machine comes complete with:
- Fixed Tool Holder Set
- Set of Clamps and Grips
- 2 axial motorized modules
- 2 radial motorized modules
- Chip Conveyor
- Instruction Manuals and EC Declaration
Year built: 2004
