TECHNICAL SPECIFICATIONS:

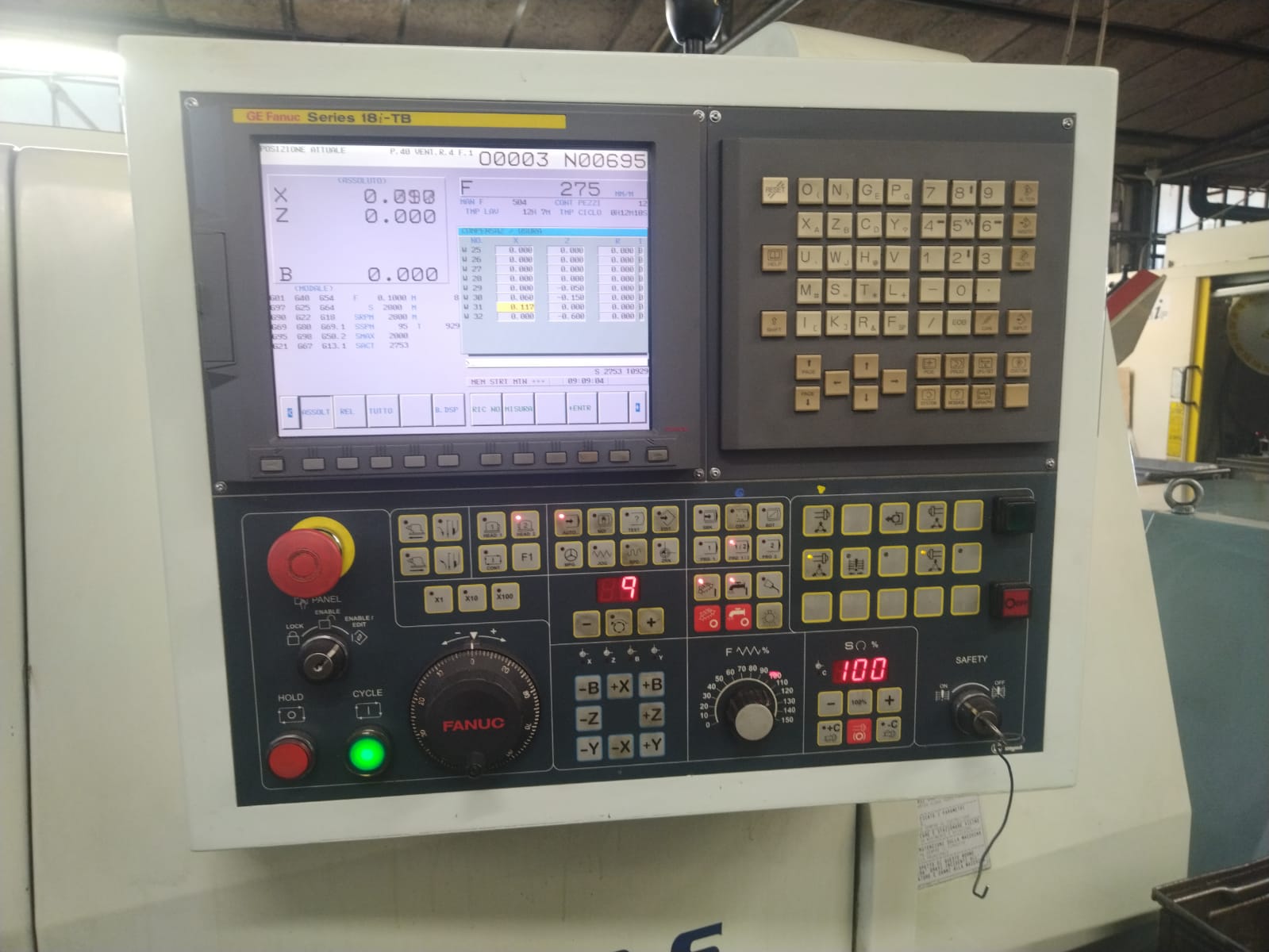

Fanuc 18i-TB CNC

Year built: 2010

WORKING
CAPACITYMax. diameter that can be machined from bar: mm 65
Max. diameter that can be machined from recovery: mm 296
Max. length that can be machined: mm 550
Max. rotating diameter: mm 580

MAIN SPINDLE
Max. rotational speed: 4,000 rpm
Spindle nose: ASA 6”
Spindle bore: 67 mm
Inner diameter of bearings: 110 mm
Motor power: 22 kW

COUNTERHEAD
Max. rotational speed: rpm 4,000
Spindle nose: ASA 5″
Spindle bore: mm45
Bearing inner diameter: mm 80
Self-centering diameter: mm 165
Motor power: kW 7.5

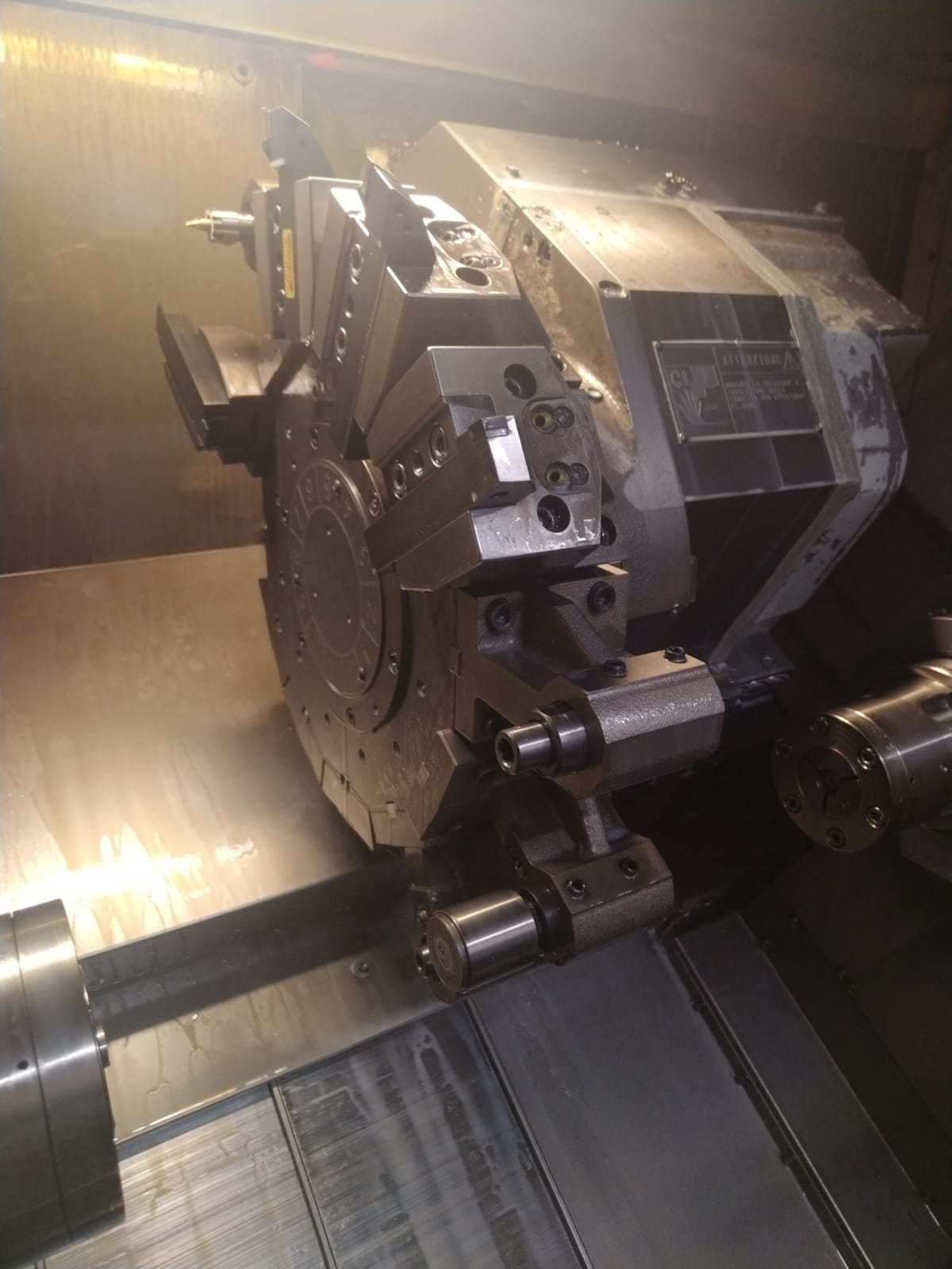

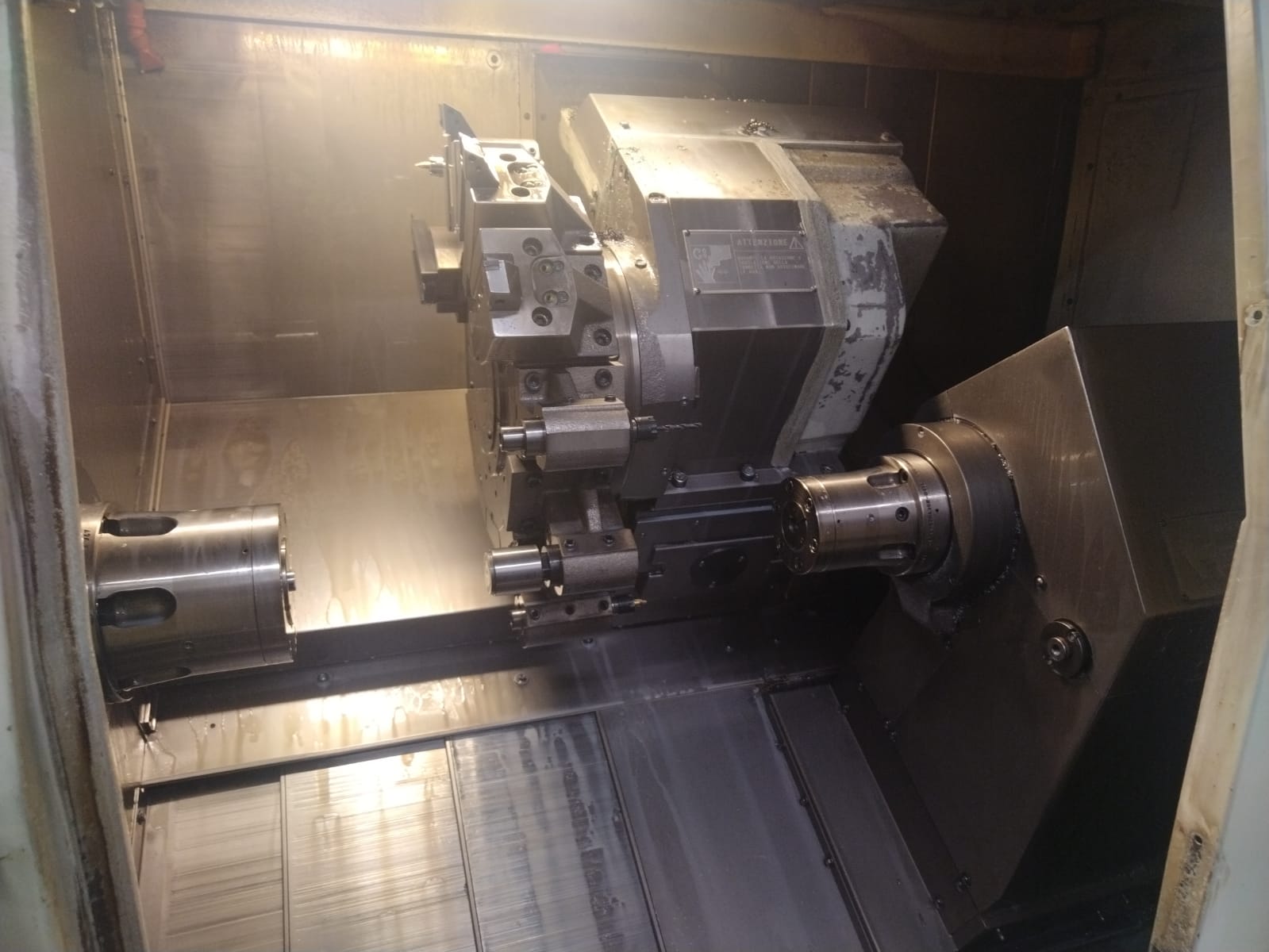

TURRET
Number of positions: n. 12
Rotation time (1 pos): 0.15 sec

AXES
X-axis travel: 173 mm
Z-axis travel: 550 mm
B-axis travel: 495 mm
X-axis rapid traverse: 20 m/min
Z-axis rapid traverse: 20 m/min
B-axis rapid traverse: 24 m/min

REFRIGERANT
Tank capacity: l 250
Pump flow rate: l/min 230
Pump motor power: kW 1.5

DIMENSIONS – WEIGHT
Overall dimensions with chip conveyor: 4,230 x 1,980 x 1,900 mm
Spindle center height: 1,000 mm
Weight with chip conveyor: 5,050 kg

Machine comes complete with:
• 12 fixed tool holders
• Collet holders on the main spindle and counter spindle
• Chip conveyor

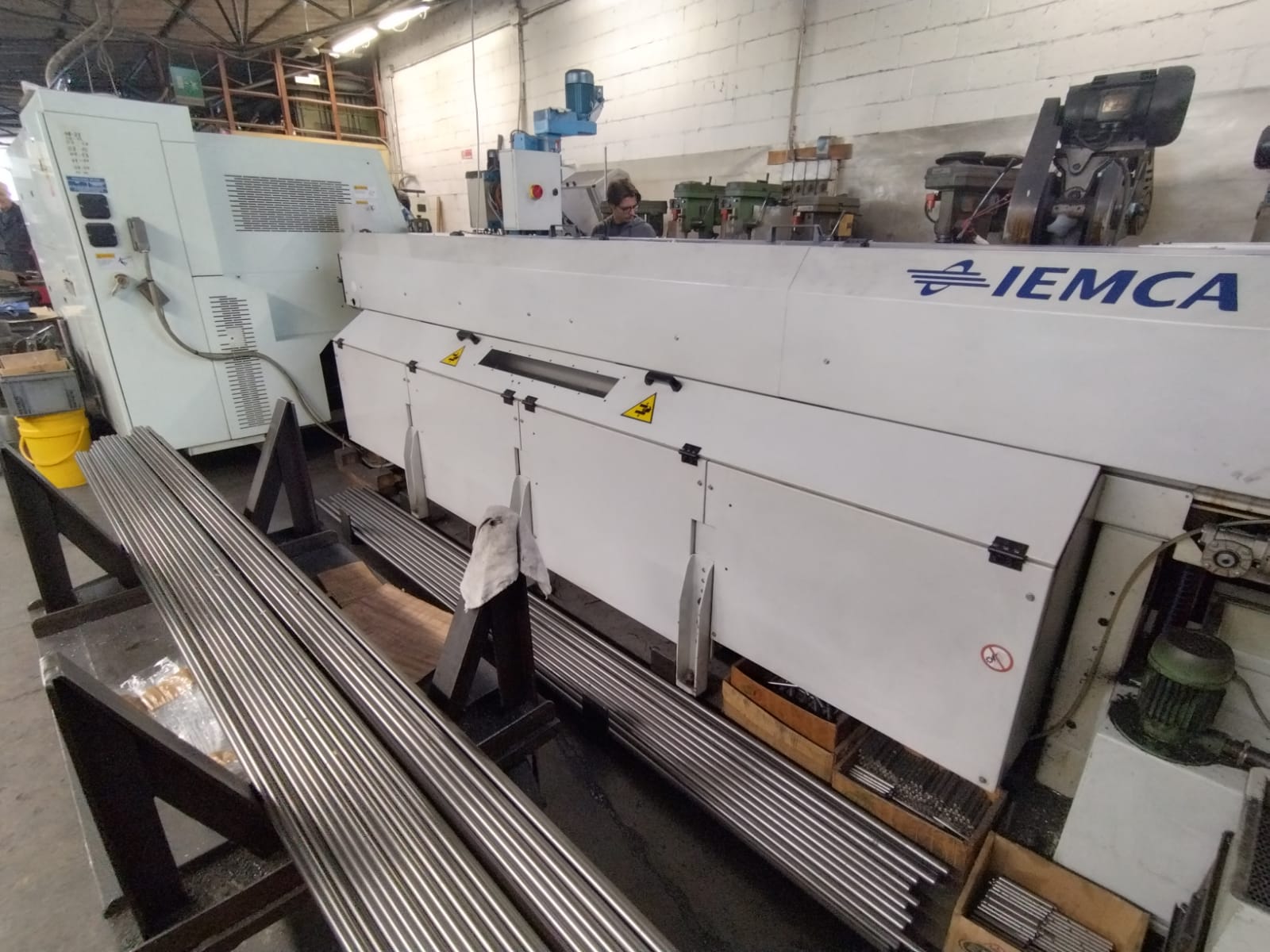

• IEMCA MASTER 880P bar feeder
• User and maintenance manuals
• Electrical diagrams
• EC Declaration of Conformity

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
