TECHNICAL SPECIFICATIONS:

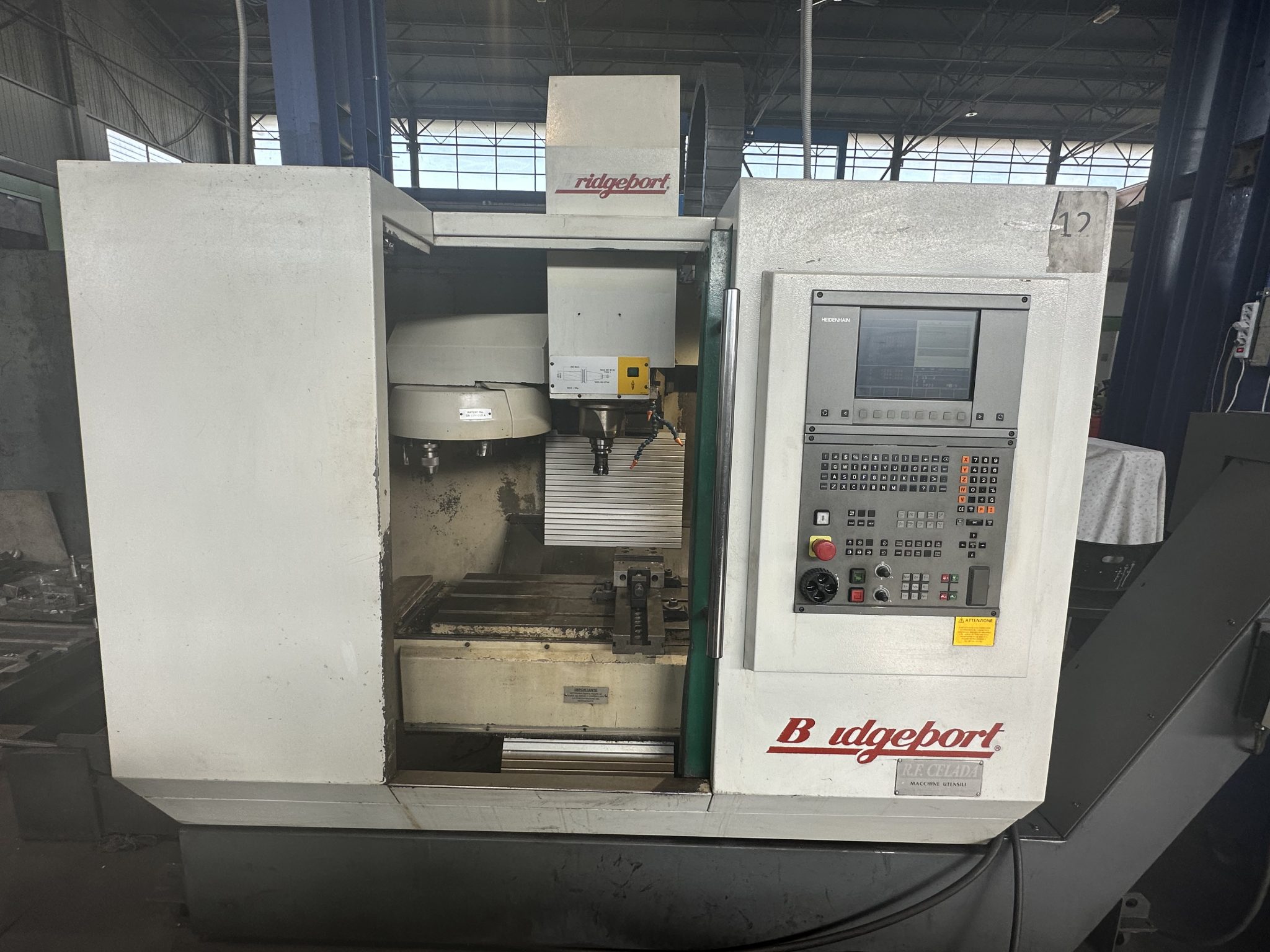

Heidenhain TNC 410 M CNC

WORK AREA:

Longitudinal X: 500 mm

Y-Axis: 340 mm

Vertical Z: 520 mm

X and Y axis rapid traverse: 38 m/min

Rapidi Z: 20 m/min

CHUCK:

Spindle power: 8.5 kW

Rotational speed: 40–7,000 rpm

Spindle mount: BT 40

TABLE:

Dimensions: 840 × 360 mm

T-slots: 3 on 112 mm

Maximum load capacity: 500 kg

TOOL STORAGE:

Warehouse positions: 16

Tool change time: 7.5 sec

Maximum tool weight: 6 kg

Machine comes complete with:

• Chip Conveyor
• Instruction Manuals

Year built: 2001

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
