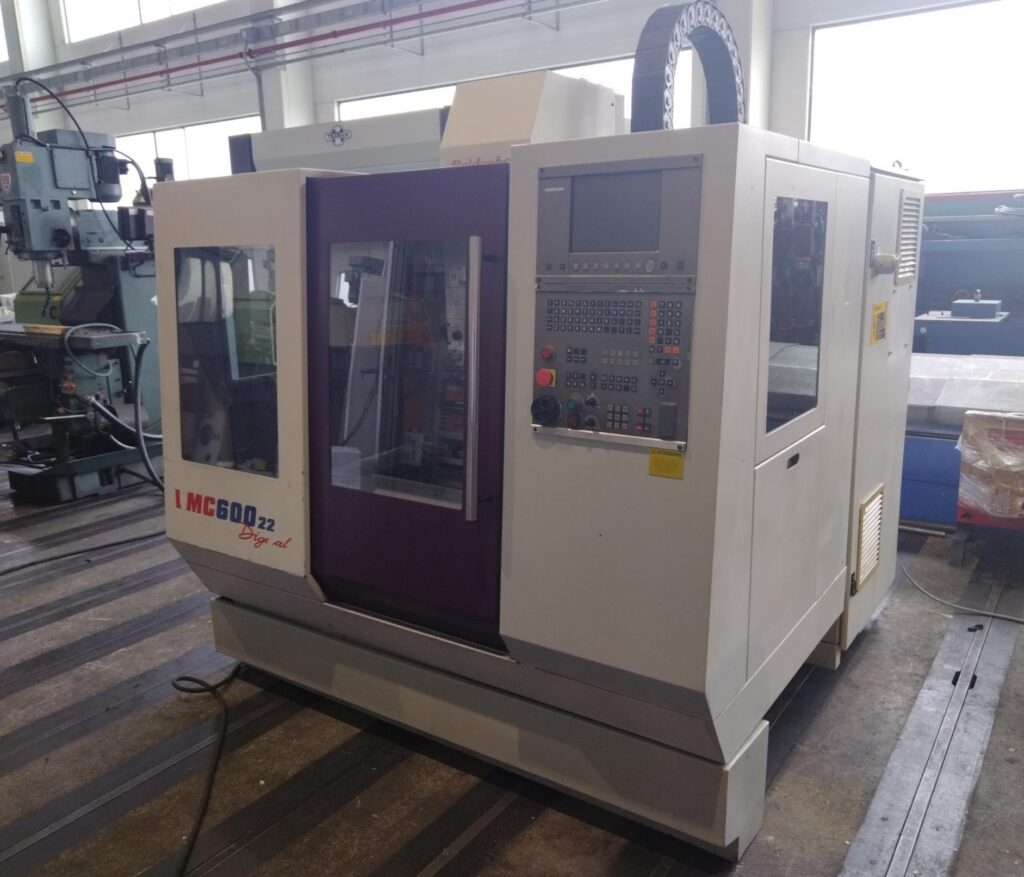

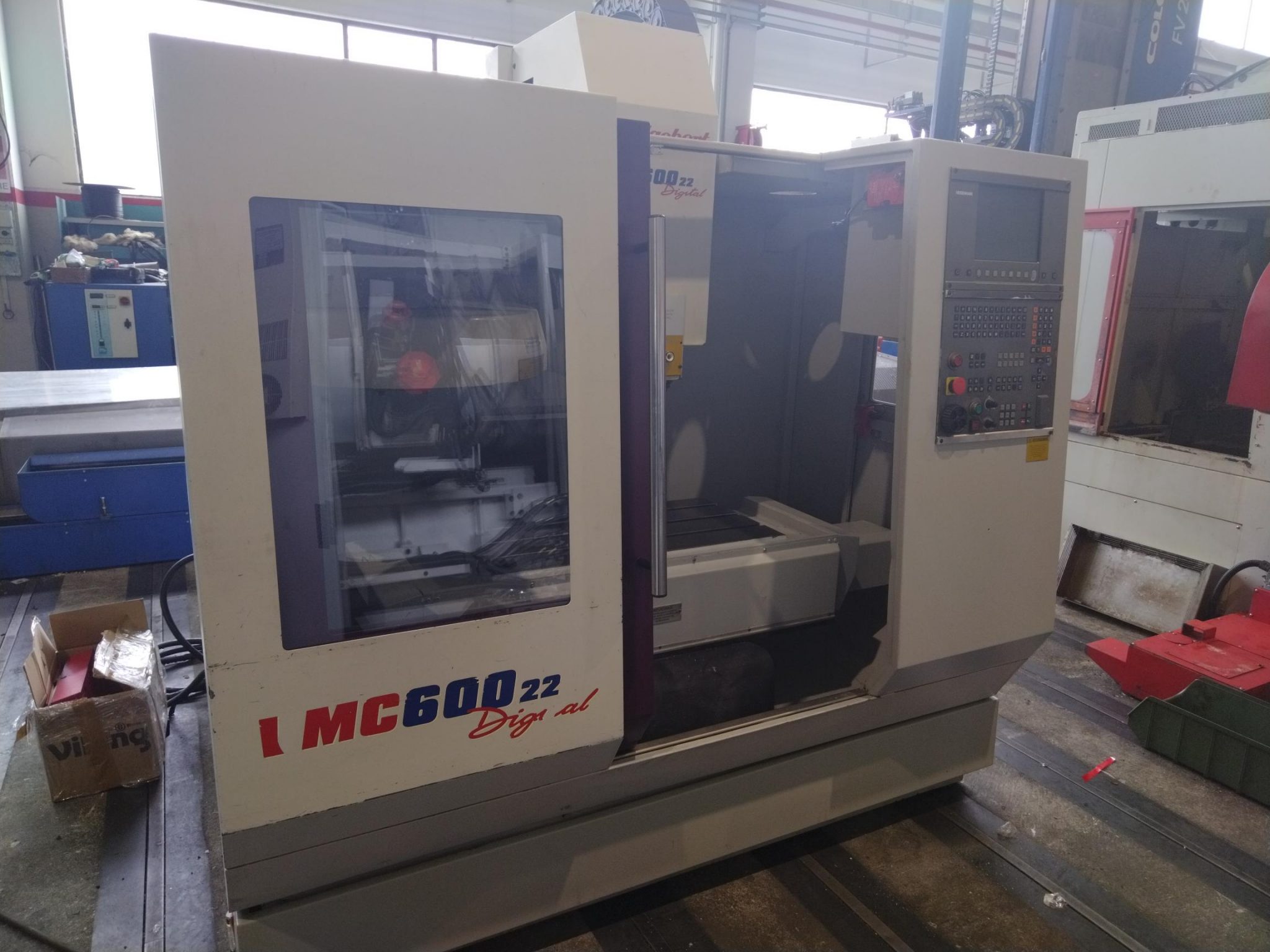

TECHNICAL SPECIFICATIONS:

Heidenhain 410 CNC

WORK AREA:

Longitudinal X: 600 mm

Y-Axis: 410 mm

Vertical Z: 520 mm

X and Y-axis rapid traverse: 40 m/min

Z-axis rapid traverse: 20 m/min

CHUCK:

Spindle taper: BT 40

Speed: 0–6,000 rpm

Power (calibrated at 30 min): 7.5 kW

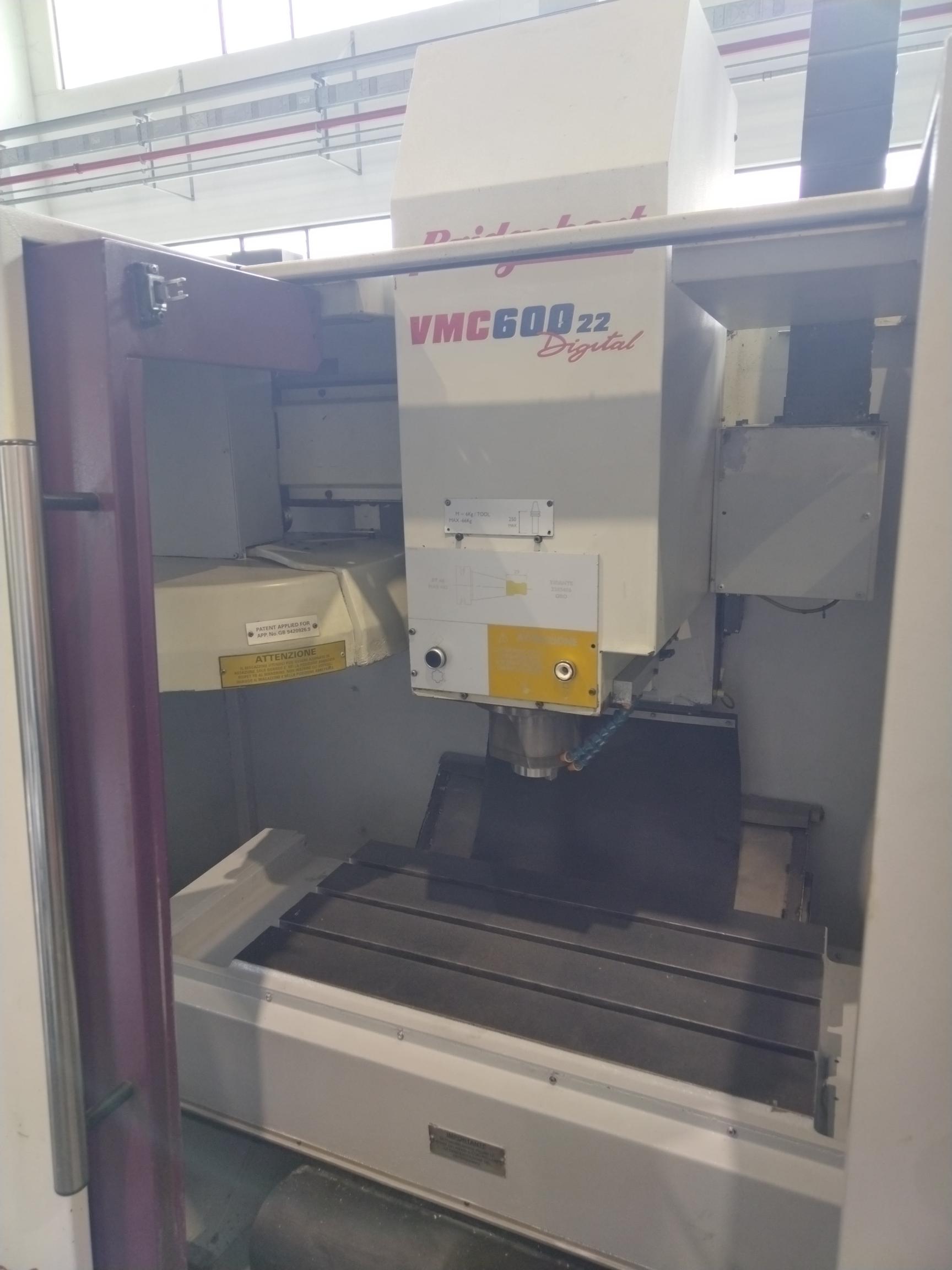

TABLE:

Mounting surface: 840 x 420 mm

T-slots (no. x width): 5 x 63 mm

Maximum load capacity: 500 kg

TOOL CHANGE:

Capacity: 22 tools

Tool change time: 5.2 sec

Maximum tool weight: 6 kg

Maximum length: 250 mm

GENERAL:

Total power: 15 kVA

Weight: 2,700 kg

Machine comes complete with:

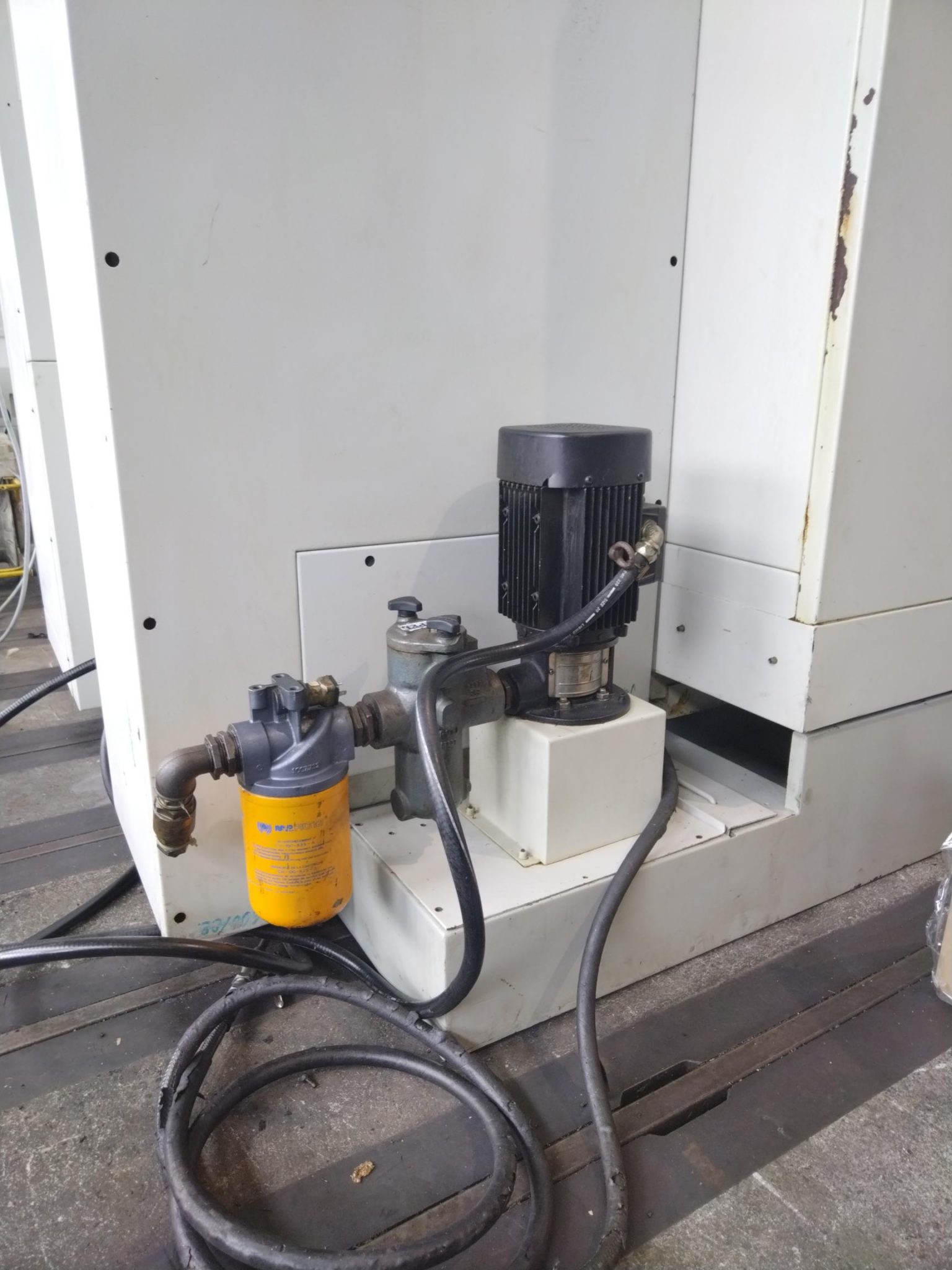

• Spindle Cooling
• Instruction Manuals and EC Declaration

Year: 1999

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
