TECHNICAL SPECIFICATIONS:

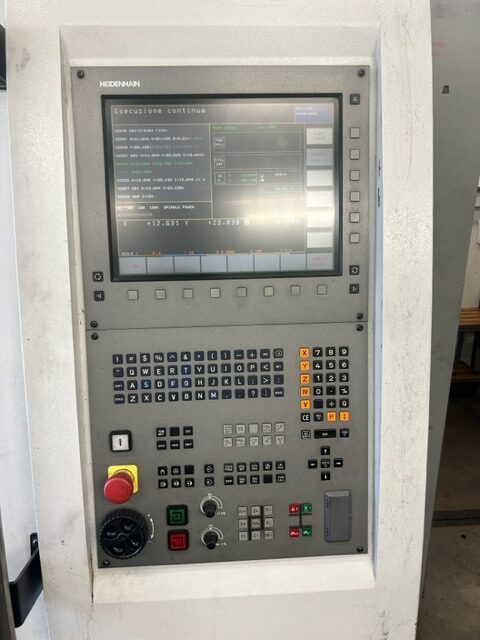

Heidenhain iTNC 530 CNC

WORK CAPACITY:

Longitudinal stroke X: 610 mm

Y-axis travel: 510 mm

Z-axis vertical travel: 610 mm

Rapid feed rates (X, Y, Z): 43 m/min

CHUCK:

Spindle power (30 min): 13 kW

Rotational speed: 15,000 rpm

Spindle mounting taper: BT40

TABLE:

Table surface: 840 x 470 mm

T-slots: 5 , 100 mm apart

Maximum permissible load: 500 kg

TOOL CHANGE:

Magazine capacity: 30 tools

Tool change time: 3.5 sec

Machine comes complete with:

• High pressure through the spindle
• Instruction Manuals and EC Declaration

Year built: 2004

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
