TECHNICAL SPECIFICATIONS:

CNC ELEKTRA E500

WORK AREA:

X-axis length: 1,050 mm

Y-Axis: 520 mm

Vertical Z: 420 mm

CHUCK:

Spindle taper: ISO 40

Speed: 10–6,000 rpm

PROGRESS:

Engines: 20 Nm

X and Y axes: 25,000 mm/min

Z-axis: 15,000 mm/min

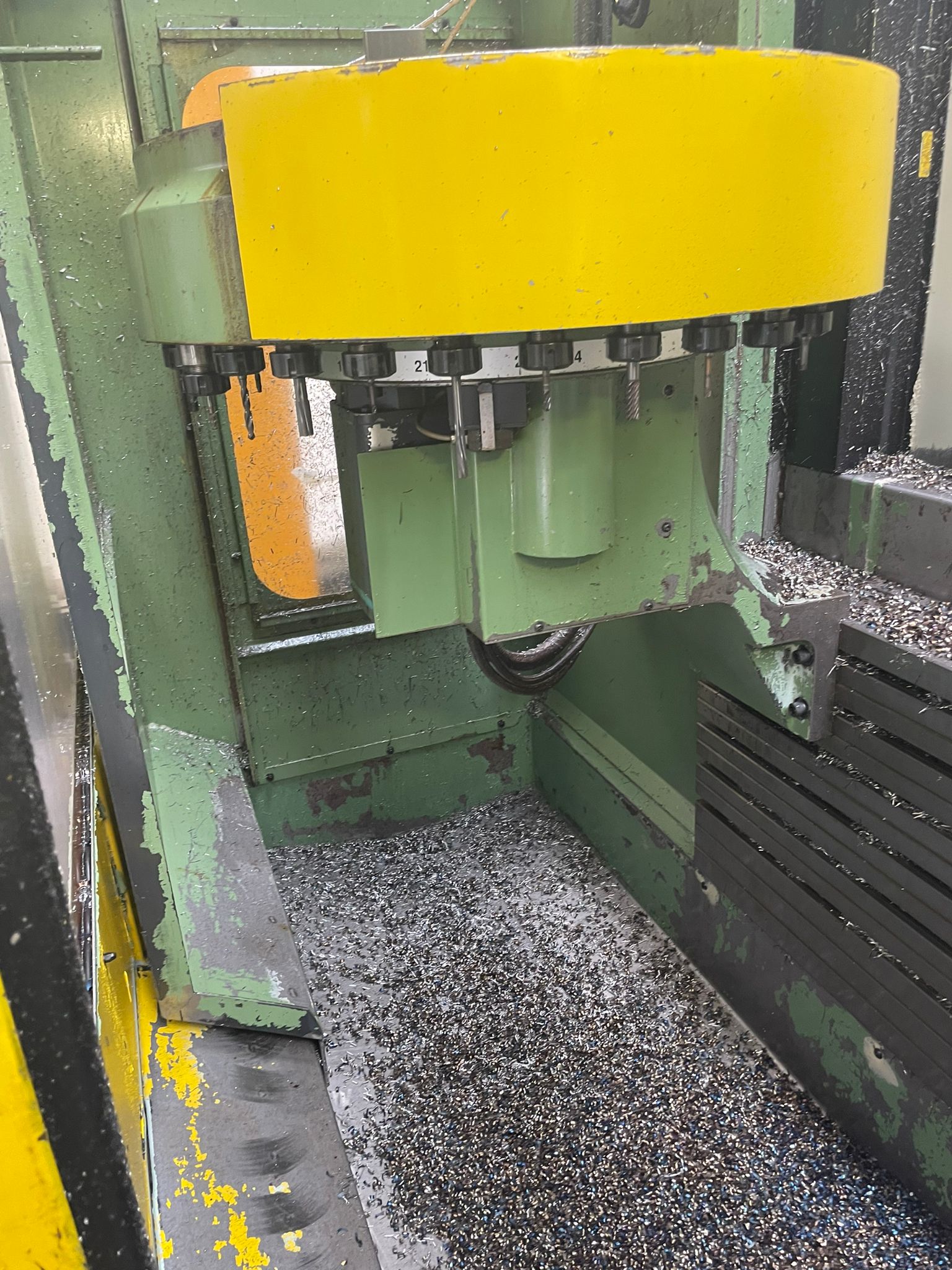

ROTATING TOOL MAGAZINE:

Seats: 24

Cones: ISO 40

DIMENSIONS AND WEIGHTS:

Dimensions: 2.5 m x 2.5 m (H)

Net weight: 5.800 kg

Machine comes complete with:

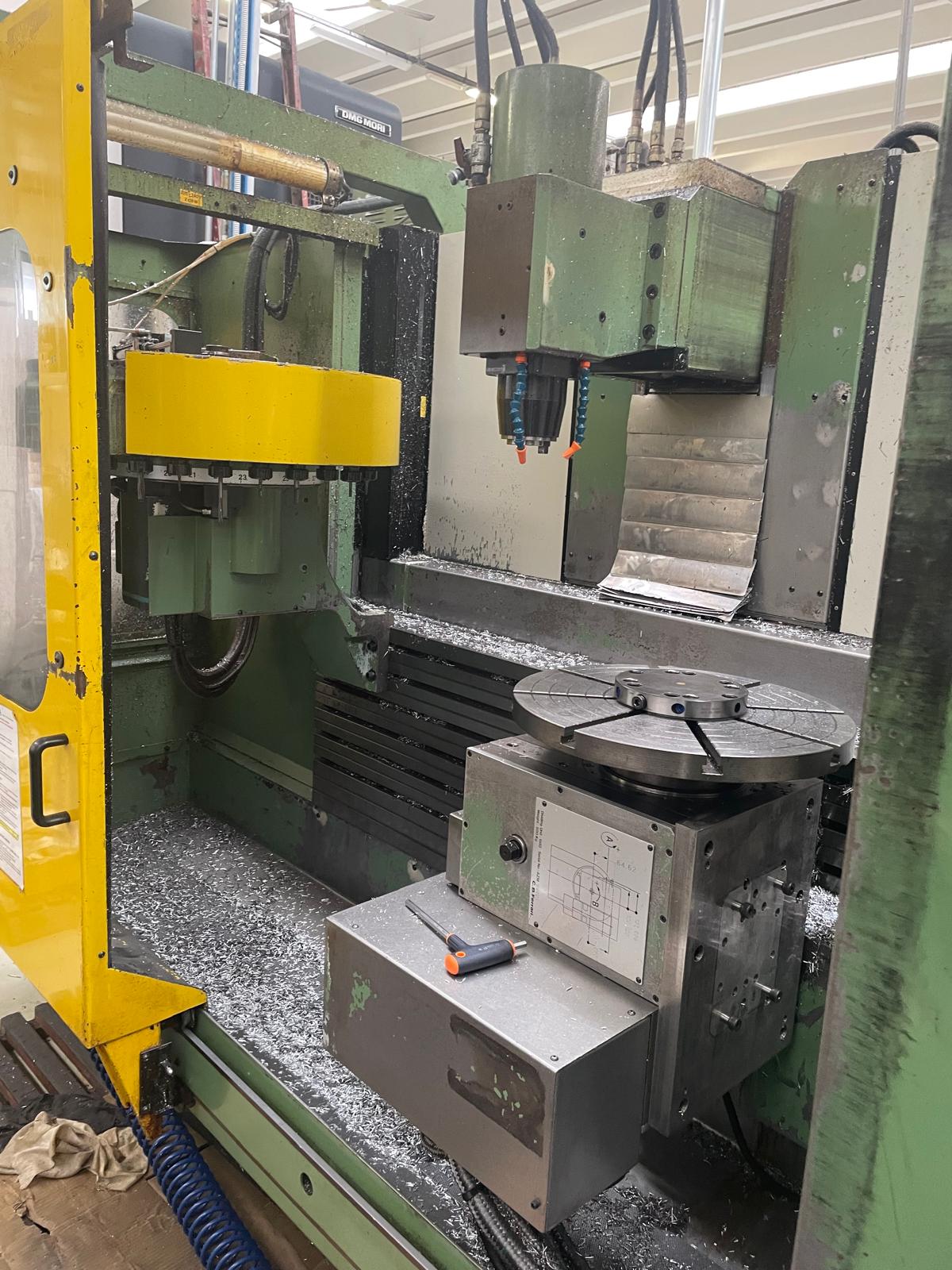

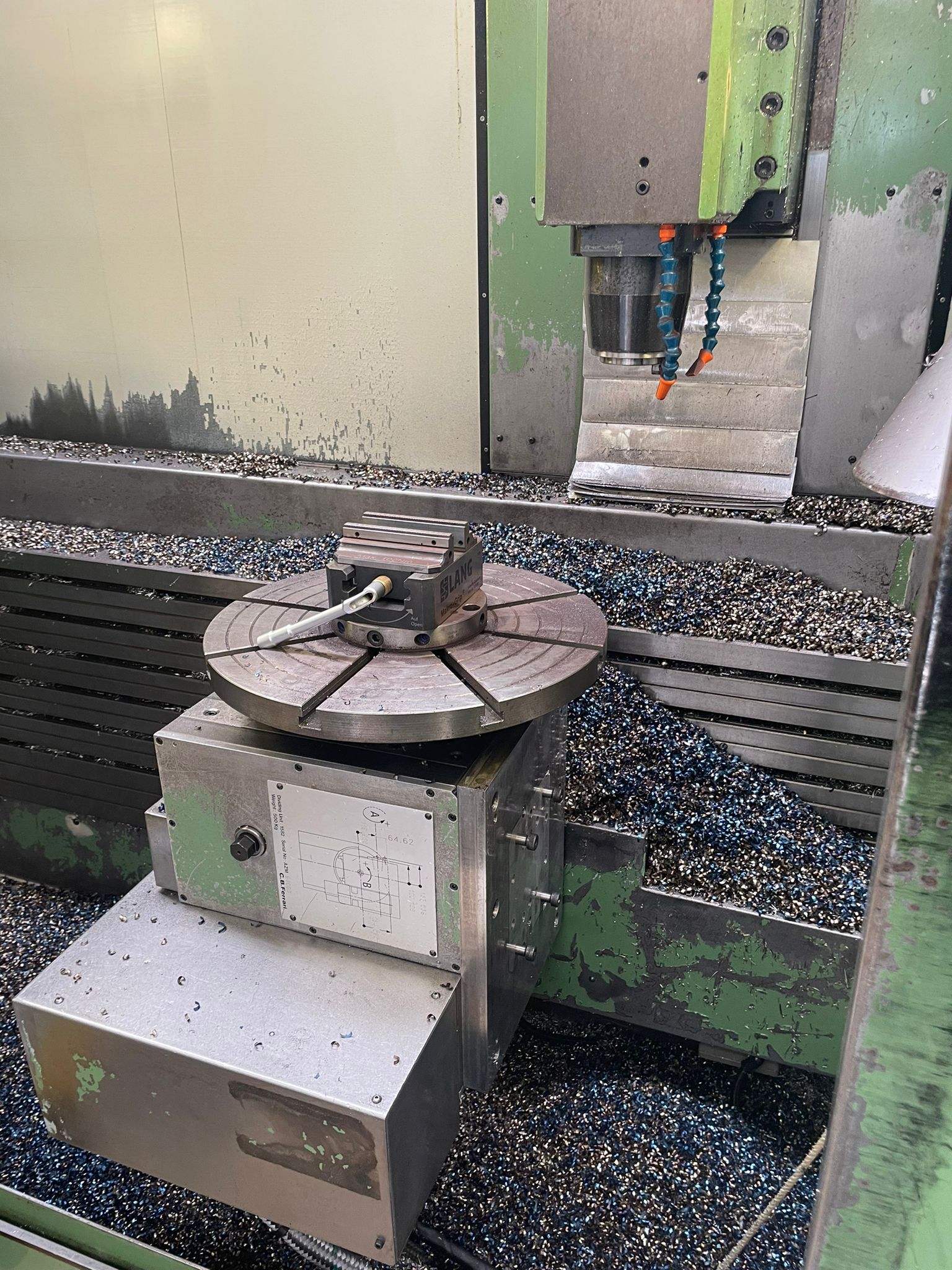

• 2-Axis Divider
• Instruction Manuals and EC Declaration

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
