Sold-out
Technical Specifications
Technical specifications:
Height of tips above the workbench: 200 mm
Nominal distance between the tips: 1,000 mm
Maximum diameter on the slide: 230 mm
Maximum diameter of the recess: 600 mm
Bench width: 320 mm
Length of the recess: 300 mm
Spindle bore: 62 mm
Cam Lock spindle nose: 6’’
Maximum transverse stroke: 260 mm
Tool holder length: 310 mm
Tool holder width: 120 mm
Maximum tool holder stroke: 185 mm
Shaft diameter: 62 mm
Length of the boat: 315 mm
Maximum stroke of the piston: 200 mm
Tip cone: No. 4
Maximum diameter of fixed ring: 200 mm
Maximum diameter of the movable ring: 170 mm
Engine power: 7.5 hp
Machine includes:

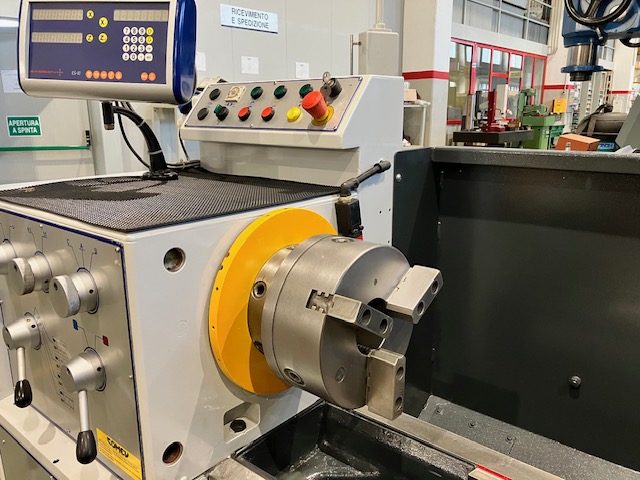

• 3-axis coordinate display
• Fixed steady rest + sliding steady rest
• Instruction manuals and EC Declaration of Conformity
Year built: 2009
