Technical Specifications

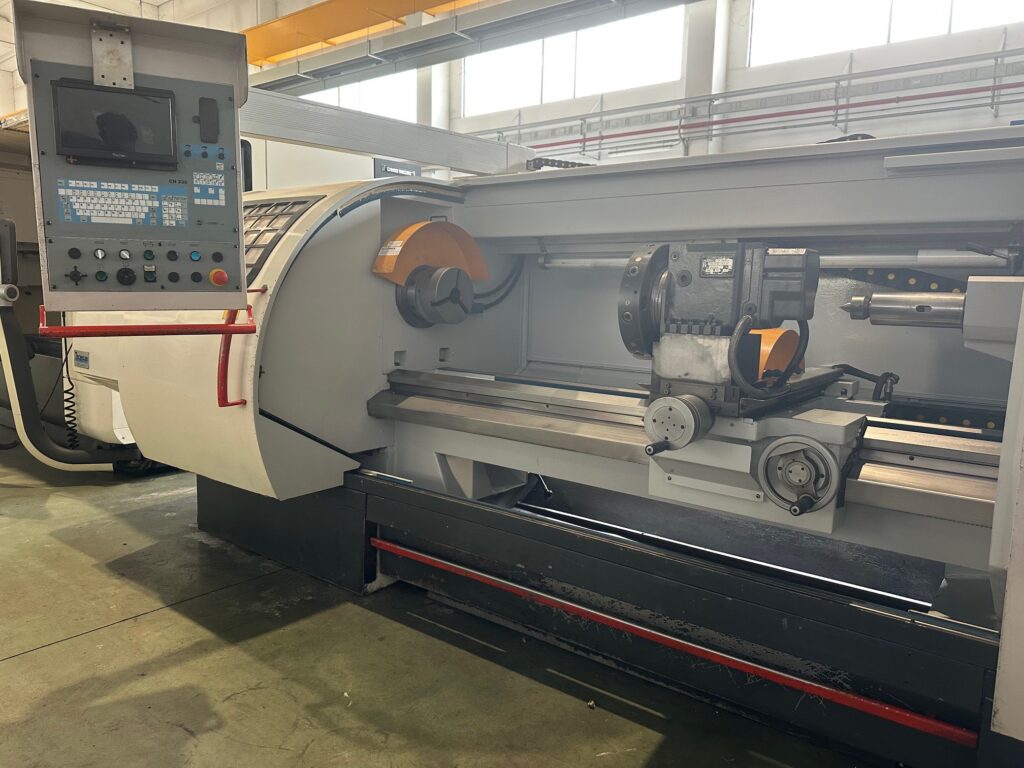

CNC ECS Z32
Height of the tips above the workbench: 350 mm
Distance between tips: 2,000 mm
Maximum diameter on the bench: 700 mm
Maximum diameter on the slide: 460 mm
Bench width: 400 mm
Spindle bore: 110 mm
8-inch Cam Lock Spindle Nose
Spindle speed, rpm: 0–2,000
Spindle motor power: 24/18 kW
Rapid traverse, Z-axis: 10 X m/min
Continuous thrust along the Z-axis: 1,200 kg
Continuous thrust on the X-axis: 400 kg
Weight: 4,700 kg
Year built: 2000
The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
Machine comes complete with:
Macchina completa di:

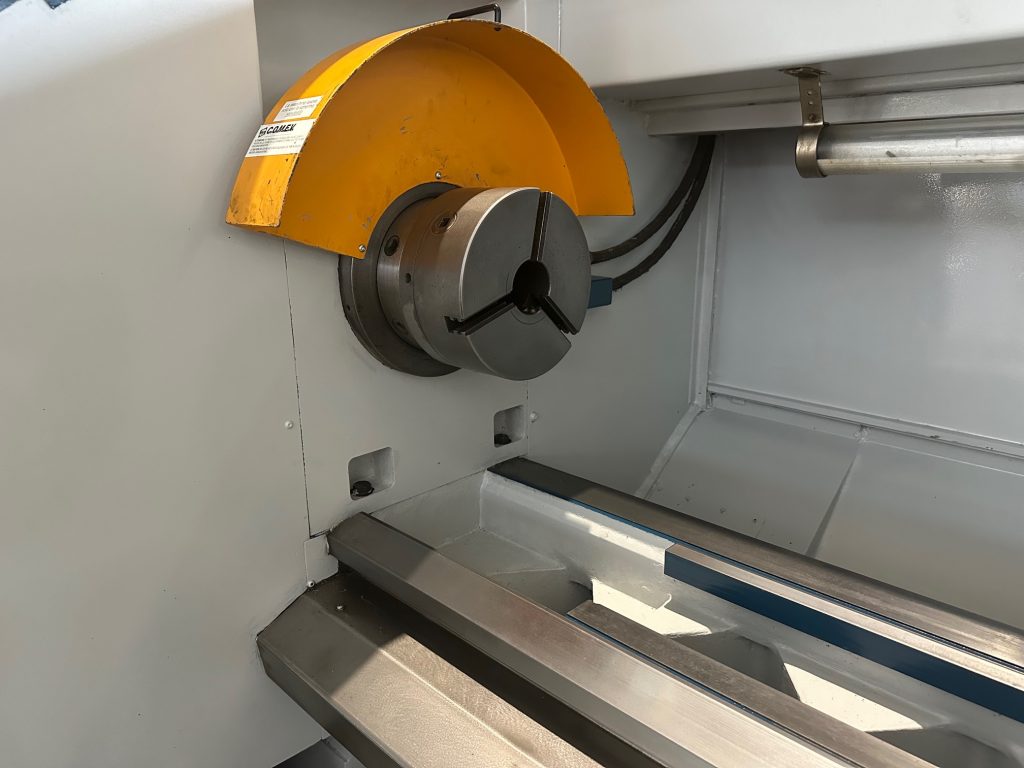

Autocentrante doppia guida diam. 315

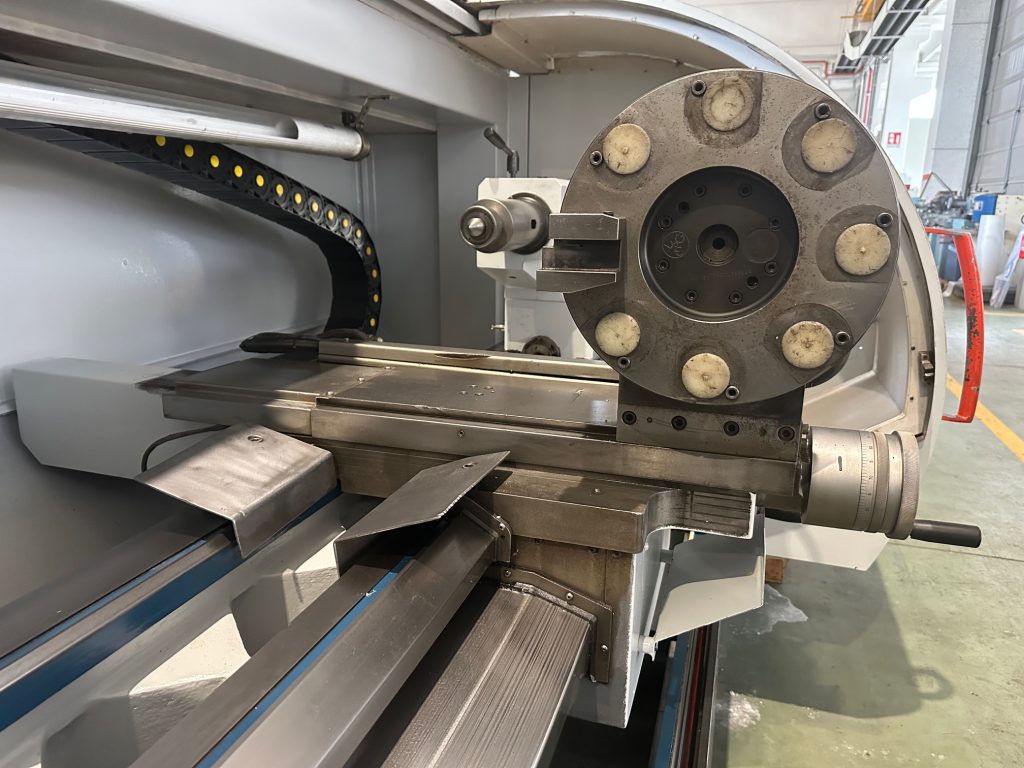

Torretta elettrica Baruffaldi VDI 40 8 posizioni
Vari portautensili VDI 40

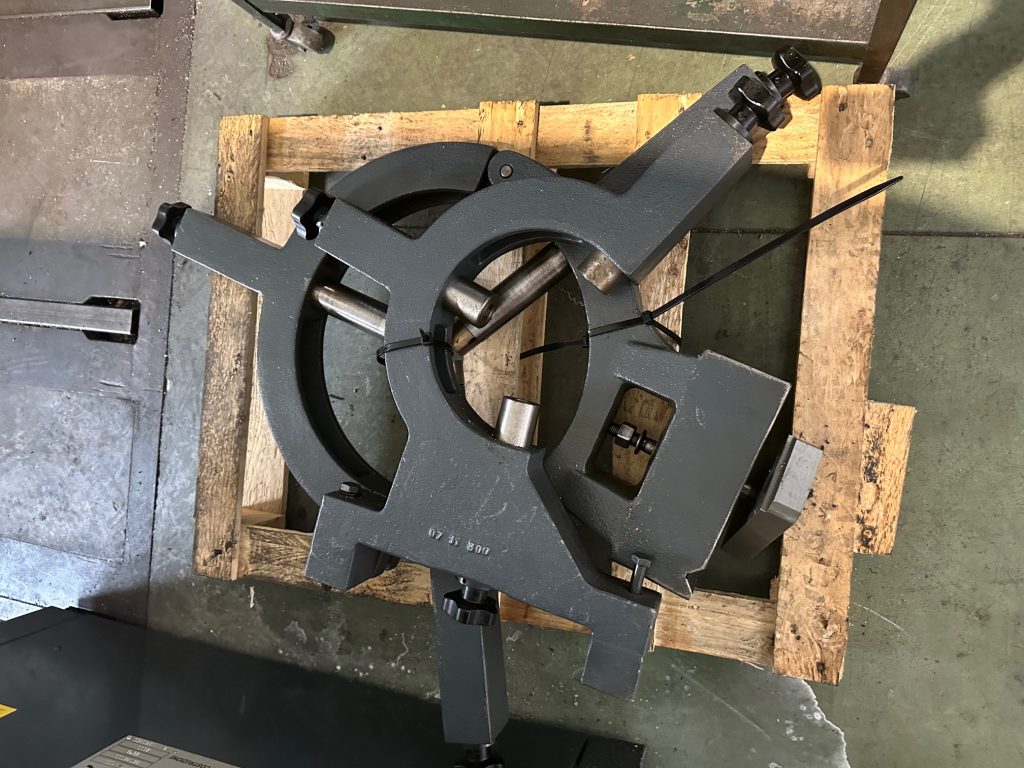

Lunetta fissa
Lunetta mobile
Manuali d’uso e manutenzione
Dichiarazione CE
