TECHNICAL SPECIFICATIONS:

Height of the tips on the workbench: 200 mm

Nominal distance between the tips: 1,000 mm

Maximum diameter on the slide: 230 mm

Maximum diameter of the recess: 600 mm

Bench width: 320 mm

Length of the recess: 300 mm

Spindle bore: 62 mm

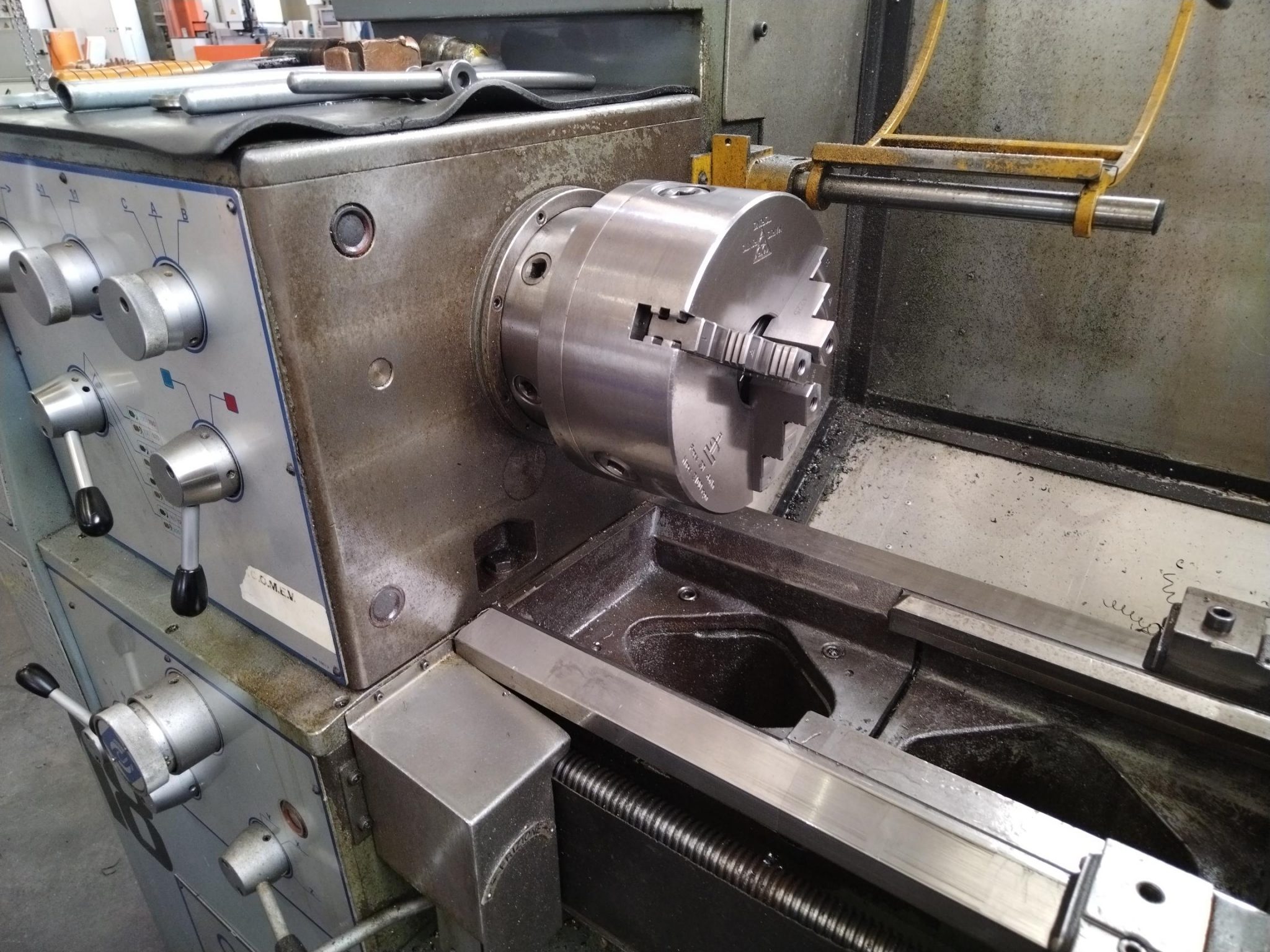

Cam Lock spindle nose: 6’’

Maximum transverse stroke: 260 mm

Tool holder length: 310 mm

Tool holder width: 120 mm

Maximum tool holder stroke: 185 mm

Shaft diameter: 62 mm

Length of the boat: 315 mm

Maximum stroke of the piston: 200 mm

Tip cone: No. 4

Maximum diameter of fixed ring: 200 mm

Maximum diameter of the movable ring: 170 mm

Engine power: 7.5 hp

Machine comes complete with:

• 3-Axis Coordinate Display
• Fixed bezel + movable bezel
• Instruction Manuals and EC Declaration

Year built: 1999

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
