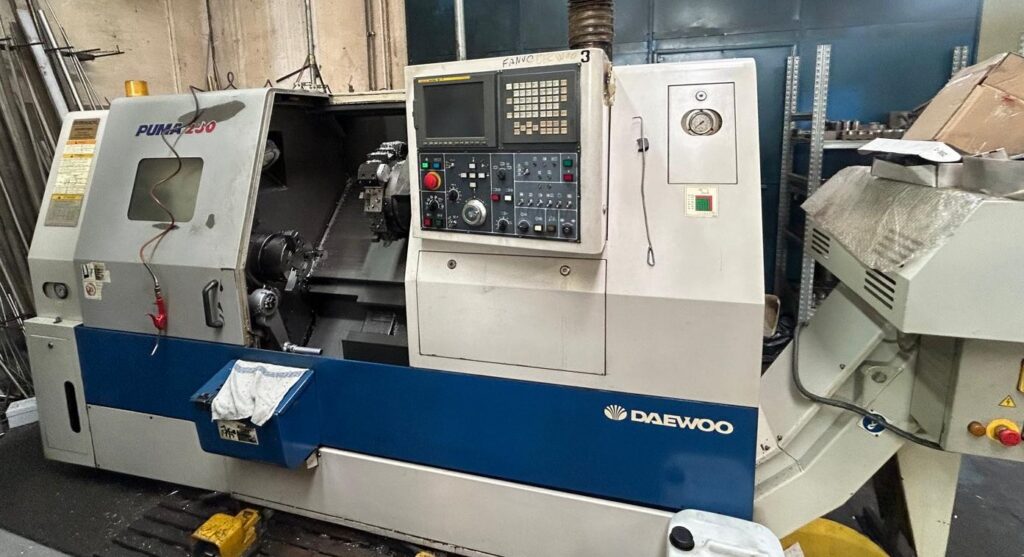

TECHNICAL SPECIFICATIONS:

CNC GE Fanuc Series 18i – T

CAPACITY:

Rotating diameter on the bench: 510 mm

Rotating diameter on the carriage: 330 mm

Recommended machinable diameter: 210 mm

Maximum turnable diameter: 350 mm

Maximum turnable length : 548 mm

RACES:

X-axis travel: 242 mm (67+175)

Z-axis travel: 580 mm

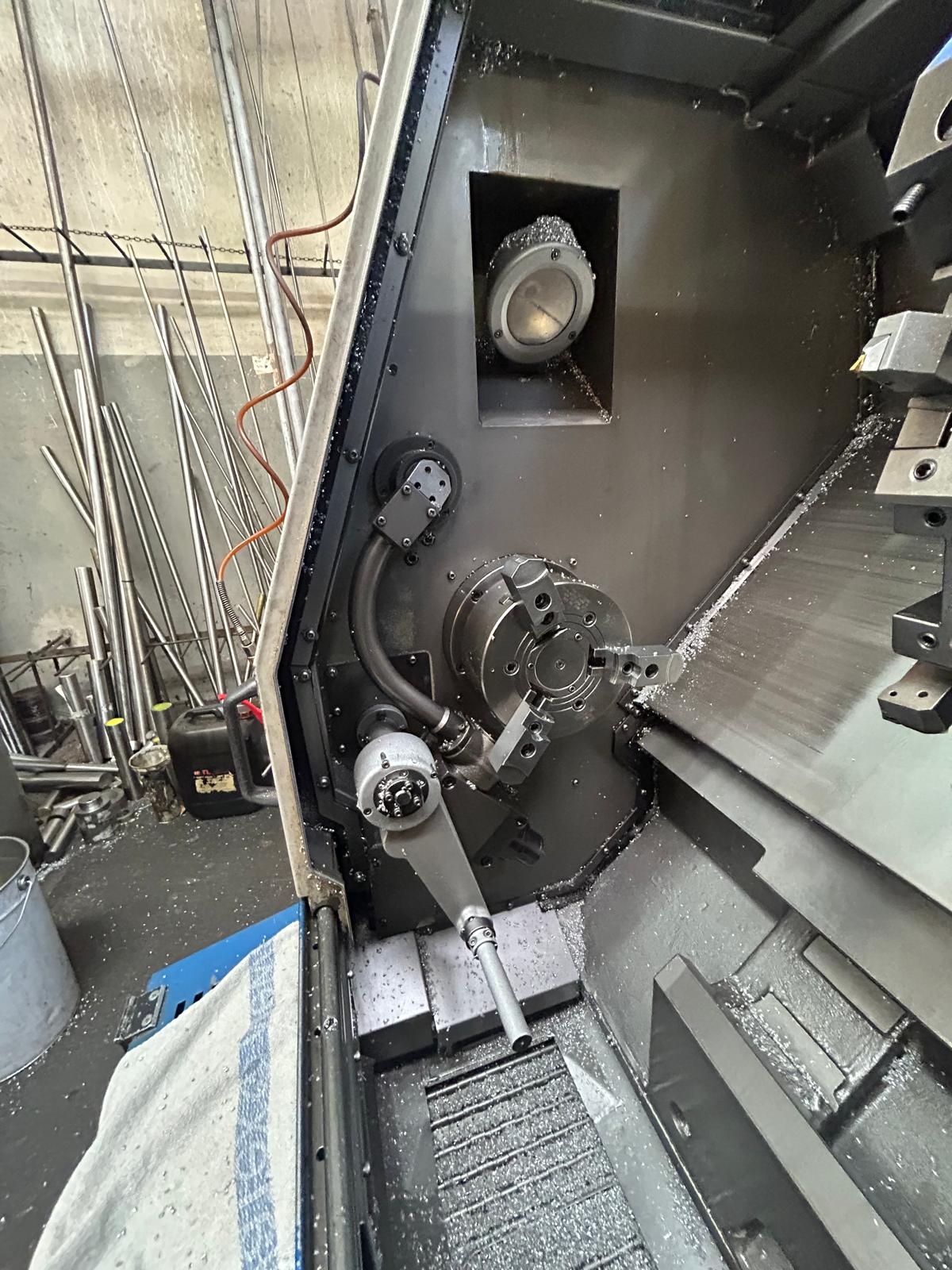

CHUCK:

Spindle speed: 4,500 rpm

Spindle nose: A2 – 6

Spindle bore diameter: 65 mm

Inner diameter of the spindle bearing: 110 mm

TORRETTA:

Number of stations: 12

Turning tool dimensions: 25 mm

Reaming tool dimensions: 40 mm

Indexing time (1 station): 0.1 sec

PROGRESS:

X/Z Rapid Feed Rate: 24 / 30 m/min

Feed rate: 1,000 mm/rev

COUNTERPOINT:

Tailstock diameter: 75 mm

Steering tube travel: 80 mm

ENGINES:

Spindle motor power: 15 kW

Axis motor power: 1.4 / 2.8 kW

DIMENSIONS:

Overall dimensions: 2,997 x 1,635 mm

Weight: 4.040 kg

Machine comes complete with:

• Autoblock Self-Centering, Diam. 250 mm
• Tool Presetting
• User and Maintenance Manuals and EC Declaration

Year built: 2001

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
