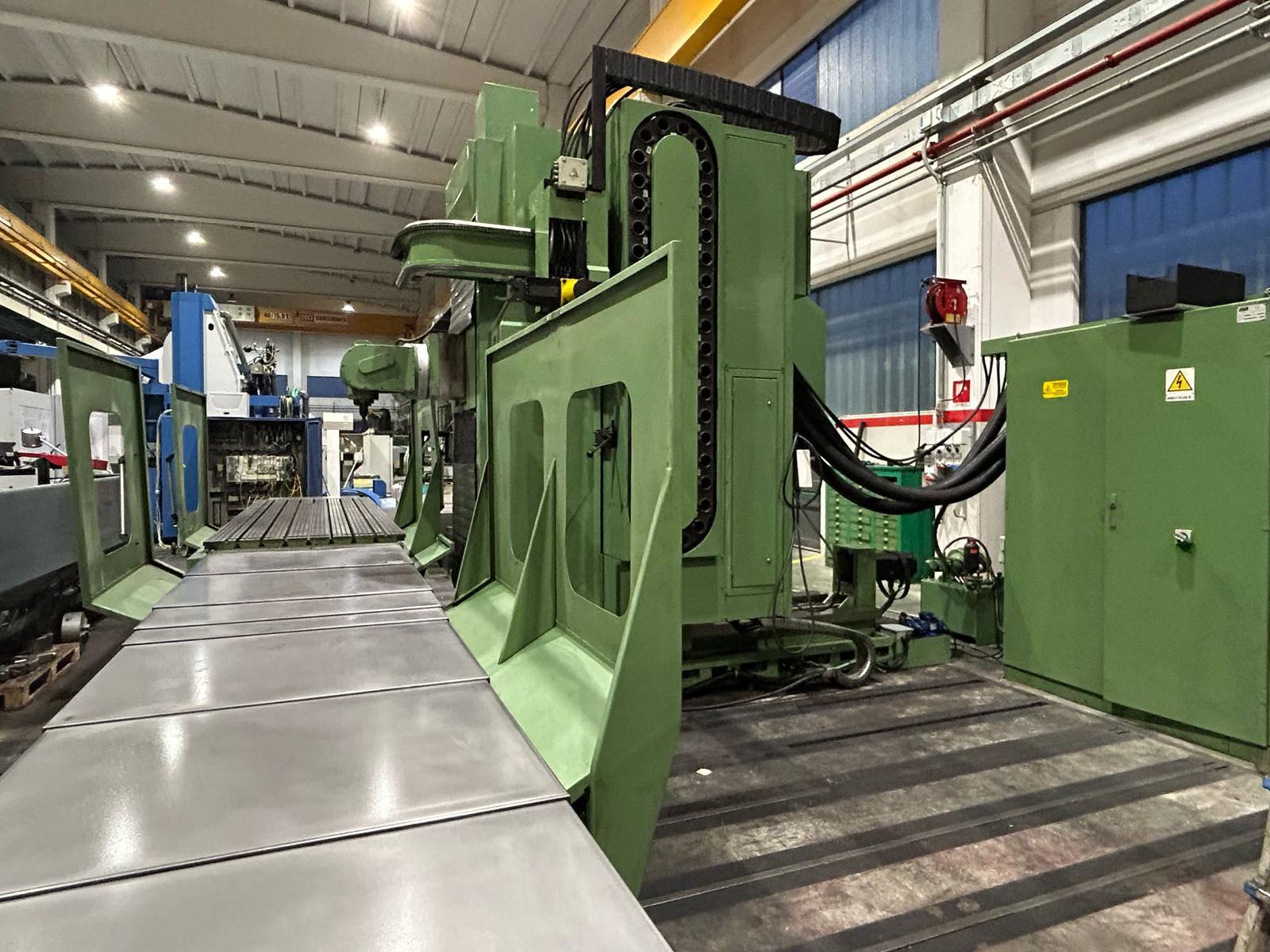

TECHNICAL SPECIFICATIONS:

CNC ECS 2301 (with the option of a retrofit)

SPINDLE
ISO 50 DIN 2080
cone AC motor Kw. 28 (S1/100 %)
Constant torque from 0 to 250 rpm.
Constant power from 250 to 3,000 rpm.
Two automatic ranges

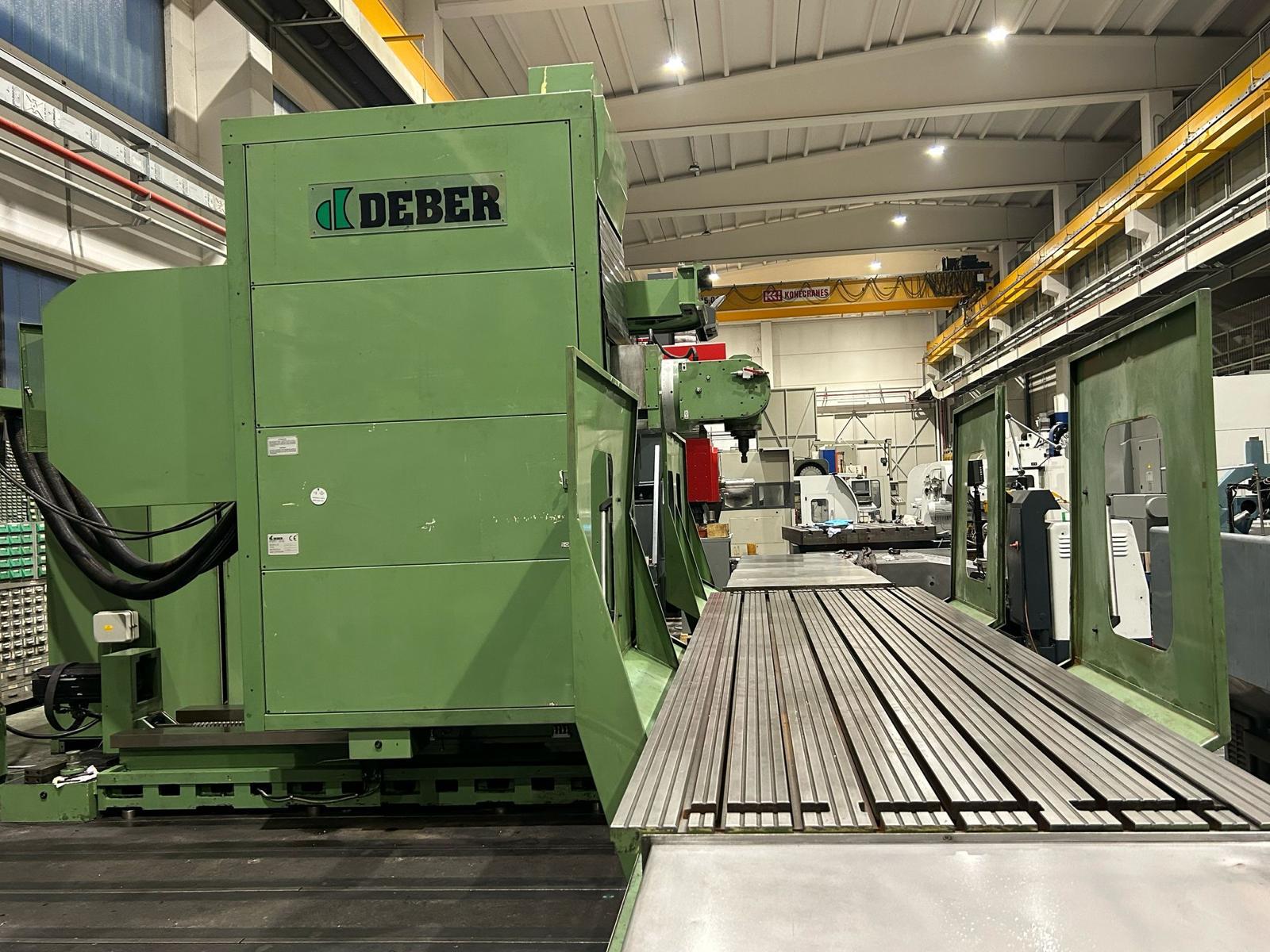

TABLE (X-axis)
Length: 4,000 mm
Width: 1,000 mm
Stroke: 4,000 mm
Number of T-slots: 7

Groove width: 18 mm
Cutting feed rate (mm/min): 0 – 8,000
Rapid traverse (mm/min): 15,000

HEAD (Y-axis RAM)
Y-axis stroke mm 1,000
Cutting feed rate mm/min 0 – 8,000
Rapid traverse mm/min 15,000

VERTICAL AXIS (Z-axis)
Z-axis travel mm 1,500
Cutting feed rate mm/min 0 – 8,000
Rapid traverse mm/min 15,000

RAIL (W-axis)
W-axis travel mm 1,300
Working feed rate mm/1’ 0 – 8,000
Rapid feed rate mm/1’ – 15,000

ACCESSORIES:

• 40-position tool magazine
• T.O.B. orbital head with ISO 50 taper, max. 3,000 rpm, hydraulic tool clamping, 180° swivel rotation, head rotation 270°, grease lubrication, automatically positionable in 2°30’ angular increments, complete with 2 encoders to detect the exact position, max. power Resume. 23 to 250 rpm.

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
