TECHNICAL SPECIFICATIONS:

YEAR OF MANUFACTURE: 2003

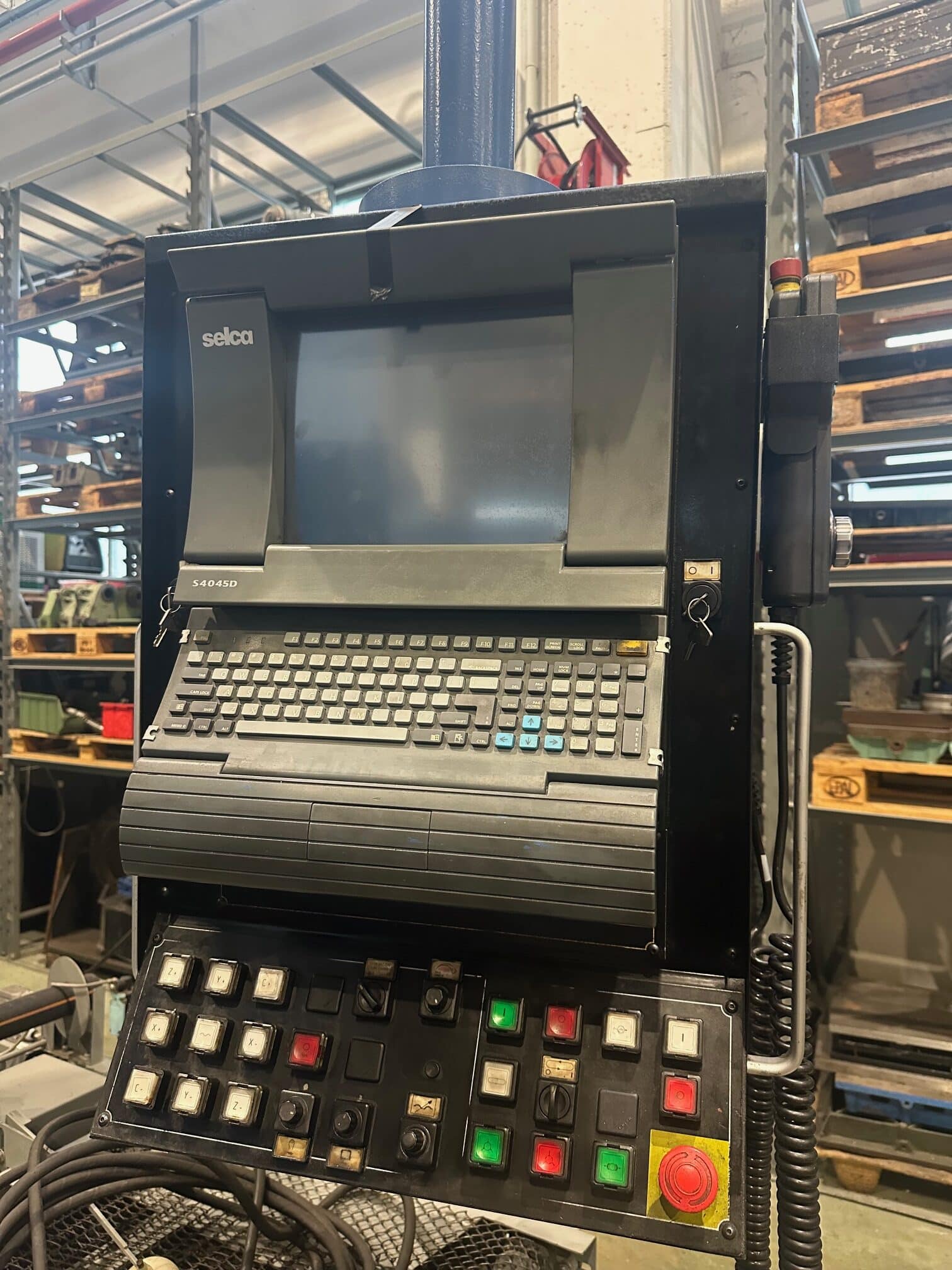

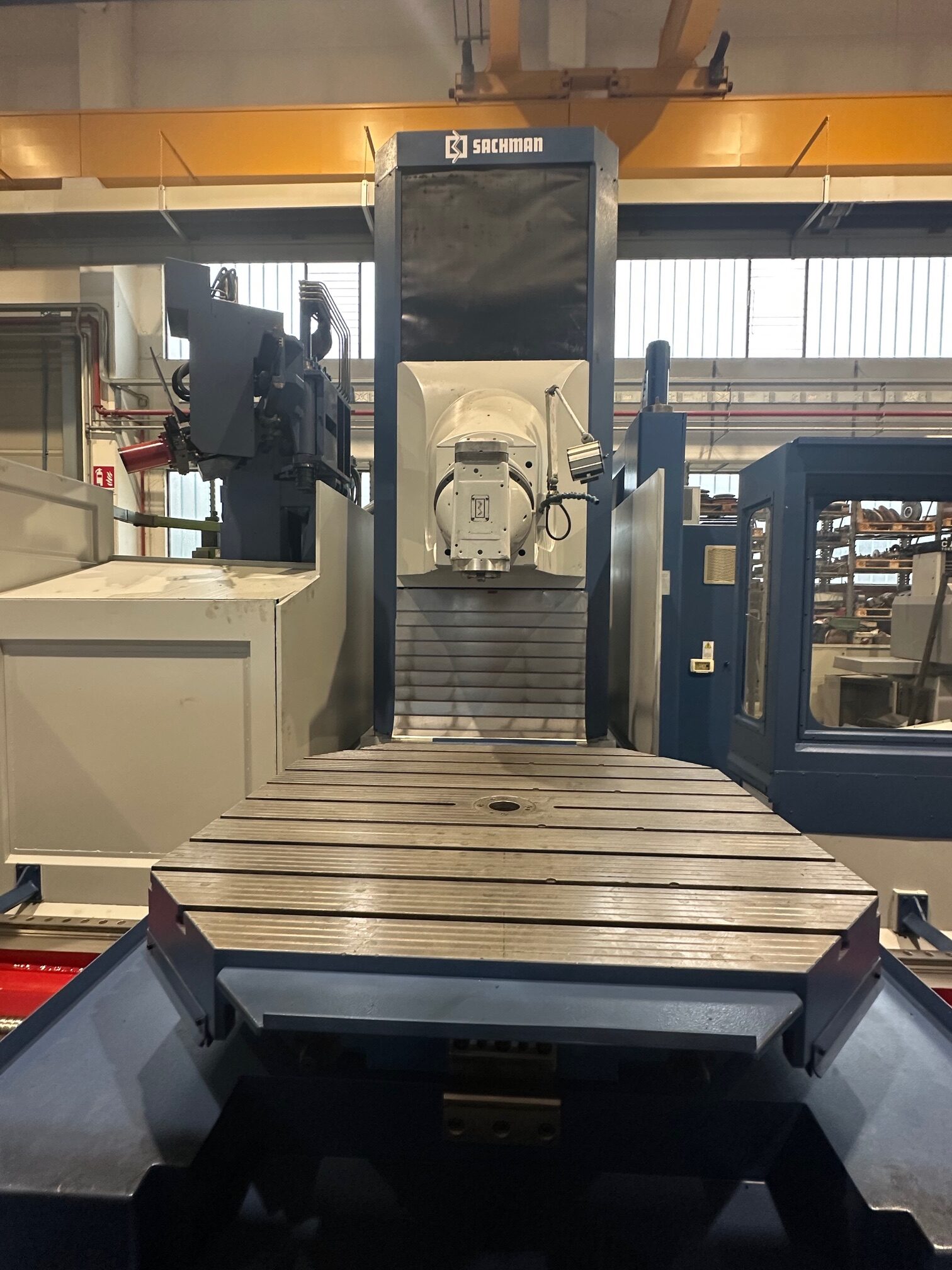

CNC SELCA 4045PD

RACES:

X-axis travel: 2500 mm

Y-axis traverse: 1400 mm

Vertical travel along the Z-axis: 1500 mm

TABLE:

Dimensions: 1200 × 1200 mm

Capacity: 5,000 kg

No. of dividers: 360,000

T-slots: 7 – center-to-center distance 127

table-axis motor power: 6 kW

KOSMO 5 AUTOMATIC DOUBLE-ROTATING HEAD:

Continuous power: 28 kW

KOSMO head spindle speed: 4,000 rpm

Positioning of HIRT-Toothed Shafts

Rotation in the posterior plane: 2 .5 °

Rotation in the frontal plane: 3°

Tool shank: DIN 69871-A50

Tie rod: DIN 69872-28 (50)

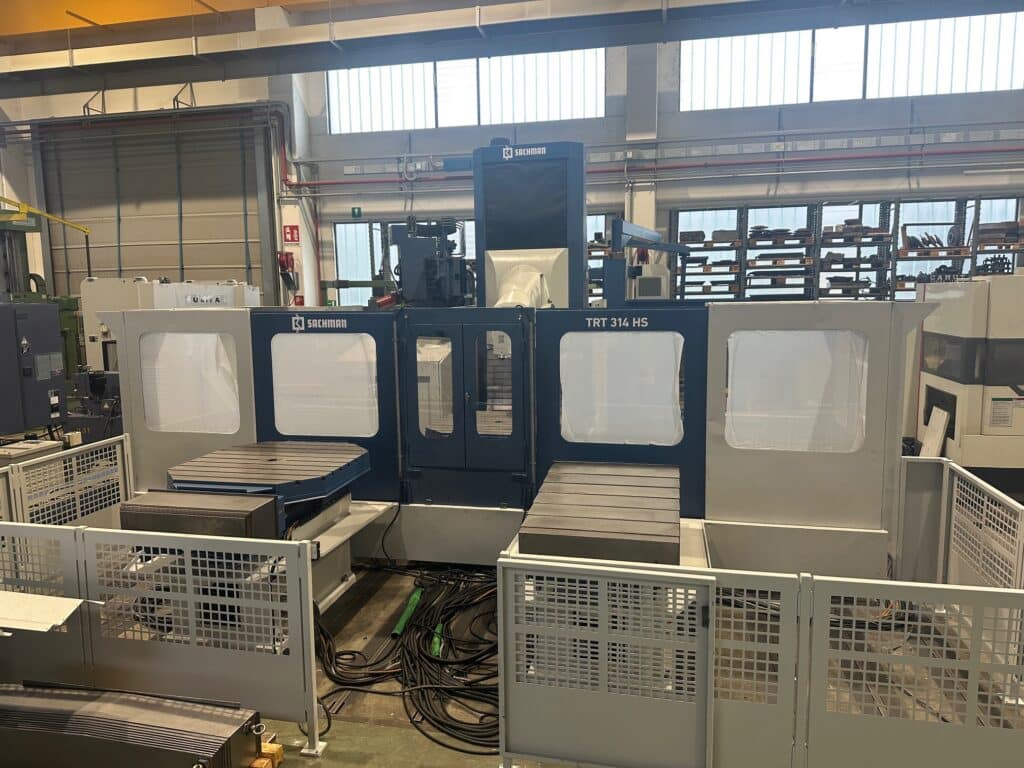

PALLET CHANGER: DCN 100 CP

The pallet exchange system is fully automatic and is controlled directly by the machine’s control system according to a predetermined sequence.

The pallet stand is constructed of FE42 electro-welded steel and features a large containment and collection tray for chips and emulsified oil.

The pallet handling system operates in two stages, using a hydraulic cylinder and an R.S. screw connected to a brushless servomotor.

The pallet slides along linear guides equipped with standard-precision size 45 ball slides.

The PALLET is made of G30 cast iron that has been heat-treated, machined, and ground. The work surface features T-slots for clamping.

The slide guides and centering cones are mounted on the lower part; all components are cemented and ground.

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
