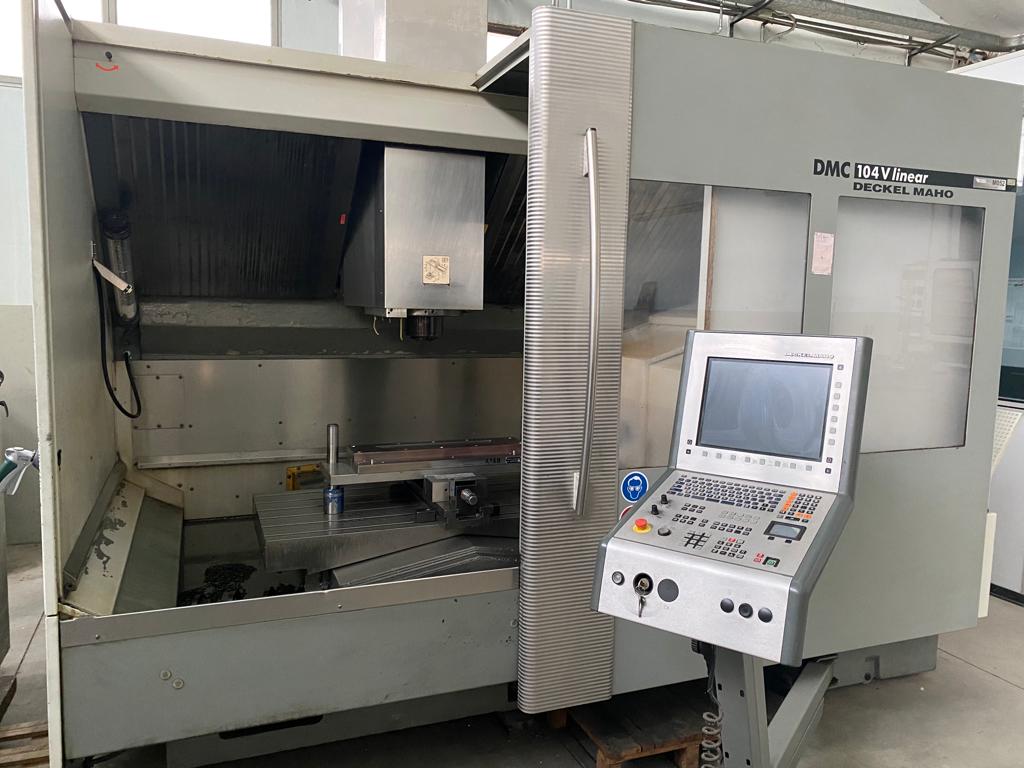

Technical Specifications
TECHNICAL SPECIFICATIONS:
Heidenhain 530 CNC
WORK AREA:
Longitudinal stroke X: 1,040 mm
Y-axis travel: 600 mm
Z-axis vertical travel: 500 mm
PROGRESS:
X/Y/Z Feed Rate: 7,000 N
Feed rate: 1–40,000 mm/min
Rapid X/Y, Z: 70 / 40 m/min
CHUCK:
Power (40 / 100% ED): 19 / 13 kW
Torque (40 / 100% ED): 100 / 70 Nm
Spindle speed: 12,000 rpm
DIN 69871-A tool holder taper: SK 40
TOOL CHANGE:
Number of tools: 30
Max. tool diameter: 100 mm
Max. tool diameter with adjacent positions free: 140 mm
Maximum tool length: 300 mm
TABLE:
Clamping surface with 5 T-slots per DIN 650: 1,250 x 600 mm
Loading height: 850 mm
Maximum load capacity: 800 kg
DIMENSIONS AND WEIGHTS:
Machine dimensions: 3,634 x 4,020 x 3,186 mm
Machine weight: 8,800 kg
Year built: 2004
