TECHNICAL SPECIFICATIONS:

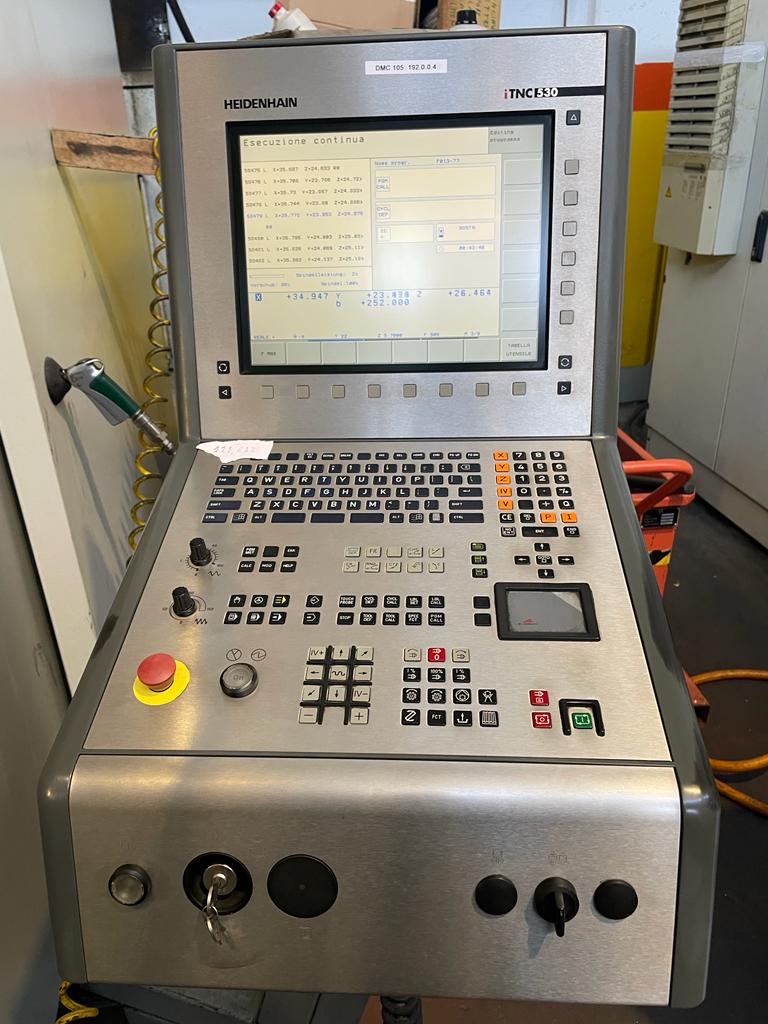

Heidenhain iTNC 530 CNC

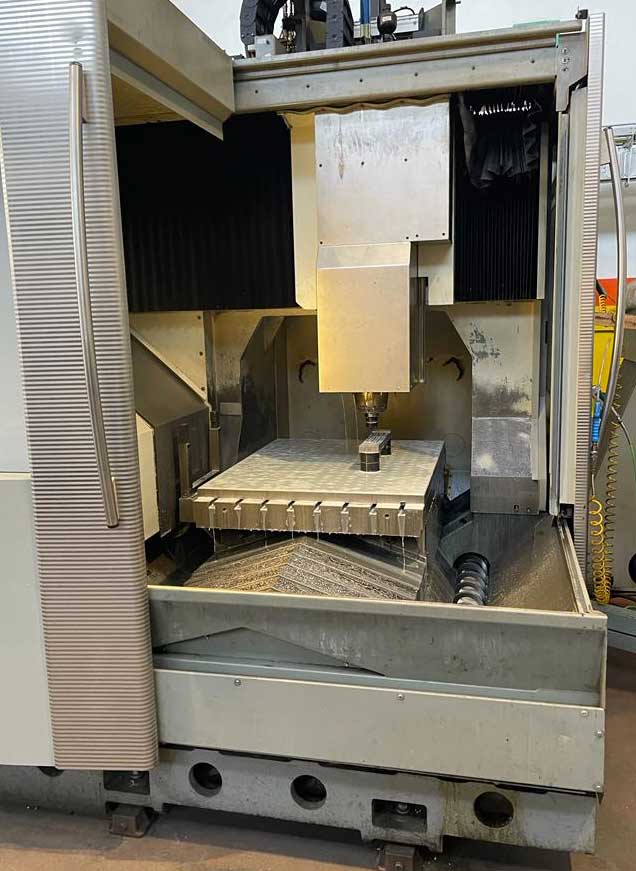

WORKING AREA:
Longitudinal X: 1,050 mm
Transverse Y: 800 mm
Vertical Z: 560 mm
SPINDLE:
Spindle mount: HSK-A63
Rotational speed: 18,000 rpm
FEED RATES:
Feed rate up to: 90,000 mm/min
Rapid feed rates for X, Y, Z axes: 90,000 mm/min

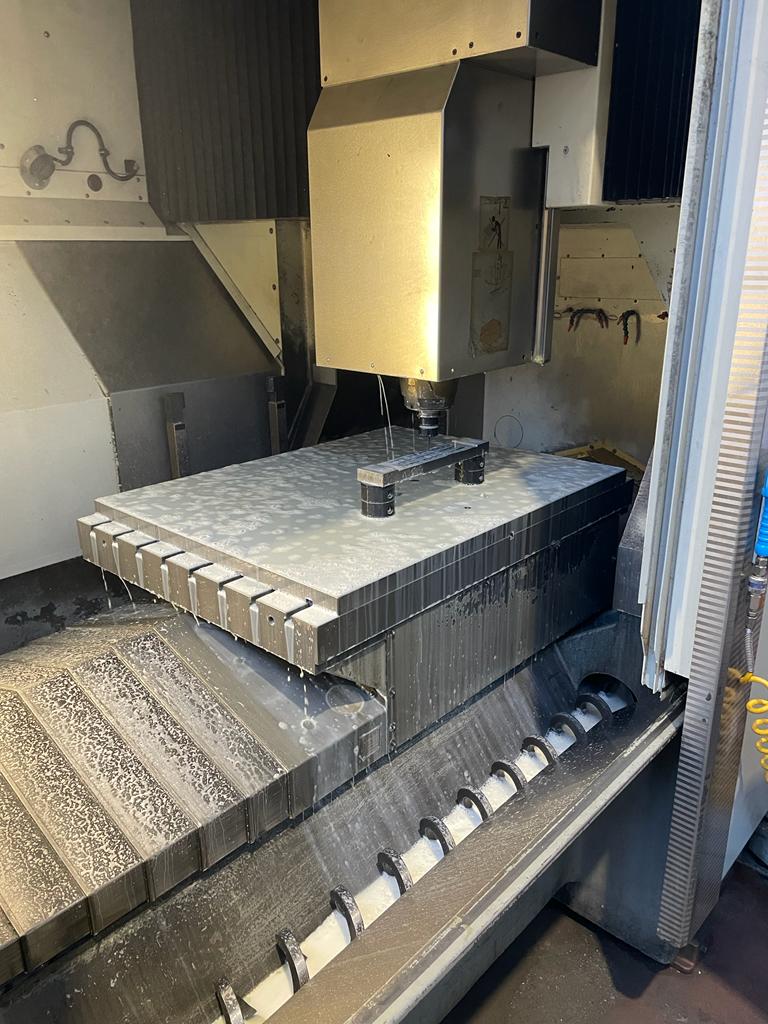

WORK TABLE:
Clamping area: 1,200 x 850 mm
Maximum load on the work table: 1,800 kg

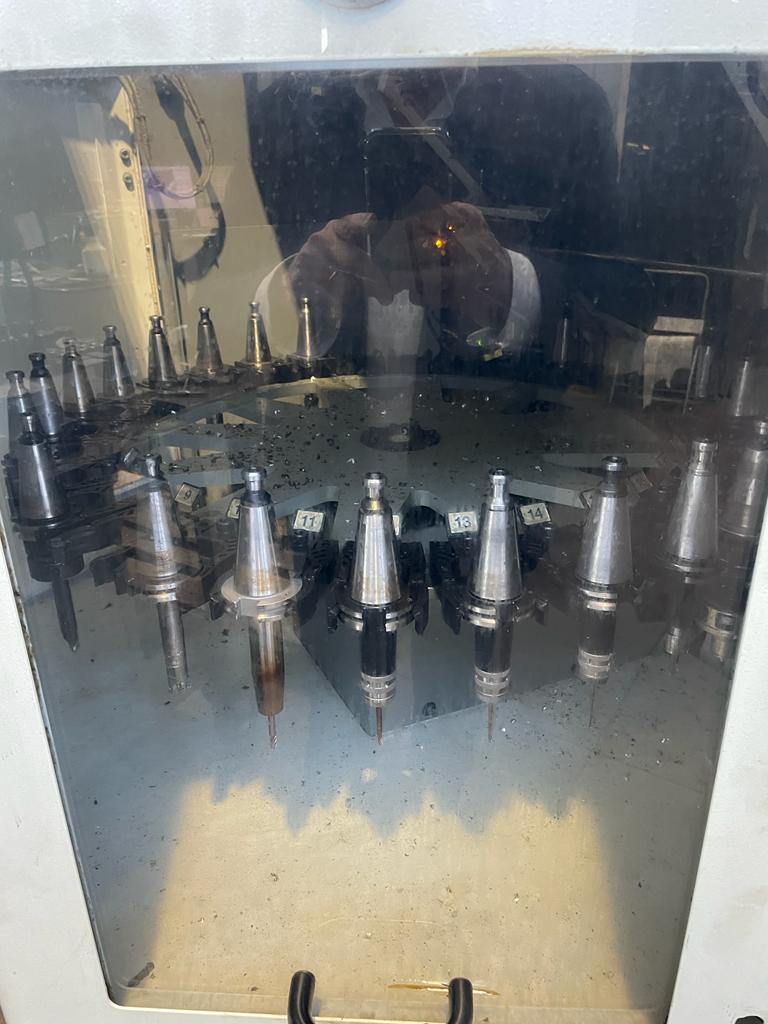

TOOL MAGAZINE:
Magazine capacity: 30
Max. tool diameter next to an occupied position: 80 mm
Max. tool diameter next to a free position: 140 mm
Max. tool length: 300 mm
DIMENSIONS AND WEIGHTS:
Machine dimensions: 5630x4600x3150 mm
Year of manufacture: 2005

Year: 2007

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
