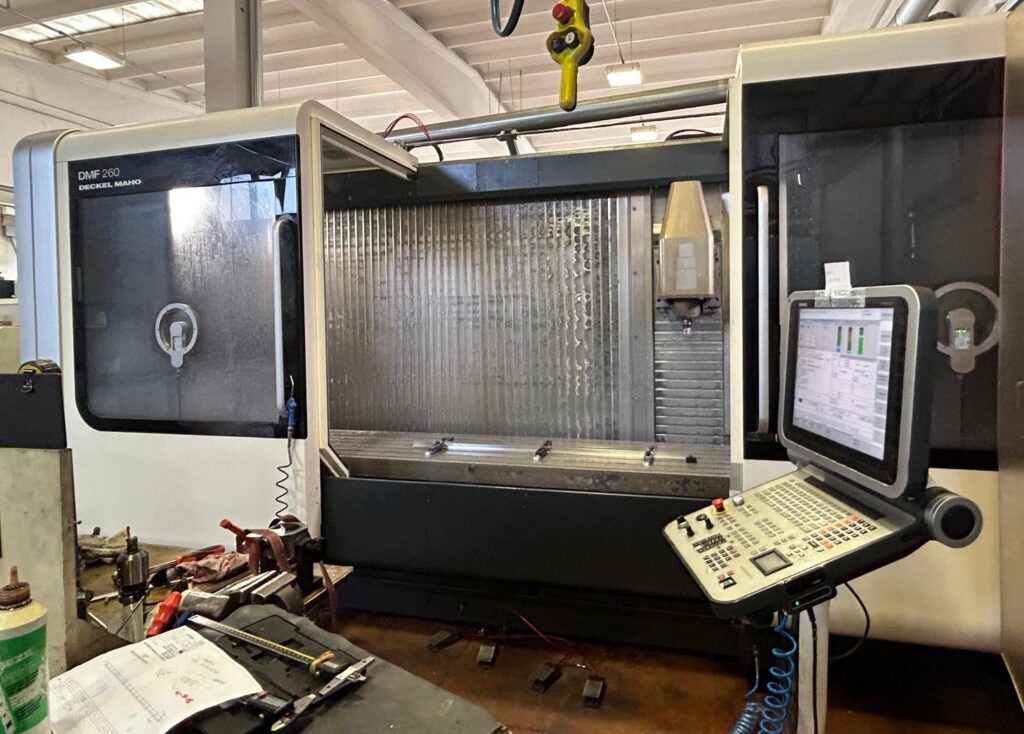

TECHNICAL DATA:

Heidenhain iTNC 530 CNC

FIELD OF WORK:

Longitudinal X: 2,600 mm

Transverse Y: 700 mm

Vertical Z: 700 mm

SPINDLE:

Max spindle speed: 18,000 rpm

Power (100%/40%): 25/35 kW

Spindle cone: HSK A63

FEEDS:

Rapids X/Y/Z: 40 m/min

TABLE:

Dimensions: 2900 x 700 mm

TOOL CHANGER:

Number of positions: n . 60

Type: chain with double socket

Included accessories:

• Overtable diameter 560 mm A and C axes
• Removable work area partition for pendulum work
• TS649 Infrared Probe
• Chip conveyor
• High pressure through the spindle: 40 bar
• No. 2 Rotoclear devices
• Pressurized optical lines
• Work Area Washing Gun
• Electronic handwheel

Year of manufacture: 2010

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
