TECHNICAL SPECIFICATIONS:

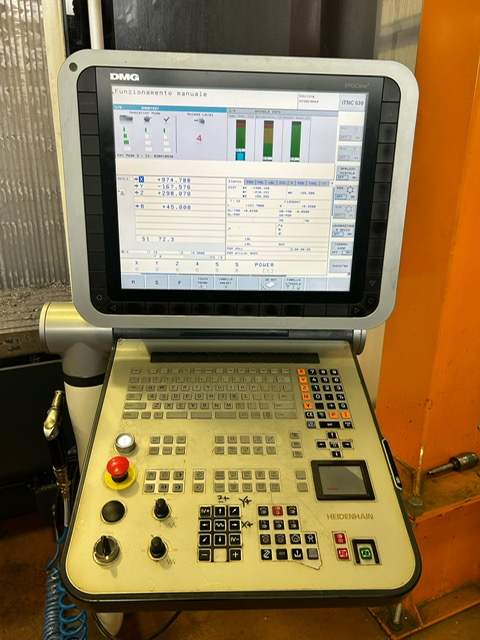

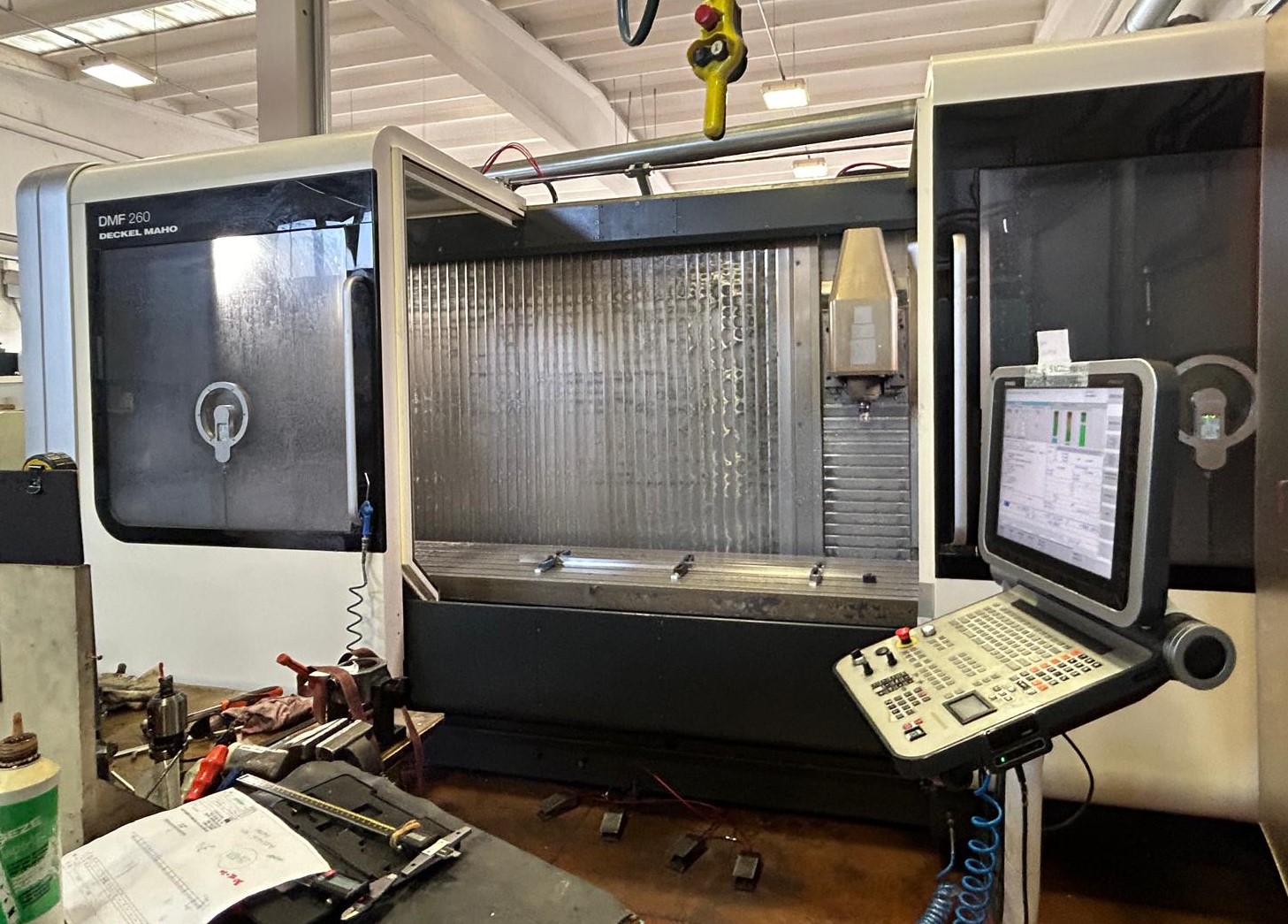

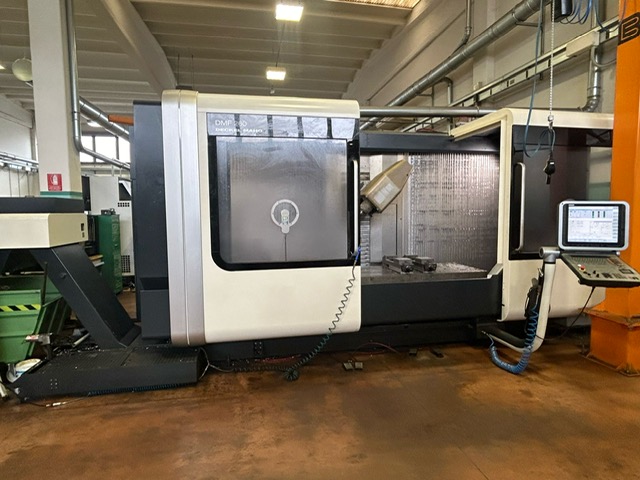

Heidenhain iTNC 530 CNC

X-axis: 2,600 mm

Y-axis width: 700 mm

Vertical Z: 700 mm

CHUCK:

Maximum rotational speed: 18,000 rpm

Power (100%/40%): 25/35 kW

Tool holder taper: HSK A63

AXIS DRIVE:

X/Y/Z rapid traverse speed: 40 m/min

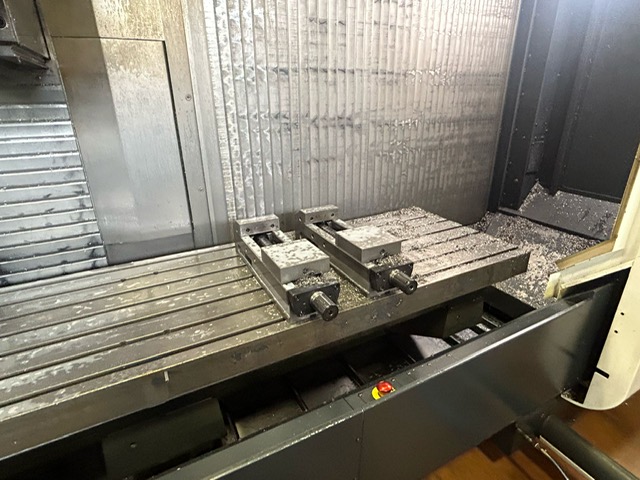

FIXED TABLE:

Clamping surface: 2900 x 700 mm

TOOL CHANGE:

Warehouse locations: n . 60

Type: chain-type with dual grip

INCLUDED ACCESSORIES:

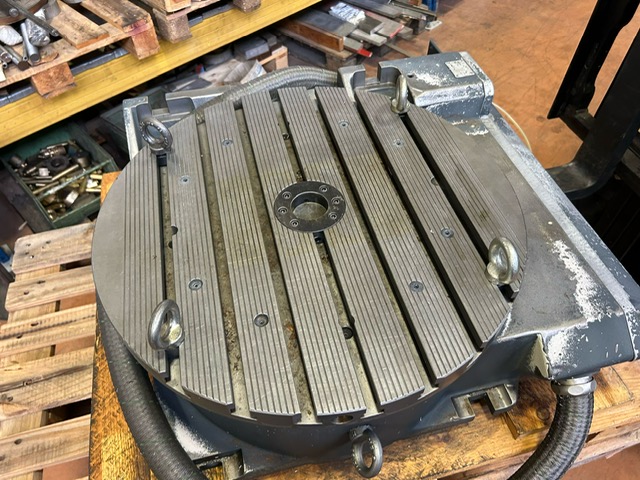

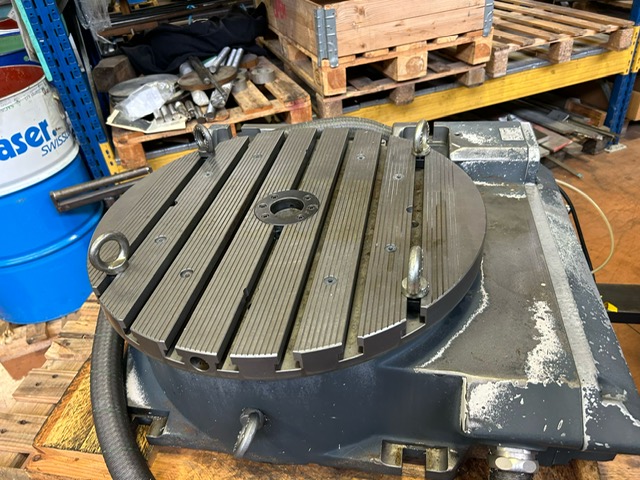

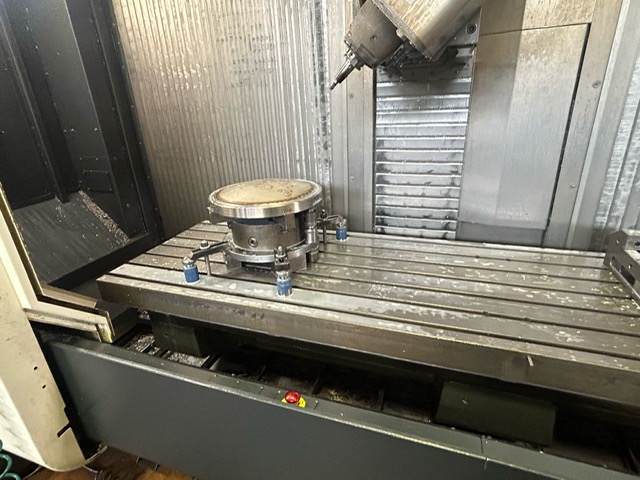

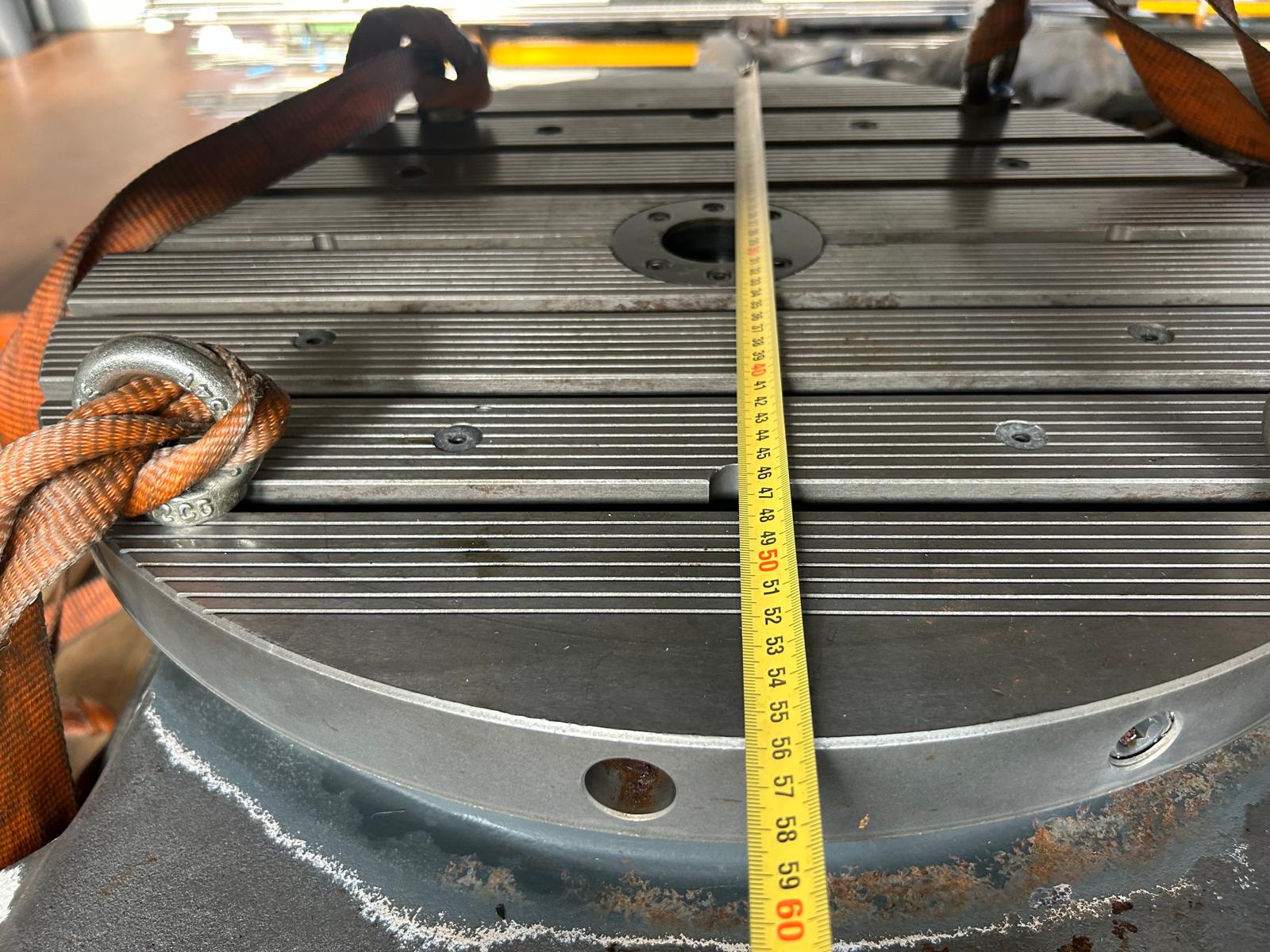

Table top diameter 560 mm on the A and C axes

Removable work area partition for pendulum-style machining

TS649 Infrared Sensor

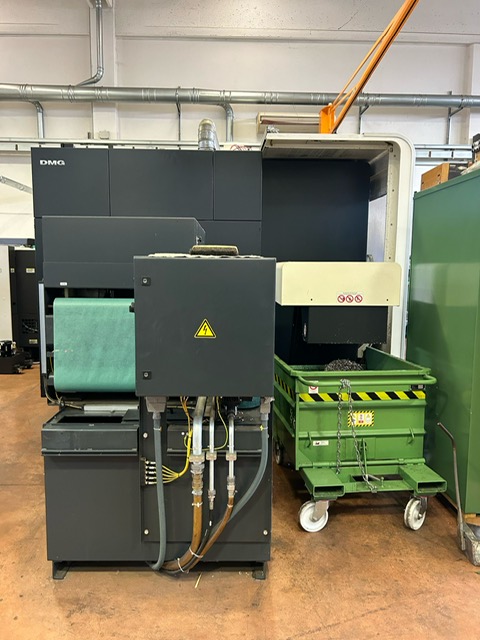

Chip Conveyor

High-pressure indoor refrigeration, 40 bar

2 Rotoclear devices

Pressurization of optical lines

Work Area Cleaning Gun

Electronic Flyer

Year built: 2010

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
