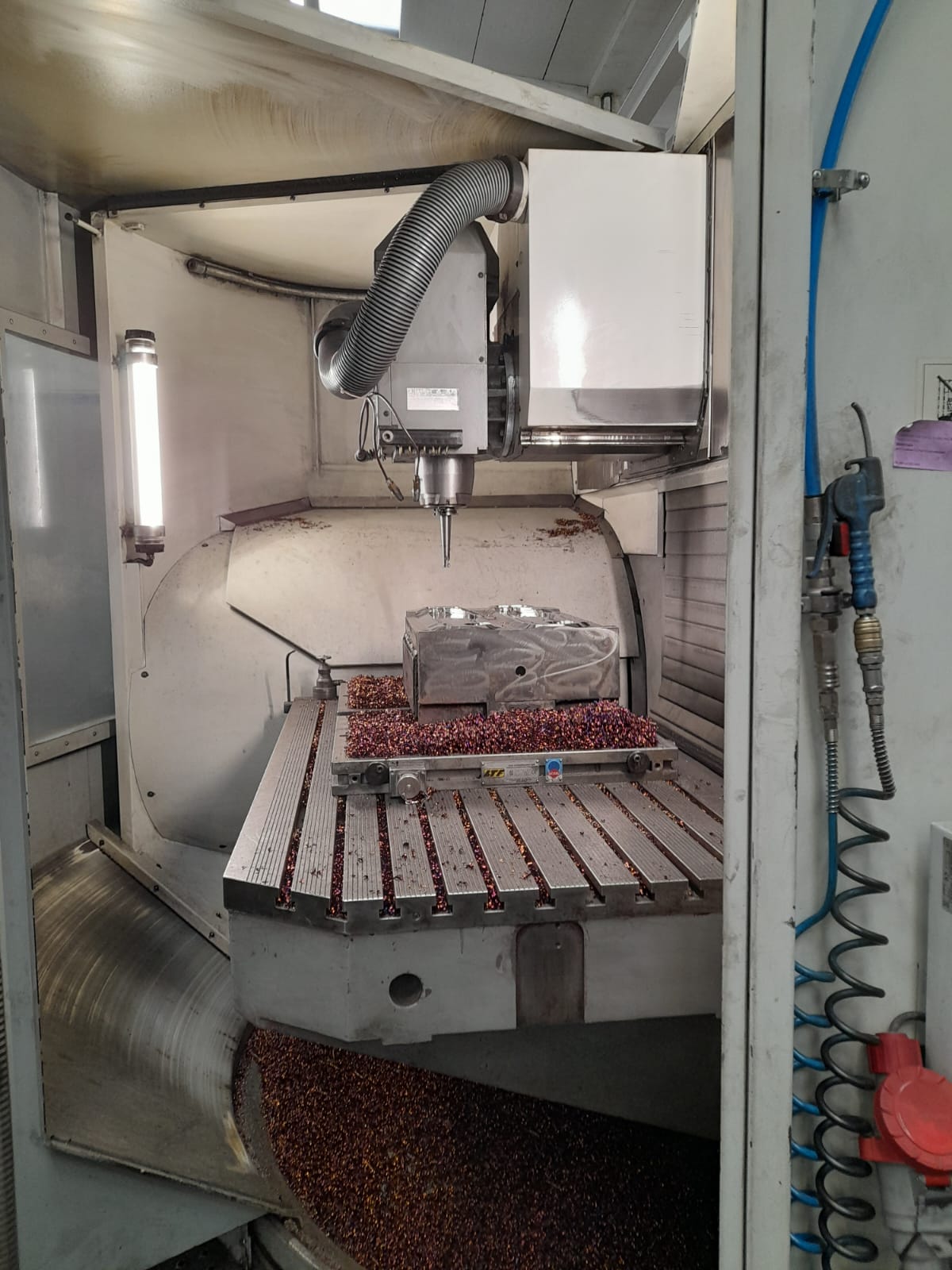

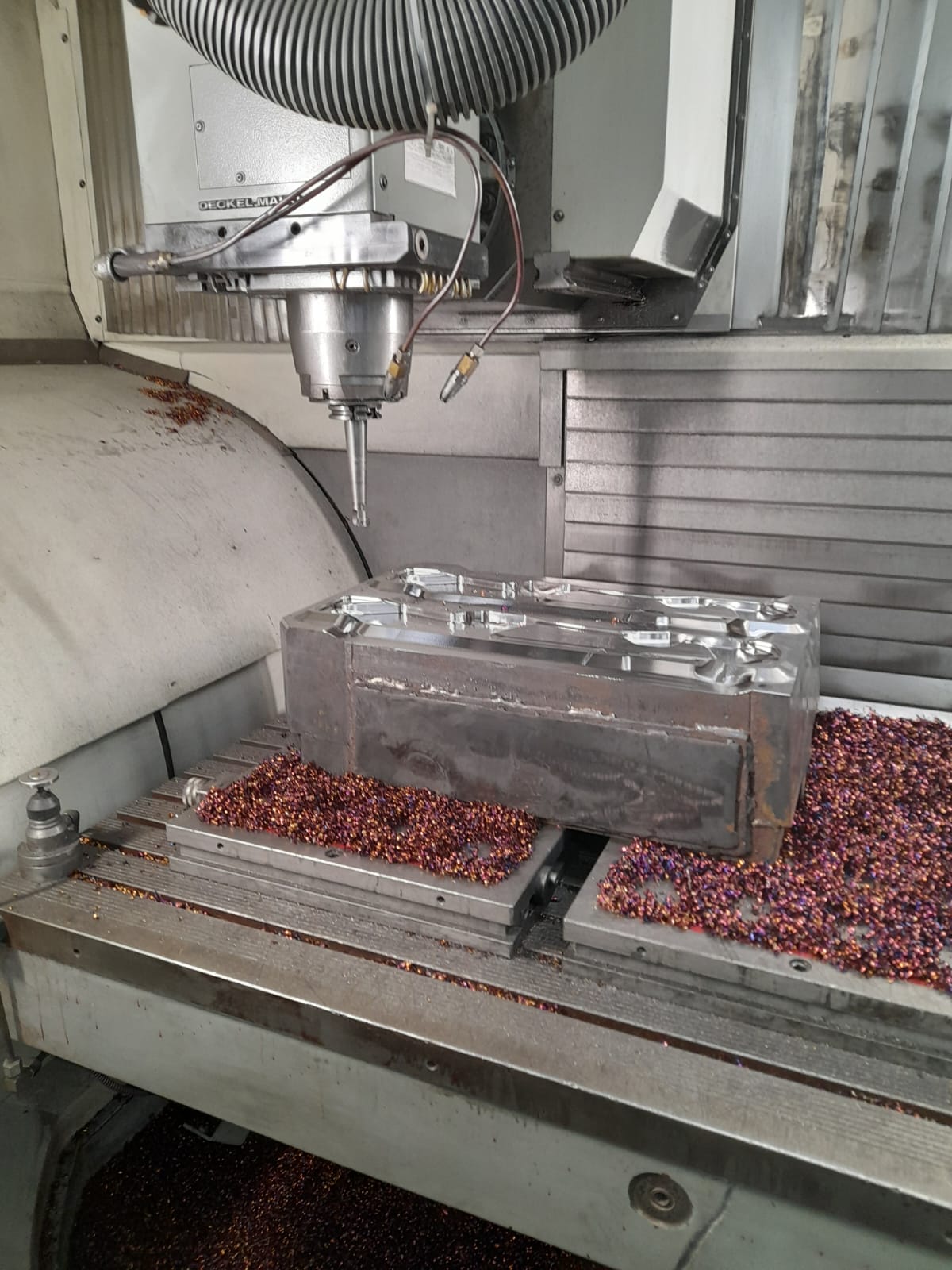

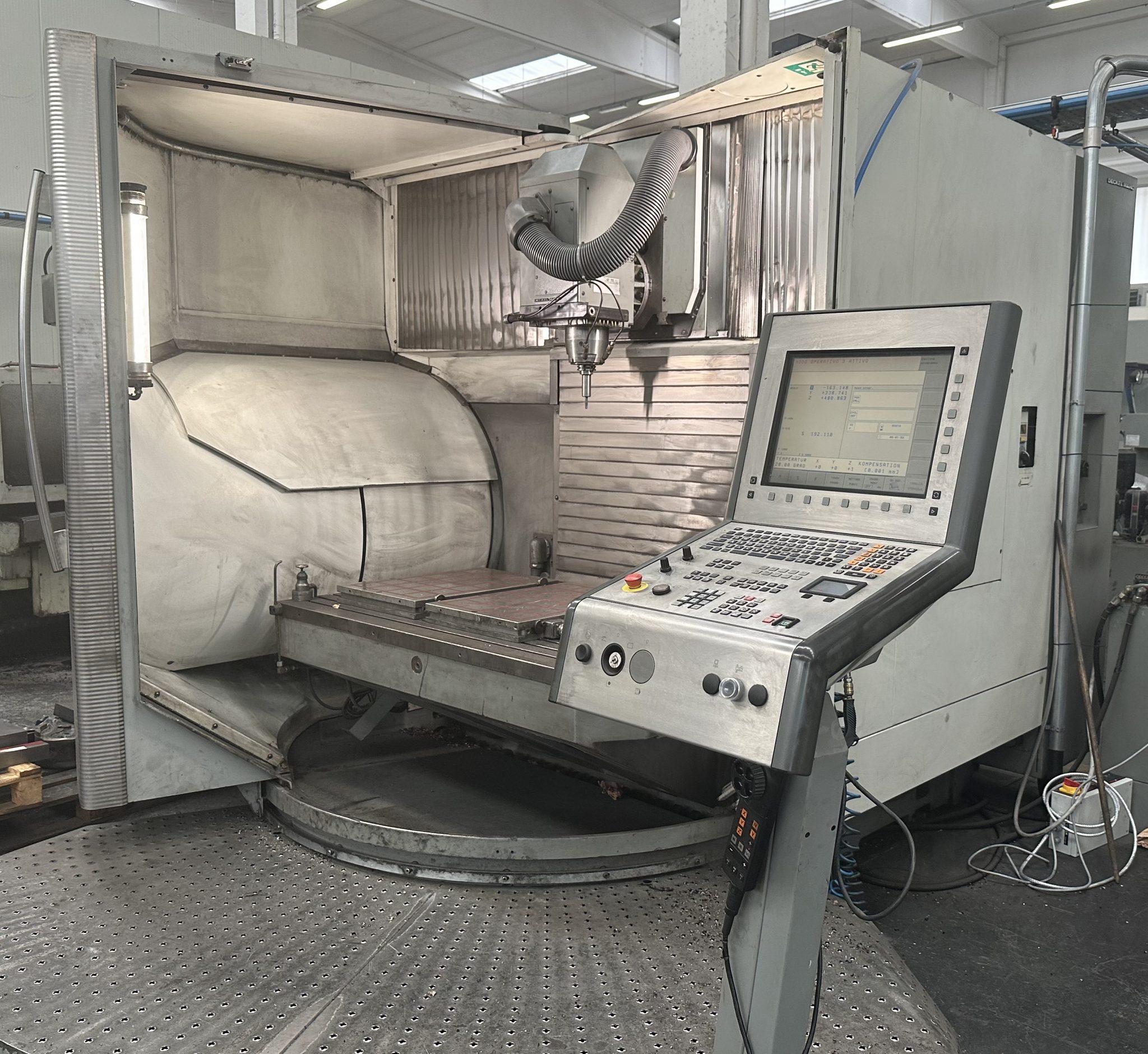

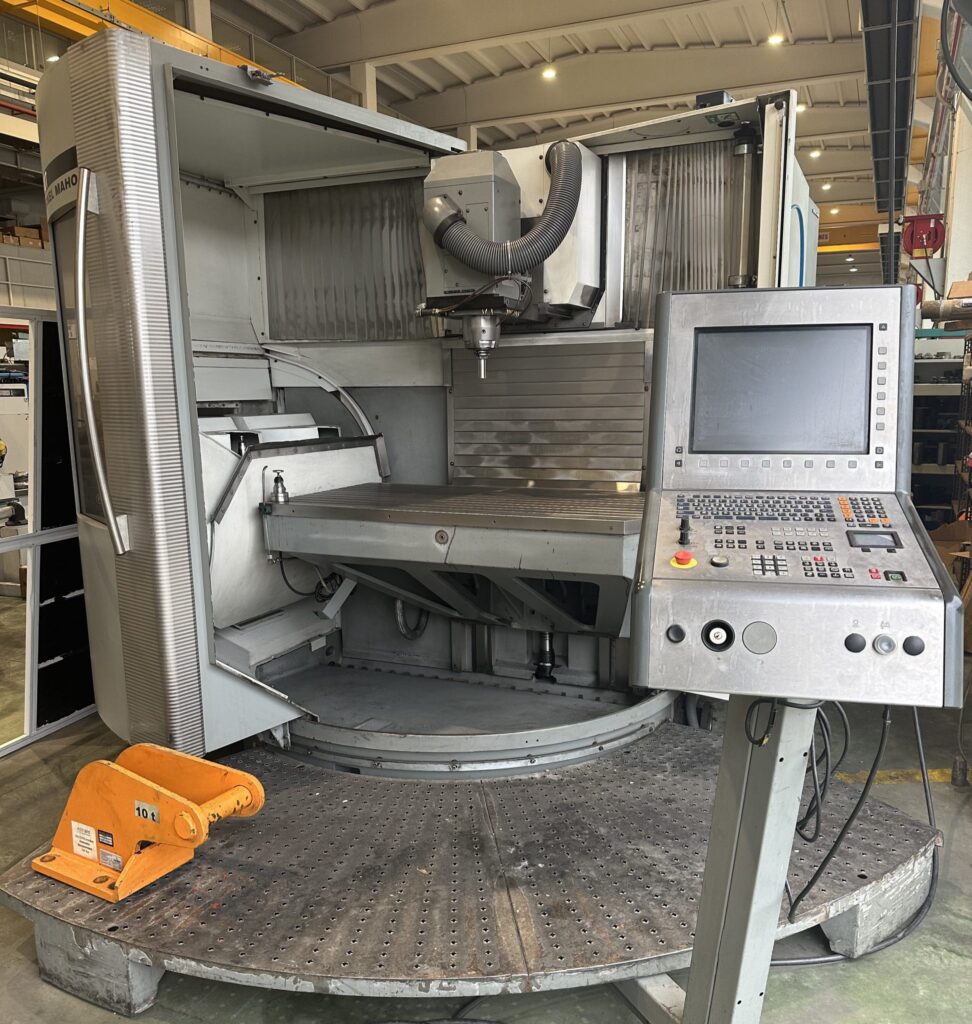

DECKEL MAHO DMU 100 T 3-AXIS VERTICAL MACHINING CENTER Sold-out

DECKEL MAHO DMU 100 T 3-AXIS VERTICAL MACHINING CENTER

Machining Centers
Request Information

Technical Specifications

TECHNICAL SPECIFICATIONS:

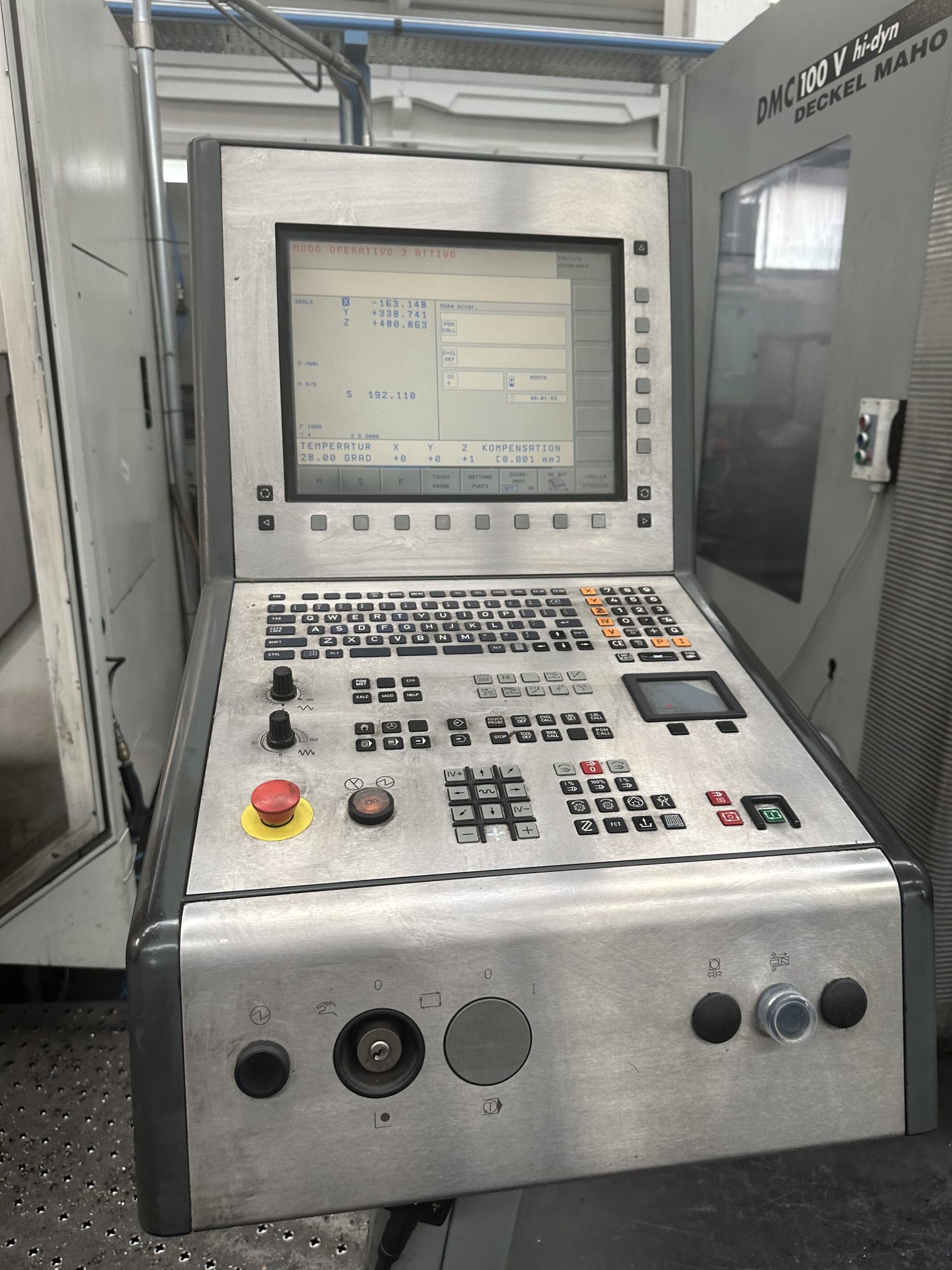

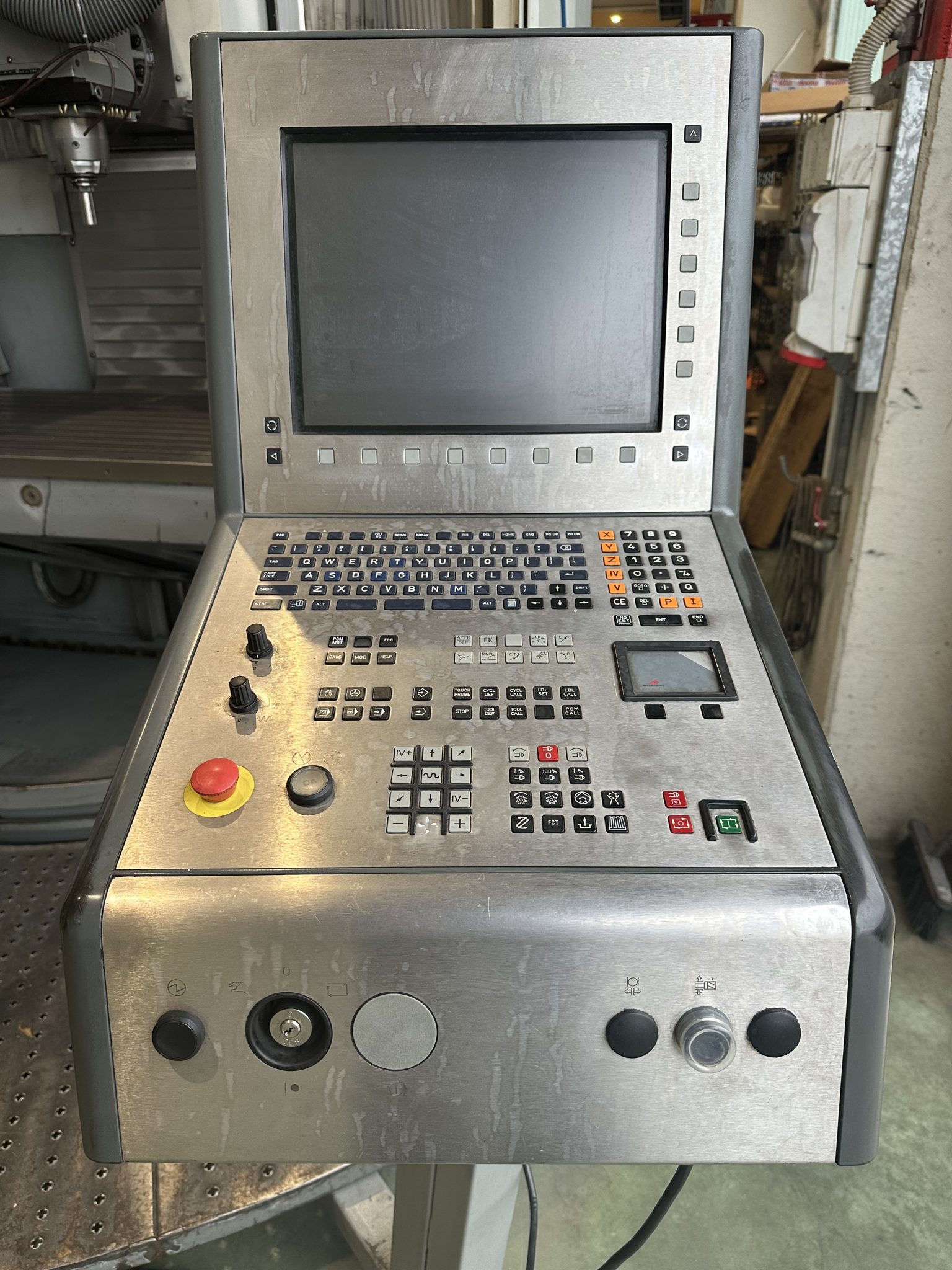

Heidenhain iTNC 530 CNC

WORK AREA

Length X: 1,080 mm

Y-Axis: 710 mm

Vertical Z: 710 mm

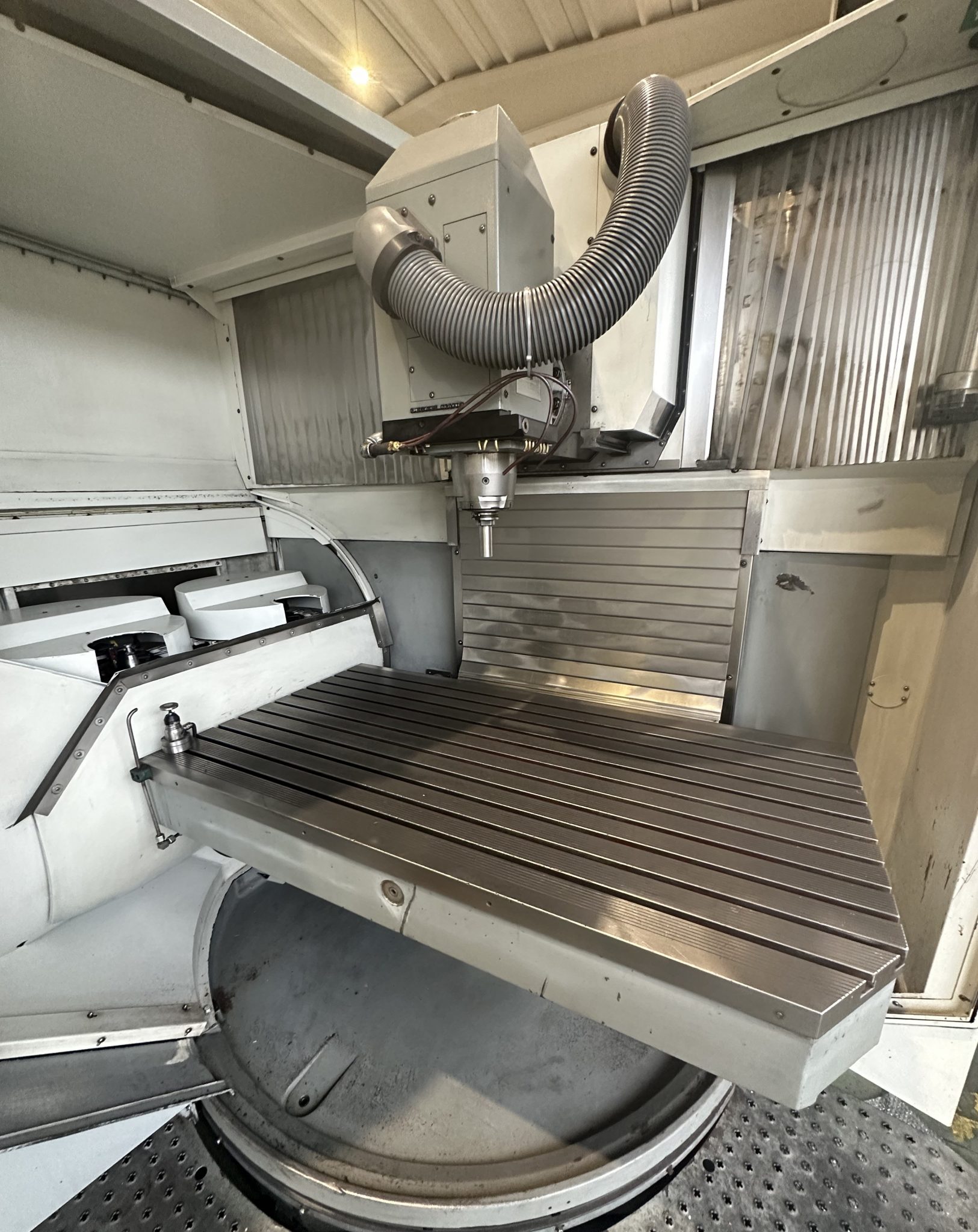

TABLE

Table dimensions: 1,500 x 800 mm

Load capacity: 900 kg

Machine weight: 9,500 kg

AXIS FEED RATE

Rapid feed rates (X, Y, Z): 30/30/30 m/min

ELECTRIC SPINDLE

Maximum rotational speed: 18,000 rpm

Spindle power: 28 kW

Spindle torque: 121 Nm

Tool holder: ISO 40 DIN 69871

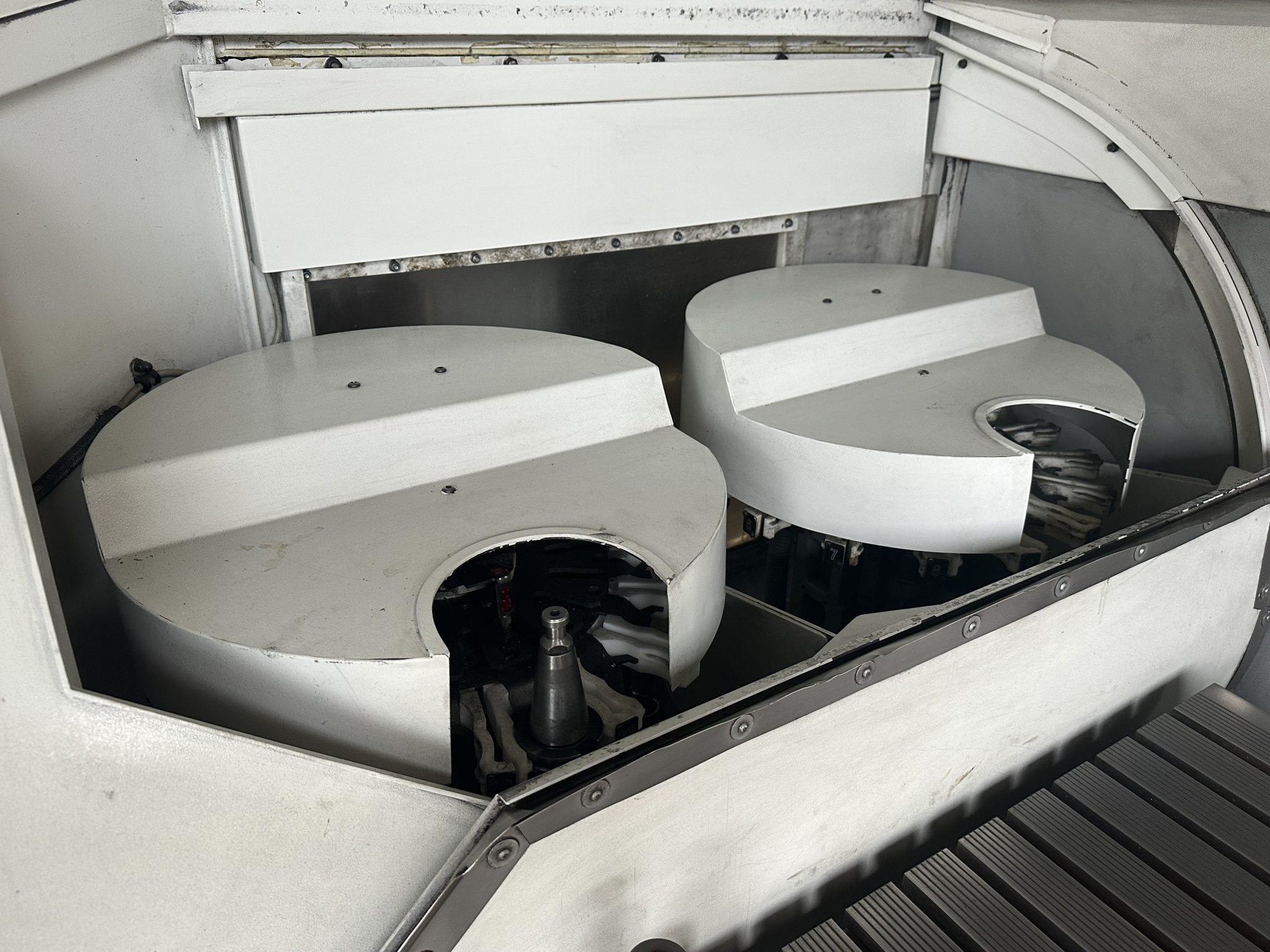

TOOL CHANGE:

Number of tools: 32

Machine comes complete with:

  • Remote-Controlled Electronic Flapper

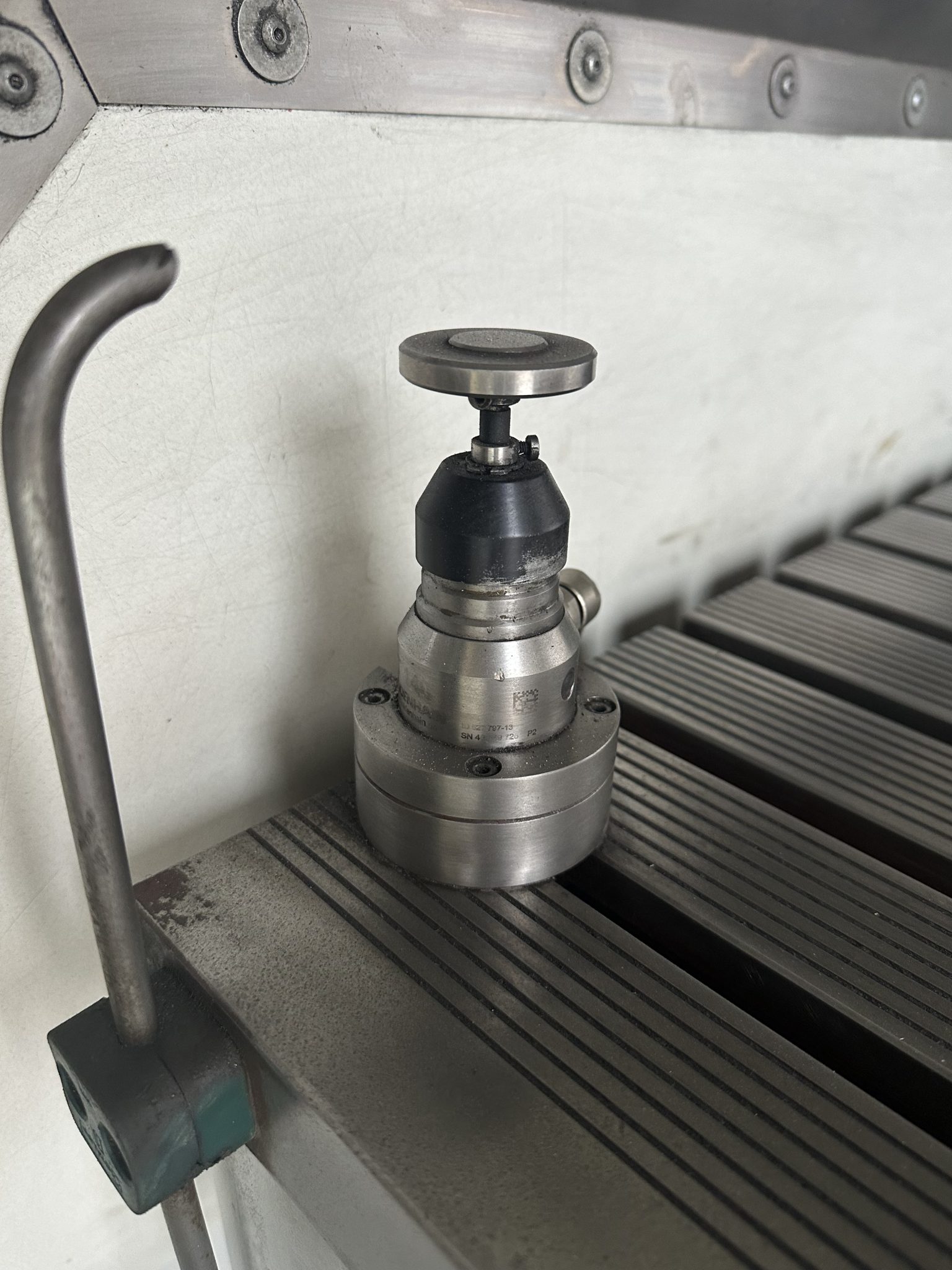

  • Tool Presetting
  • Instruction Manuals and EC Declaration

Year built: 2003

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
