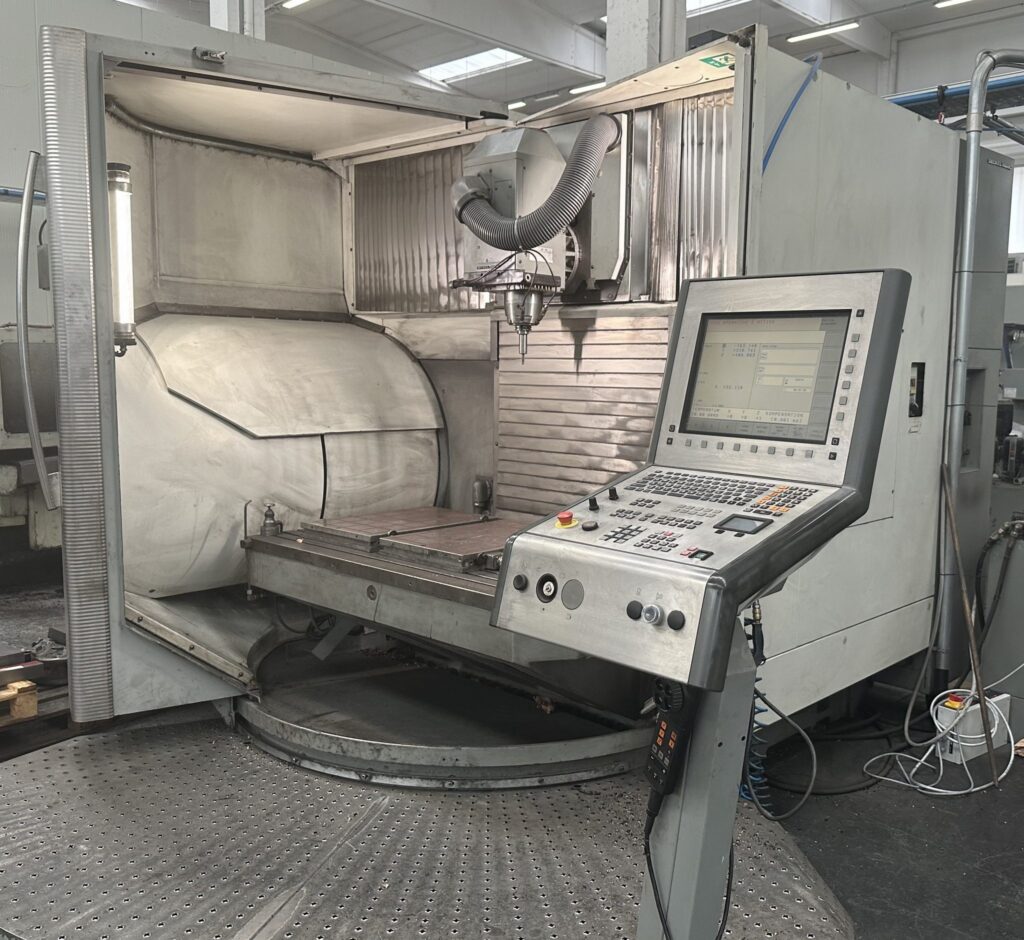

Heidenhain iTNC 530 CNC

WORK AREA
Length X: 1,080 mm
Transverse Y: 710 mm
Vertical Z: 710 mm

TABLE
Table dimensions: 1,500 x 800 mm
Load capacity: 900 kg
Machine weight: 9,500 kg

AXIS FEEDING
Rapid feed rate (X, Y, Z): 30/30/30 m/min

ELECTROSPINDLE
Maximum rotational speed: 18,000 rpm
Spindle power: 28 kW
Spindle torque: 121 Nm
Tool holder: ISO 40 DIN 69871

TOOL CHANGER:
Number of tools: 32

Machine comes complete with:
• Remote electronic handwheel
• Presets
• Instruction manuals and CE Declaration
