TECHNICAL SPECIFICATIONS:

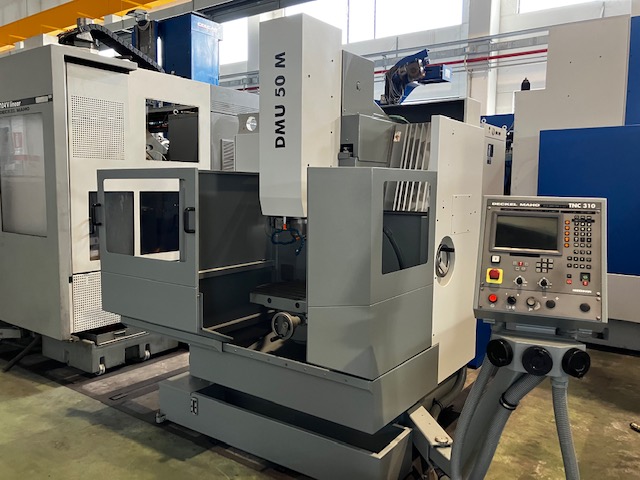

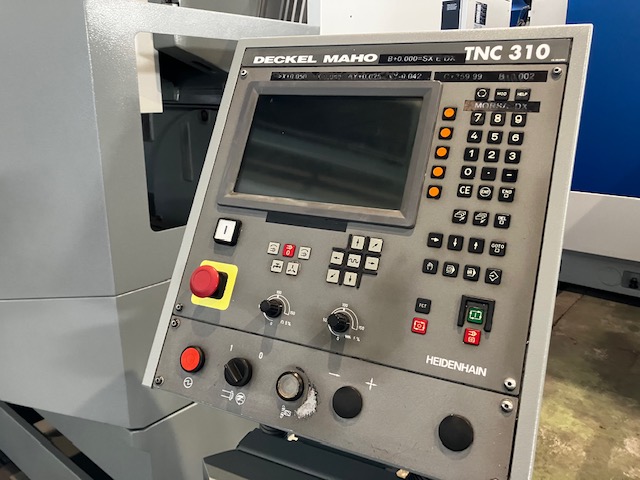

Heidenhain TNC 310 CNC

WORK AREA:

Longitudinal X: 500 mm

Y-axis: 400 mm

Vertical Z: 400 mm

Rotation: 360°

Tilt: -10°/+95°

CHUCK:

Rotational speed: 20–4,500 rpm

Power (100%/40%): 9/13 kW

Torque (100%/40%): 57/82 Nm

Tool holder taper: SK 40

AXIS DRIVE:

Feed rate: 5,000 mm/min

X/Y/Z rapid traverse speed: 5 m/min

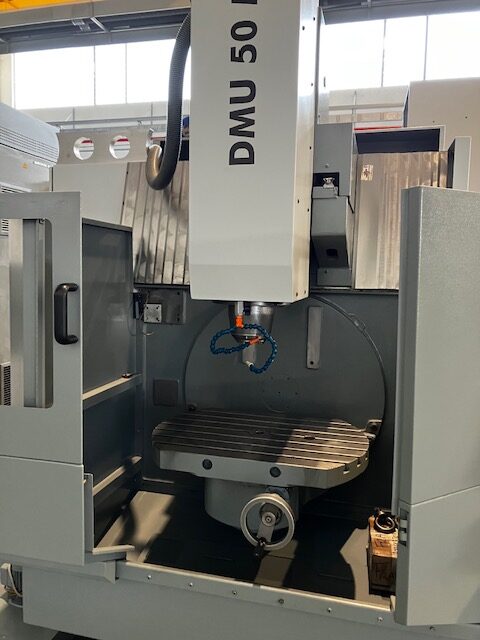

TABLE:

Manual rotating table with a swiveling axis

Clamping surface: 700 x 500 mm

Maximum load: 200 kg

Groove spacing/dimension: 63 mm / 14 H7

Number of grooves: 7

DIMENSIONS AND WEIGHTS:

Dimensions: 1,783 x 1,647 x 2,534 mm (h)

Weight: 3,000 kg

Year: 1999

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
