TECHNICAL SPECIFICATIONS:

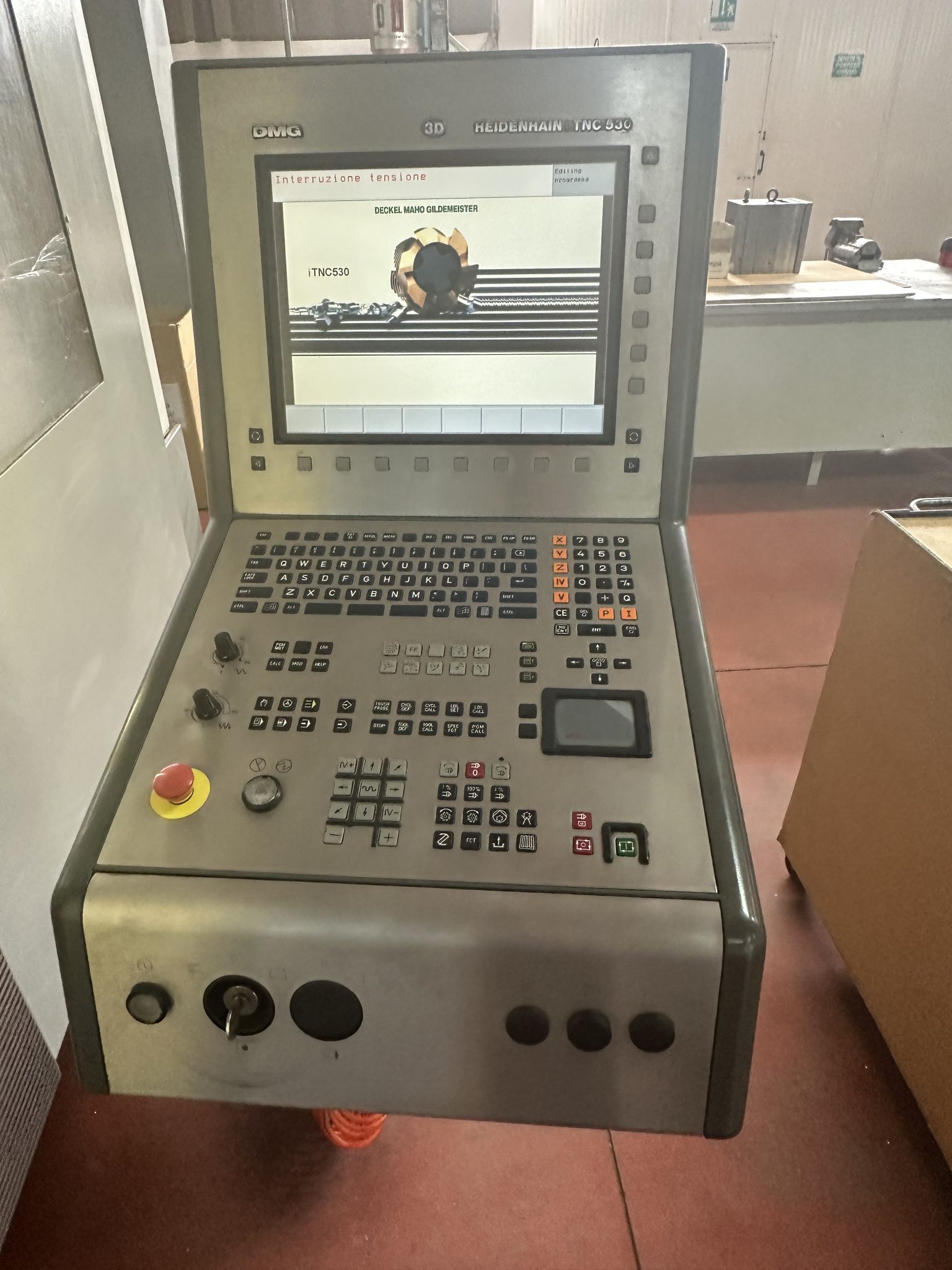

Heidenhain iTNC 530 CNC
WORKING AREA:
Longitudinal X: 640 mm
Transverse Y: 600 mm
Vertical Z: 500 mm

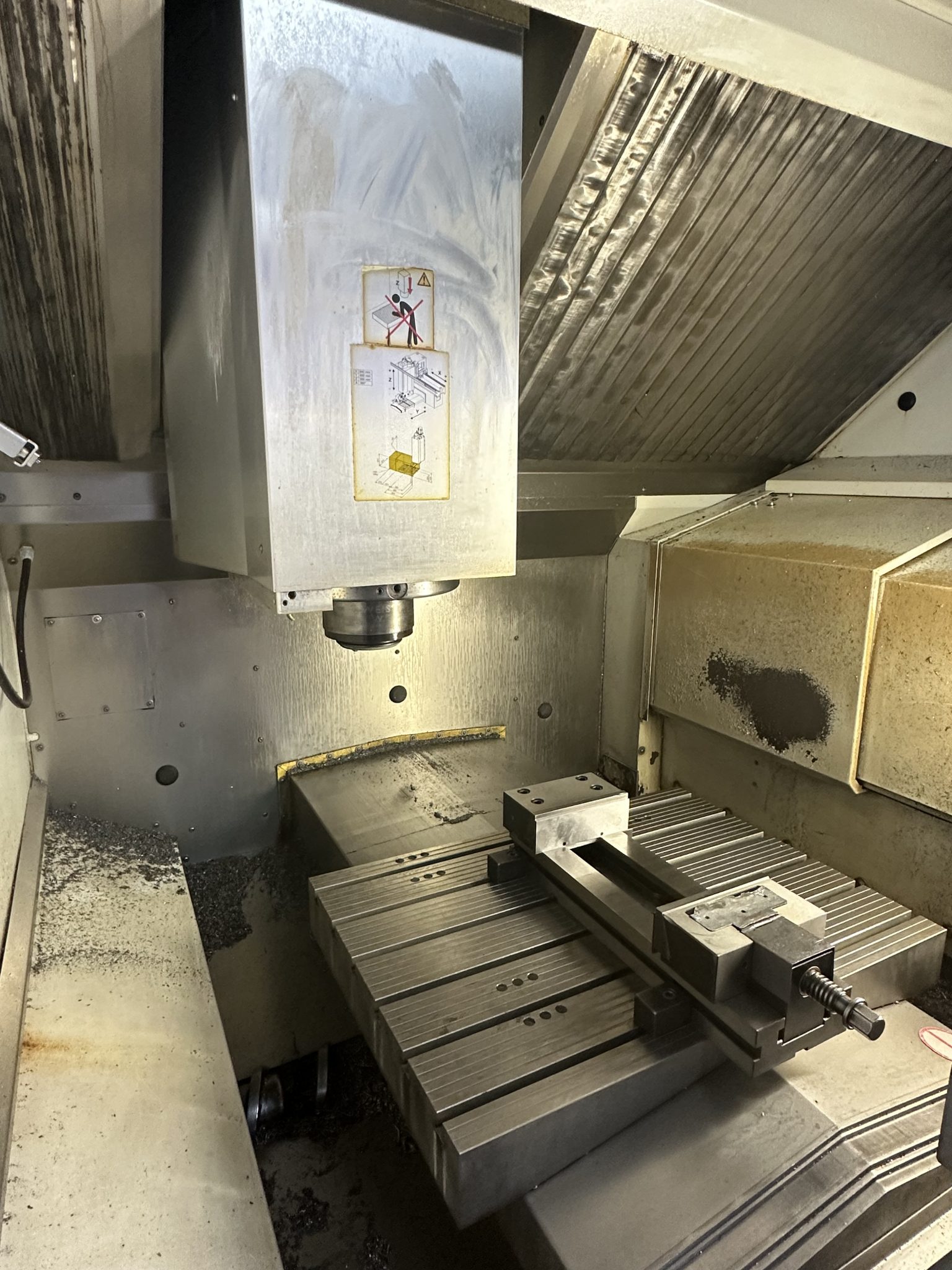

SPINDLE:
Spindle Taper: SK 40
Rotational Speed: 12,000 rpm
Spindle Power (40/100% ED): 19/13 kW
Torque (40/100% ED): 100/70 Nm

FEED RATES:
Feed force X/Y/Z: N 7,000
Feed speed: mm/min 1 – 40,000
Rapid traverse X/Y/Z: m/min 70/40

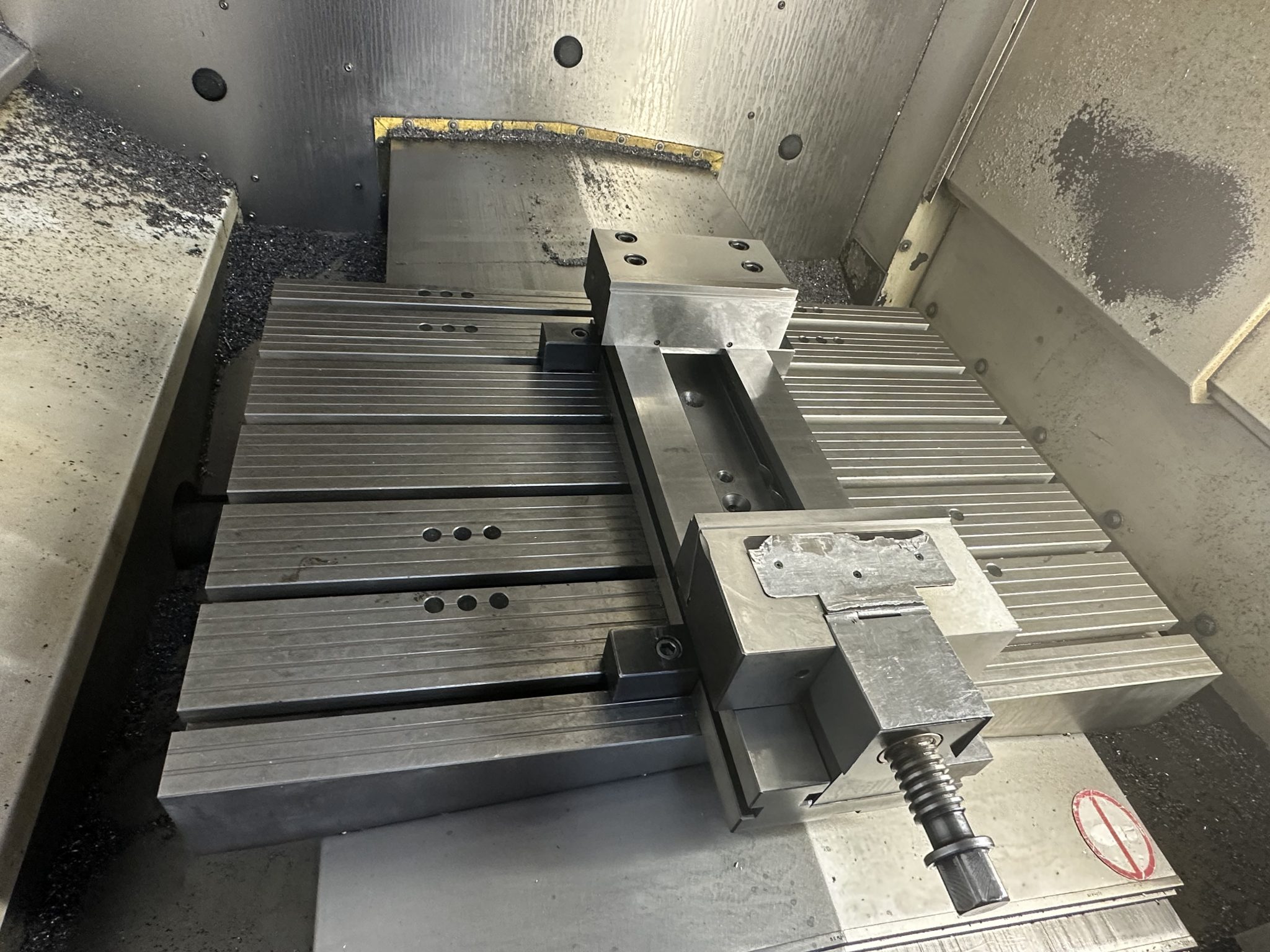

WORKPIECE TABLE:
Clamping surface: 850×600 mm
Feed height: 850 mm
Max. table load: 600 kg

TOOL MAGAZINE:
Magazine capacity: 30
Max. tool diameter: 100 mm
Max. tool diameter with adjacent empty slots: 140 mm
Max. tool length: 300 mm
Max. tool weight: 7 kg

Machine comes complete with:
• Renishaw probe
• Instruction manuals and EC Declaration of Conformity

Year built: 2006

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
