TECHNICAL SPECIFICATIONS:

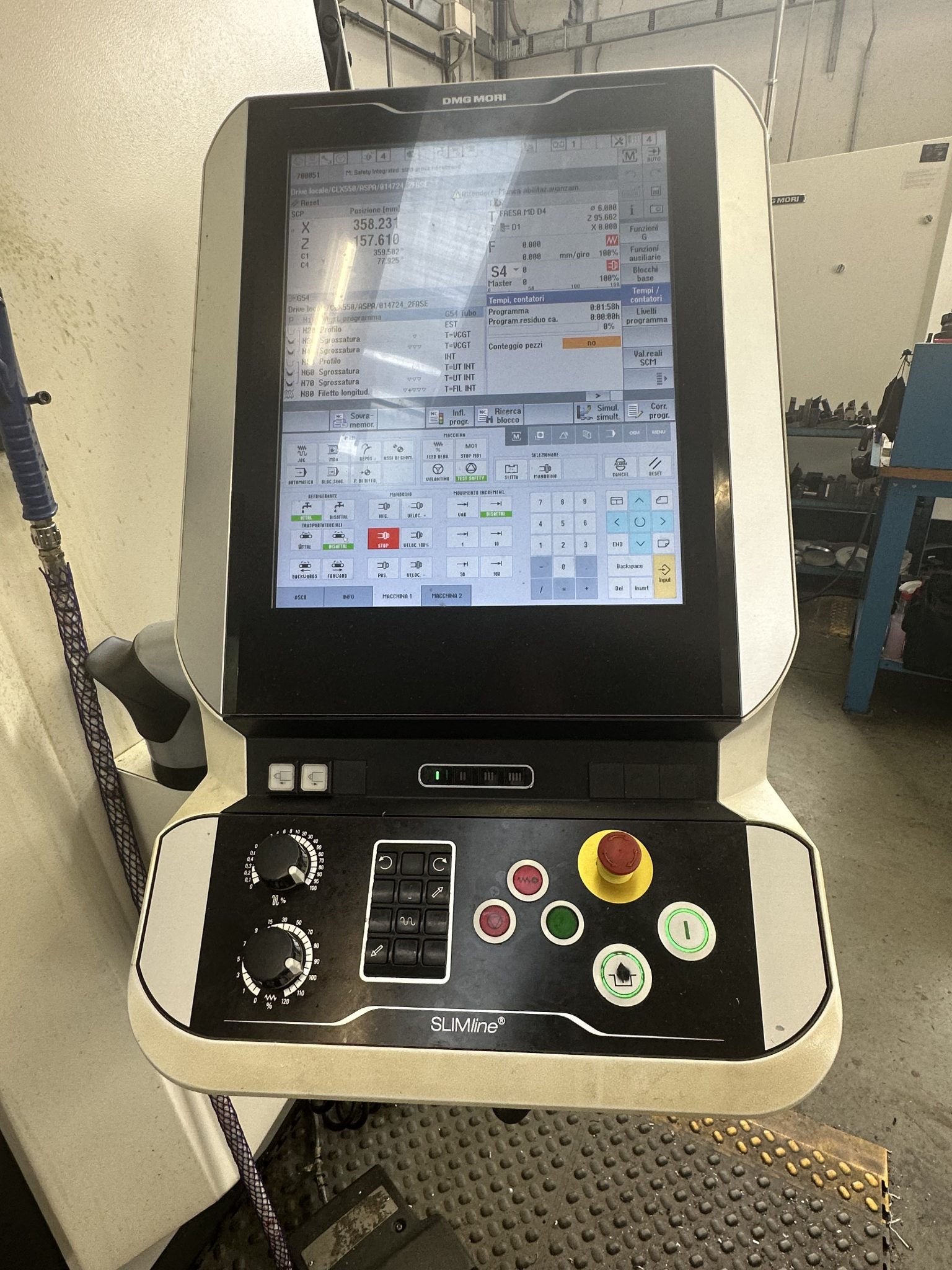

Siemens 840 D CNC

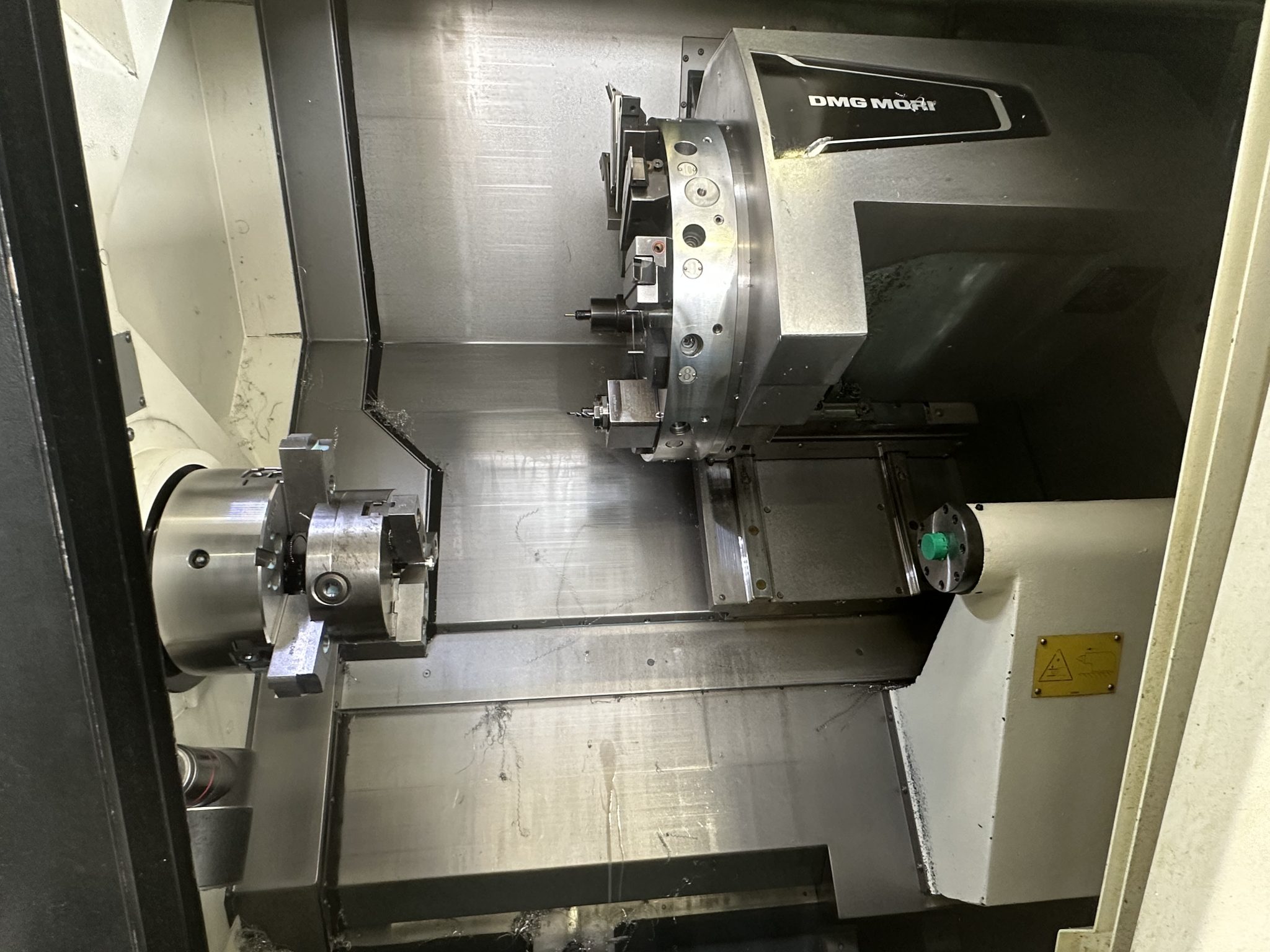

WORK AREA:

Rotation diameter on the bench: 580 mm

Rotation diameter on the transverse slide: 360 mm

Maximum turning diameter: 320 mm

X-axis travel: 242.5 mm

Z-axis travel: 540 mm

Fast (X/Z): 30 m/min

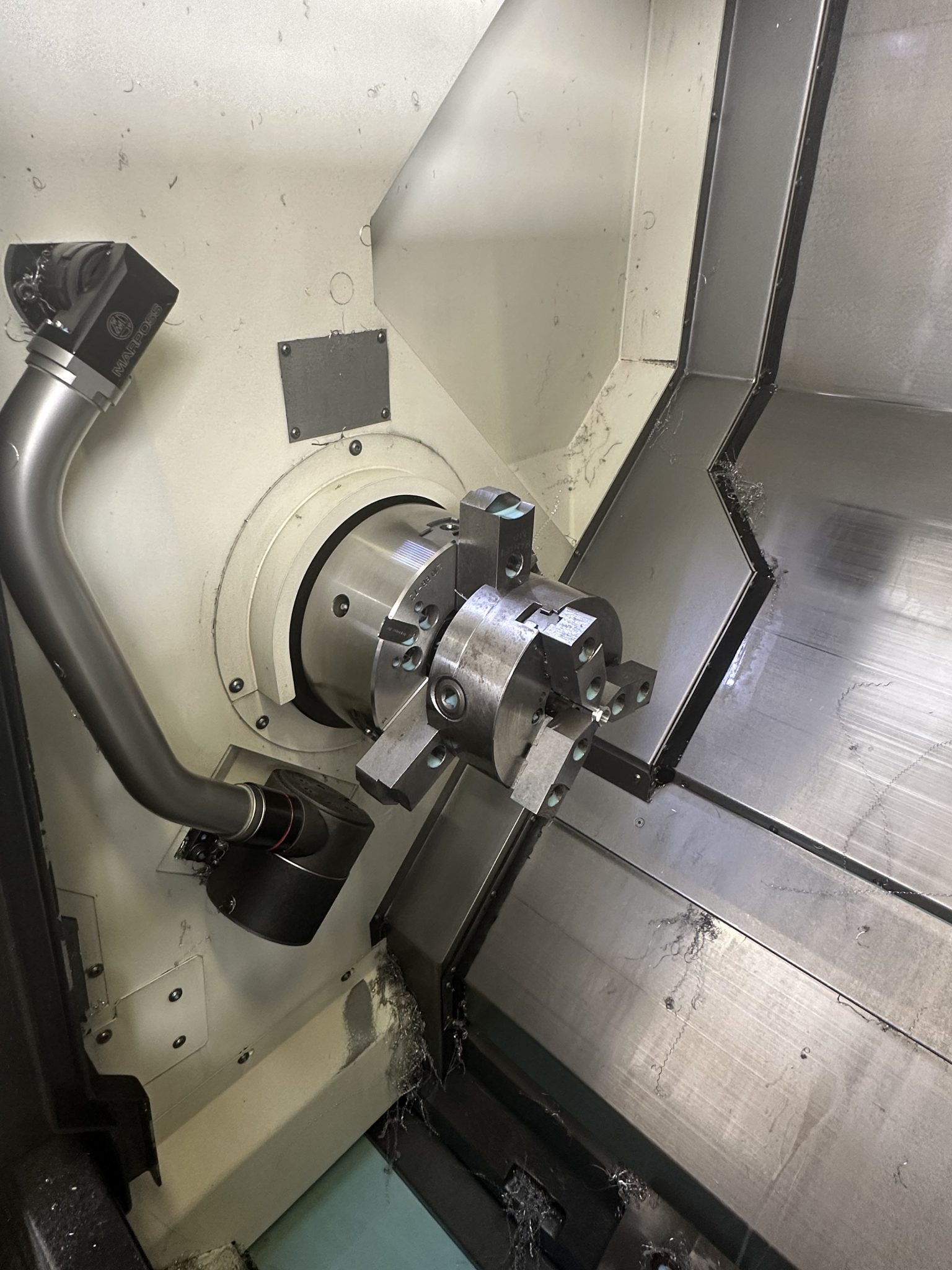

CHUCK:

Spindle nose: A2-6

Bar clearance: 65 mm

Front bearing diameter: 120 mm

Self-centering diameter: 210 mm

Engine power (40/100% ED): 16.2/12.6 kW

Max torque (40/100% ED): 62/48 Nm

Maximum RPM: 5,000 rpm

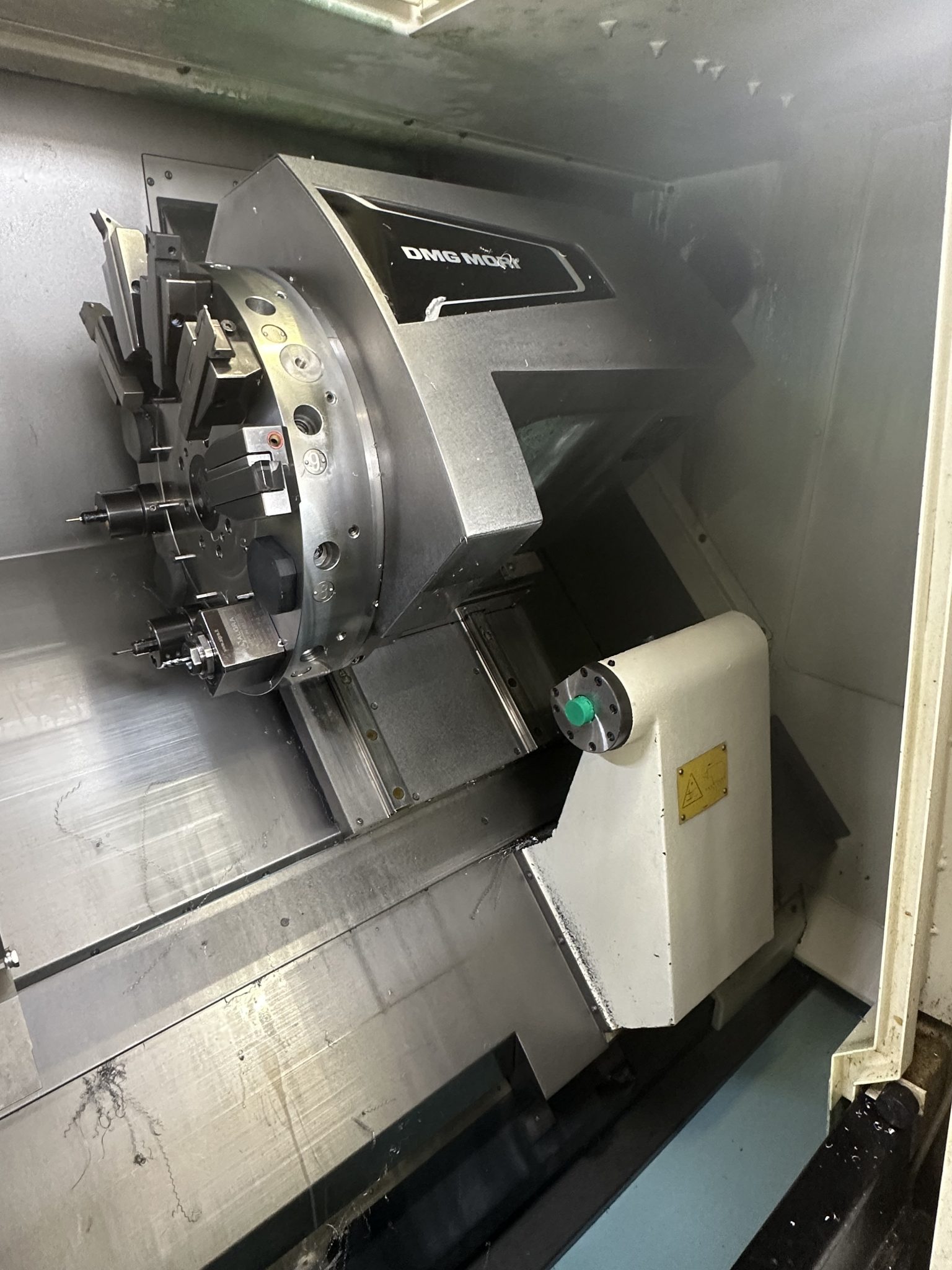

TORRETTA:

Number of motorized tool stations: 12 x VDI 30

Maximum power (40% ED): 5.44 kW

Max torque (40% ED): 20 Nm

Maximum RPM: 5,500 rpm

COUNTERPOINT:

Tailstock travel: 550 mm

Tailstock cone attachment: CM 4

Maximum thrust force of the tailstock: 4 kN

Machine weight: 4,700 kg

Machine comes complete with:

• Autoblok Self-Centering, 210 mm diameter
• Presetting

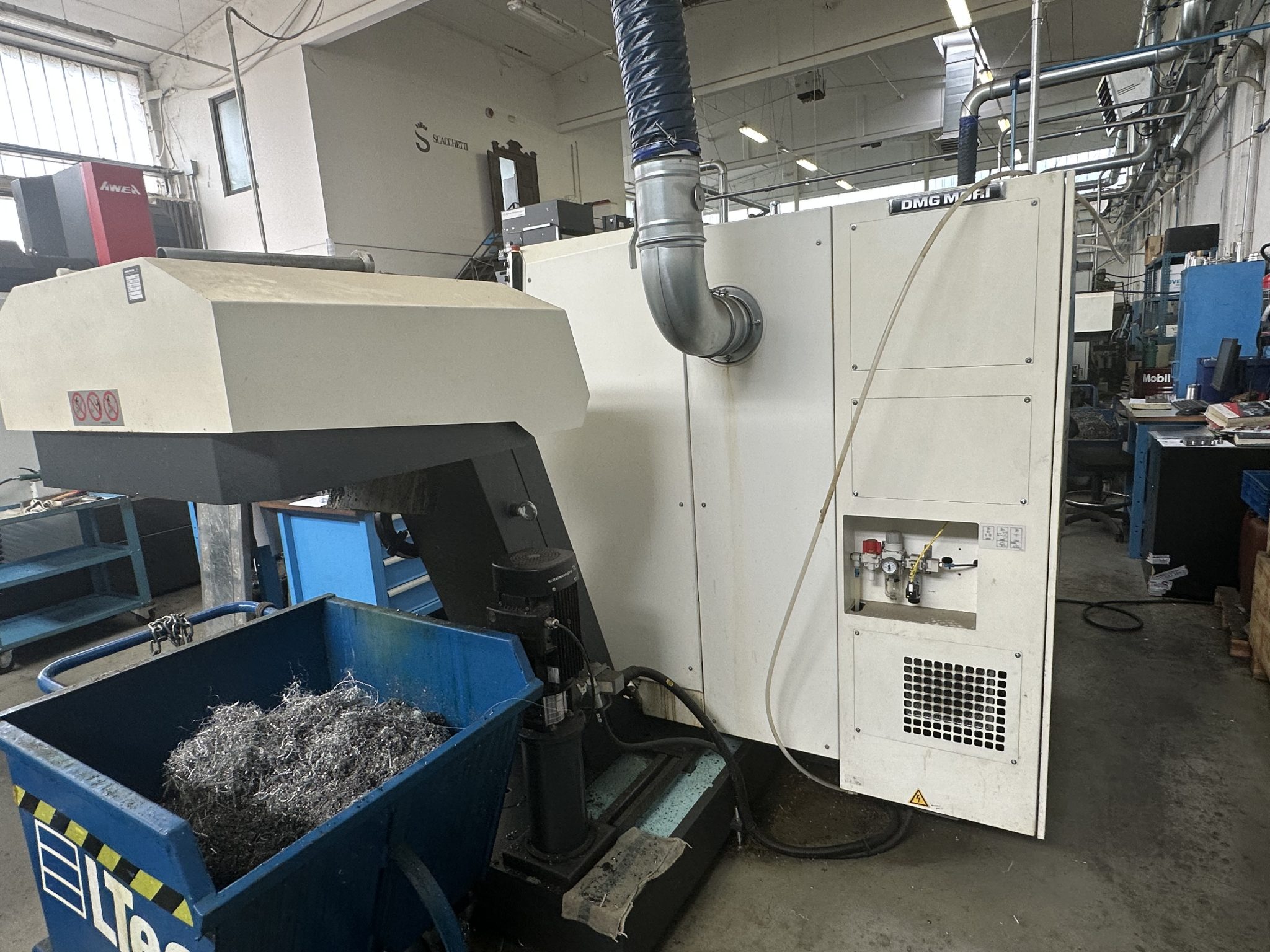

• Chip Conveyor
• Cycle Tailstock
• Washing Gun
• Instruction Manuals and EC Declaration

Year built: 2018
