Technical Specifications
TECHNICAL SPECIFICATIONS:
Fanuc Slim Line CNC
WORK AREA:
Rotation diameter on the bench: 700 mm
Rotation diameter on the cross slide: 500 mm
Maximum turning diameter: 480 mm
Y-axis traverse: ±60 mm
X-axis travel: 307.5 mm
Z-axis travel: 1,240 mm
Rapid (X / Y / Z): 30 / 22.5 / 30 m/min
CHUCK:
Spindle nose: A2 – 8
Bar clearance: 102 mm
Front bearing diameter: 150 mm
Autoblock self-centering diameter: 250 mm
Engine power (40 / 100% ED): 33/22 kW
Max. torque (40 / 100% ED): 630/420 Nm
Maximum RPM: 3,250 rpm

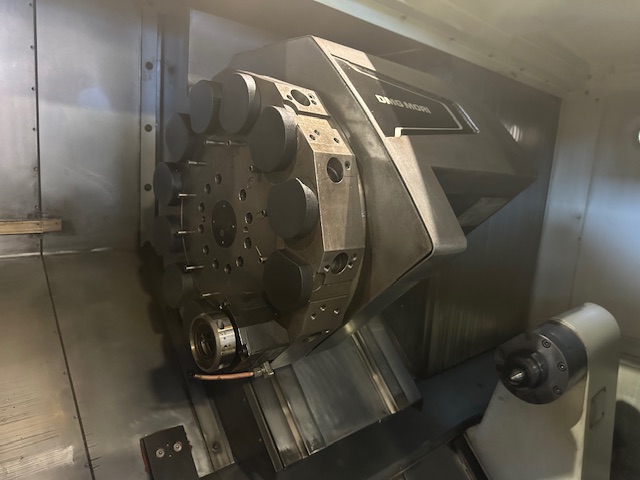

TORRETTA:
Number of motorized tool stations: 12 x VDI 40
Maximum power (40% ED): 5.44 kW
Max torque (40% ED): 20 Nm
Maximum RPM: 4,000 rpm
COUNTERPOINT:
Tailstock travel: 1,200 mm
Tailstock cone attachment: CM 5
Maximum thrust force of the tailstock: 12 kN
DIMENSIONS AND WEIGHT:
Weight with chip conveyor: 7,500 kg
Installation area: 7.4m²
Machine comes complete with:

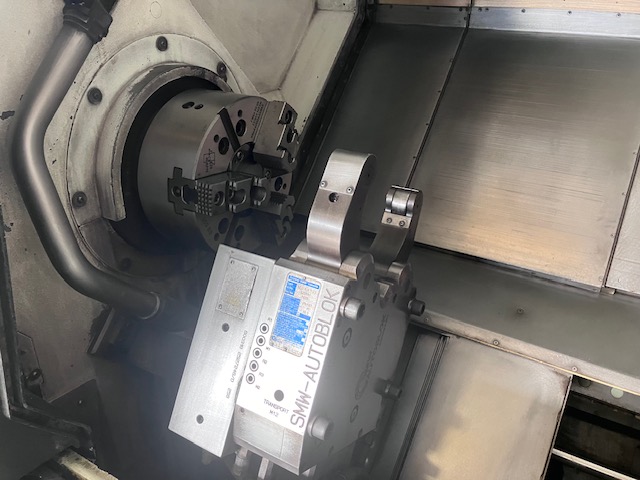

- Autoblock Self-Centering, 250 mm diameter
- Tool Presetting
- Optical scales on the X and Y axes

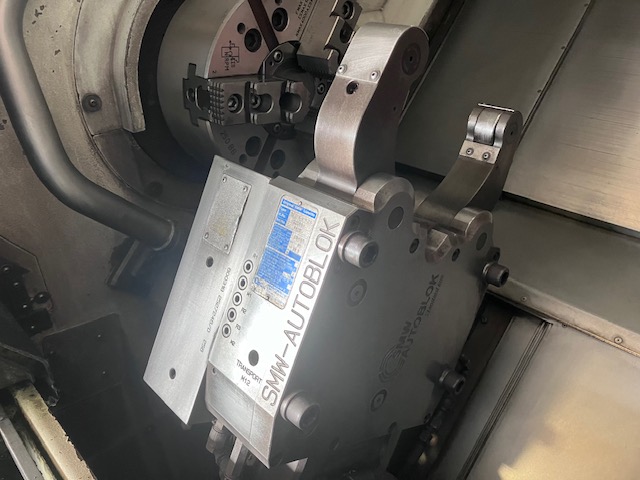

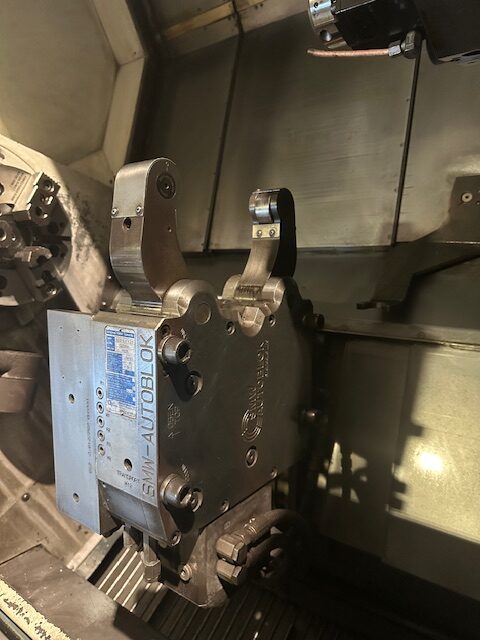

- Autoblock Bezel
- 3 axial motorized modules
- 3 radial motorized modules
- Fixed Module Set
- User and Maintenance Manuals and EC Declaration
Year built: 2017
