TECHNICAL SPECIFICATIONS:

MACHINE AVAILABLE FOR DELIVERY STARTING IN JUNE 2022

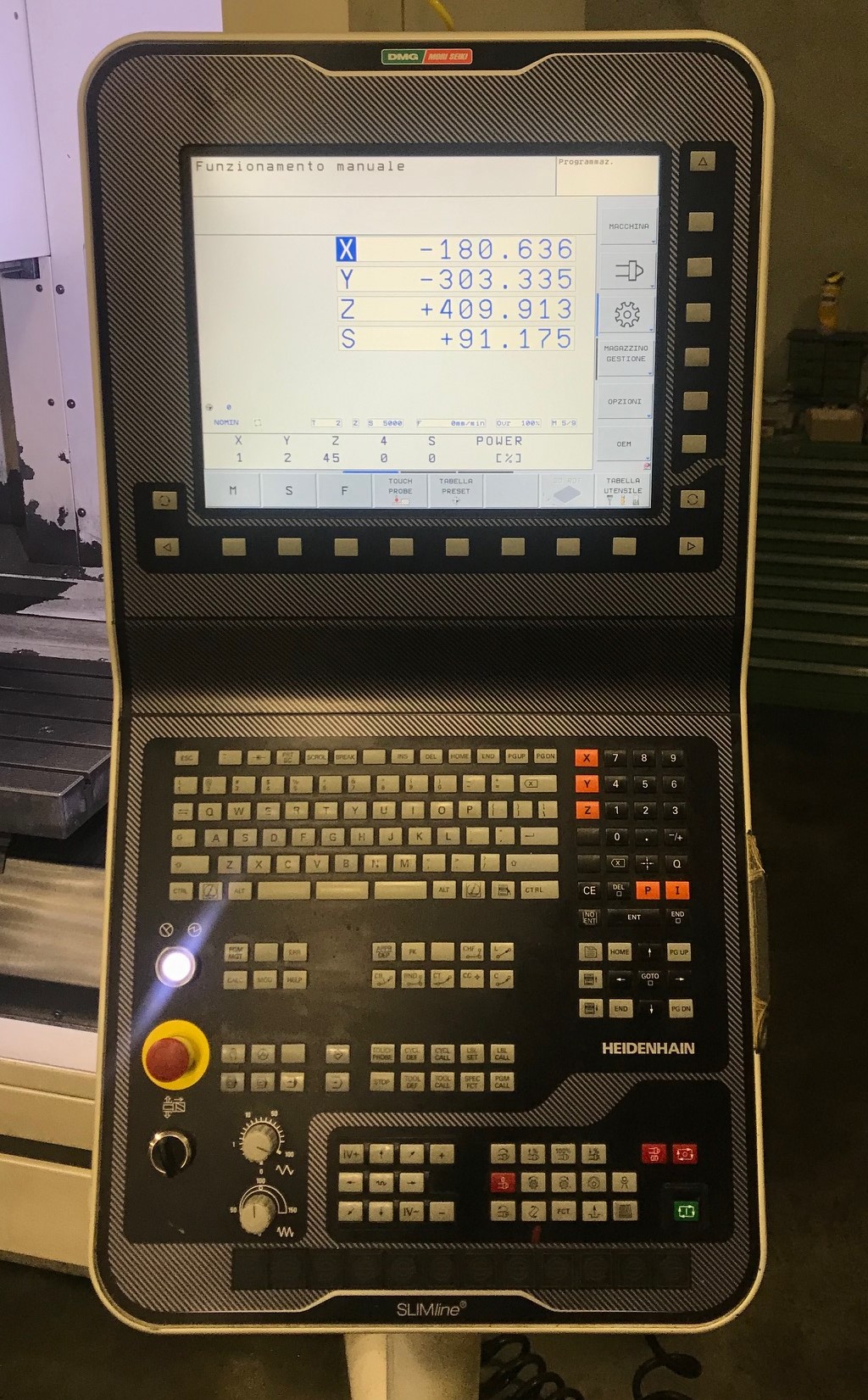

Heidenhain TNC 620 CNC

WORK AREA:

X-axis length: 1,035 mm

Y-axis width: 560 mm

Vertical Z: 510 mm

CHUCK:

Spindle taper: ISO 40

Rotational speed: 12,000 rpm

Spindle motor power: 13 kW

PROGRESS:

Feed rates for the X, Y, and Z axes: 20,000 mm/min

X, Y, and Z-axis rapid traverse: 30,000 mm/min

TABLE:

Clamping surface: 1,200 x 560 mm

T-slots (No. x size x spacing): 5 x 14 x 100

Maximum weight allowed on the platform: 1,000 kg

TOOL STORAGE:

Warehouse positions: 30

Max. diameter of adjacent tool in use: 80 mm

Max. diameter of adjacent tool with clearance: 130 mm

Maximum tool length: 300 mm

Maximum tool weight: 6 kg

DIMENSIONS AND WEIGHTS:

Machine dimensions: 6,000 x 4,000 x 2,900 mm

Machine weight: 4,500 kg

Power requirement: 17 kVA

Machine comes complete with:

• Renishaw Tool Integrity Probe
• Chip Conveyor
• Optical lines
• Instruction Manuals and EC Declaration

Year built: 2012

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
