TECHNICAL SPECIFICATIONS:

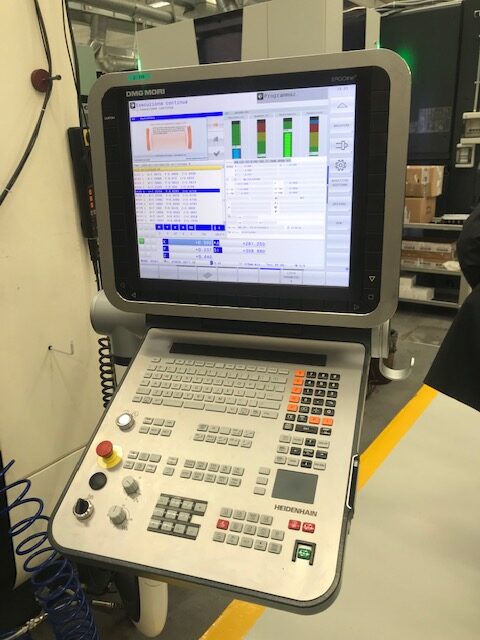

Heidenhain iTNC 530 CNC

WORK AREA:

Longitudinal X: 850 mm

Y-Axis: 520 mm

Vertical Z: 475 mm

PROGRESS:

Feed force: 6.5 kN

X, Y, Z Feed Rates: 42,000 mm/min

X, Y, Z feed rates: 42 m/min

Acceleration: ^{5 m/s²}

TOOL CHANGE:

Number of seats: 30

Maximum tool diameter: 100 mm

Maximum diameter with adjacent seats unoccupied: 160 mm

Maximum tool length: 360 mm

WORKPIECE TABLE:

Clamping surface: 1,160 x 570 mm

Loading height: 800 mm

Maximum permissible load: 1,000 kg

CHUCK:

Maximum rotational speed: 20,000 rpm

Spindle power (40/100/% DC): 35/25 kW

Torque (40/100% DC): 130/86 Nm

DIN 69871: SK 40

Machine comes complete with:

• 4th-axis capability
• Chip Conveyor
• Presetting
• Renishaw Probe
• Instruction Manuals and EC Declaration

Year built: 2015

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
