TECHNICAL SPECIFICATIONS:

Selca S3045D CNC

WORK CAPACITY:

X-axis travel: 1,400 mm

Y-axis travel: 650 mm

Z-axis travel: 610 mm

Distance from spindle nose to table surface: 150–760 mm

Distance between spindle axis and column: 720 mm

Rapid X–Y–Z travel: 15 m/min

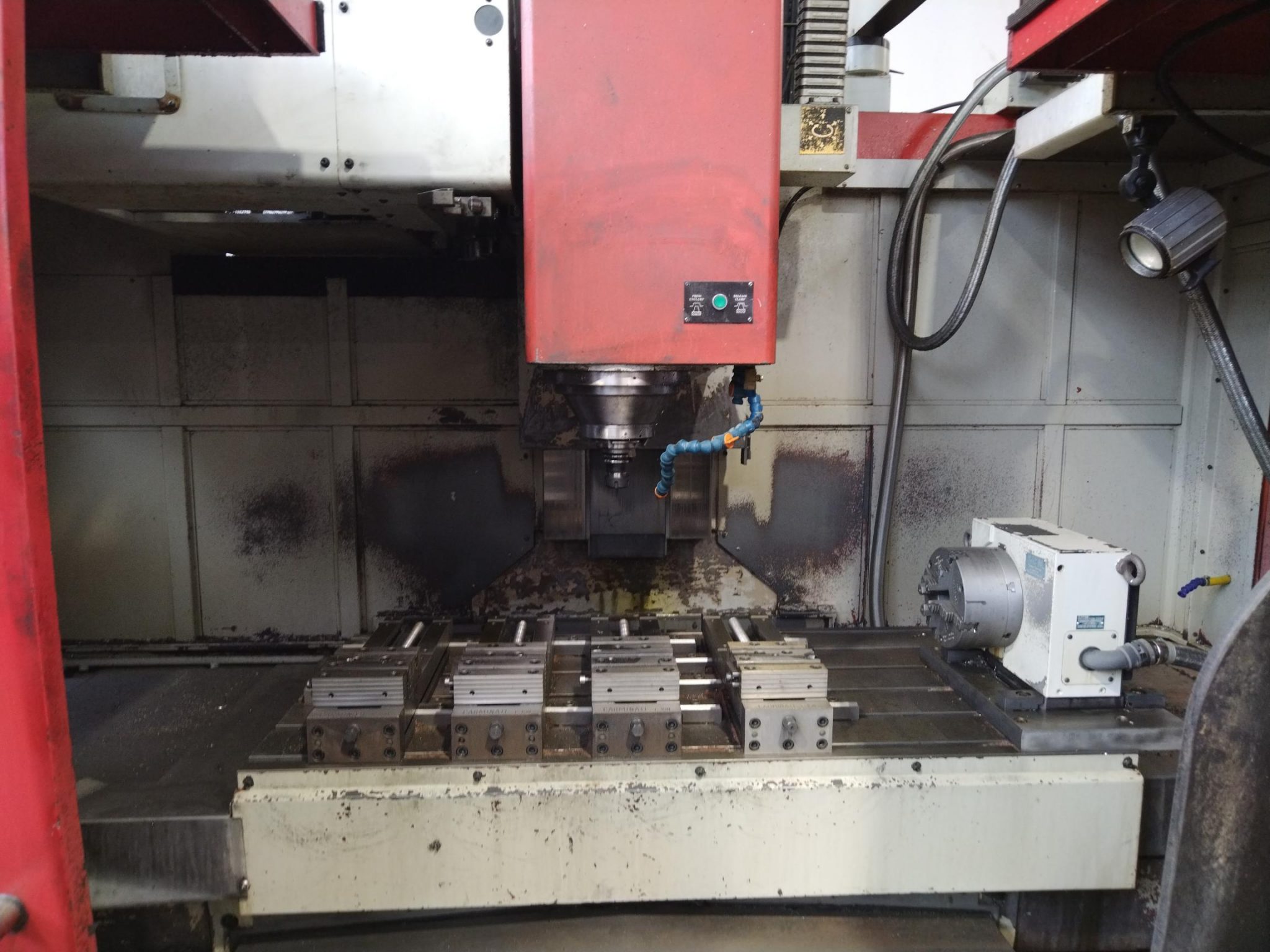

TABLE:

Table surface: 1,500 x 700 mm

Maximum load capacity: 2,500 kg

T-slots (number by size): 5 x 18

TOOL STORAGE:

Number of tools: 24

Maximum tool dimensions (diameter x length): 250 x 300 mm

CHUCK:

Spindle taper: BT 40

Rotational speed: 12,000 rpm

Machine weight: 12,000 kg

Machine comes complete with:

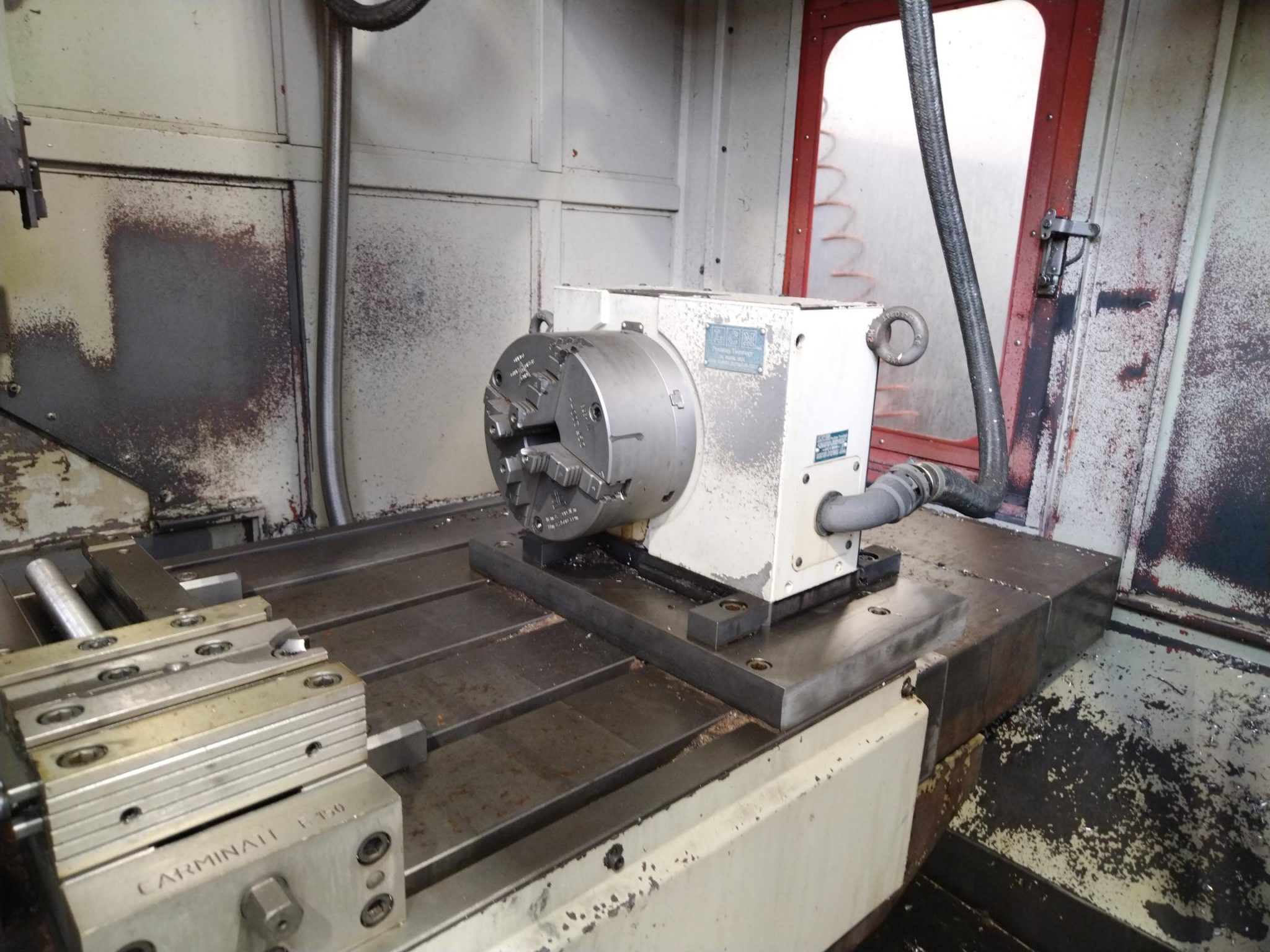

• LCM 4th-Axis Divider Table
• Remote-Controlled Electronic Flapper
• Chip Conveyor
• Instruction Manuals and EC Declaration

Year built: 2004

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
