Technical Specifications

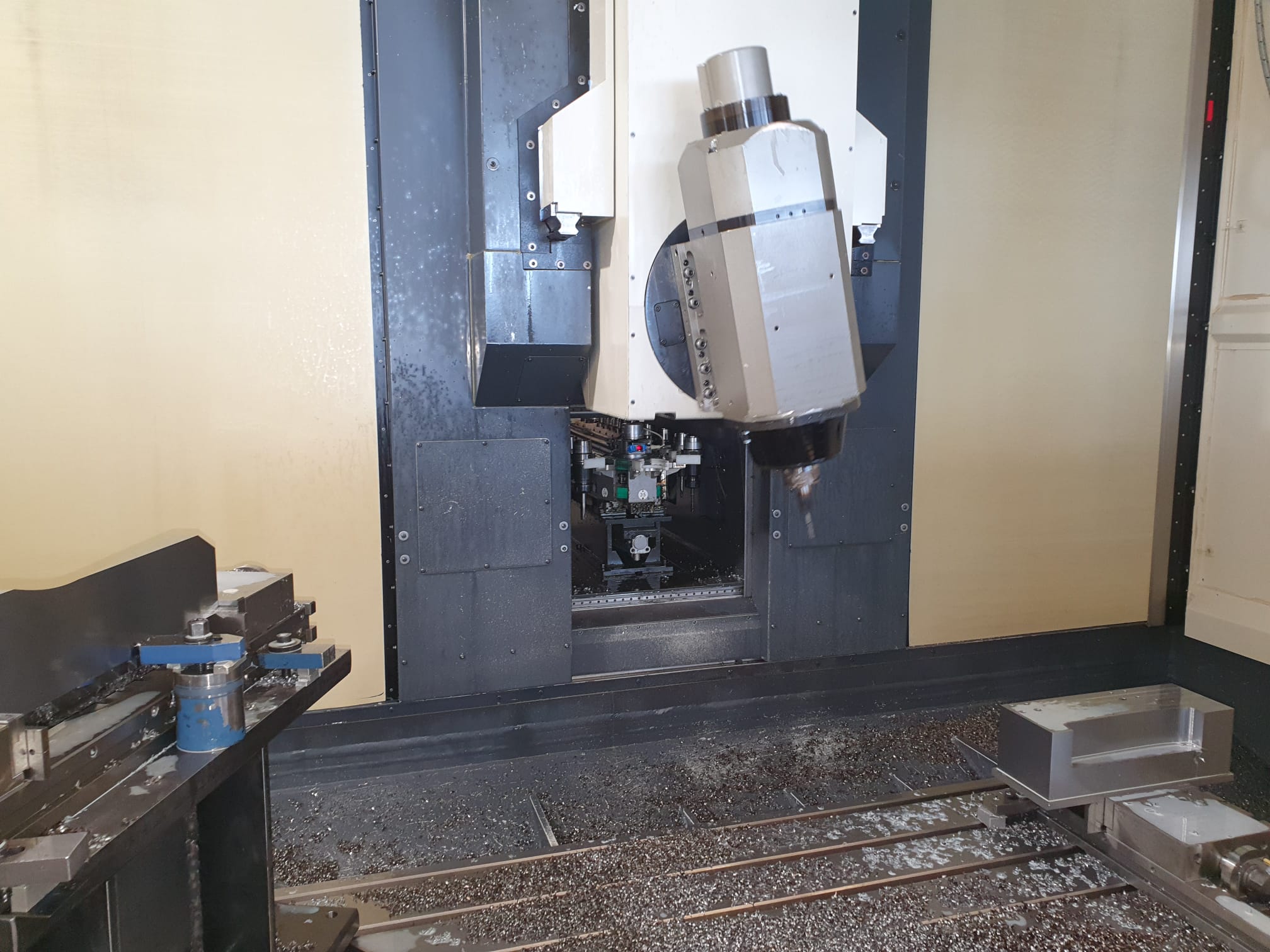

TECHNICAL SPECIFICATIONS FOR THE MOVING-COLUMN MACHINING CENTER:

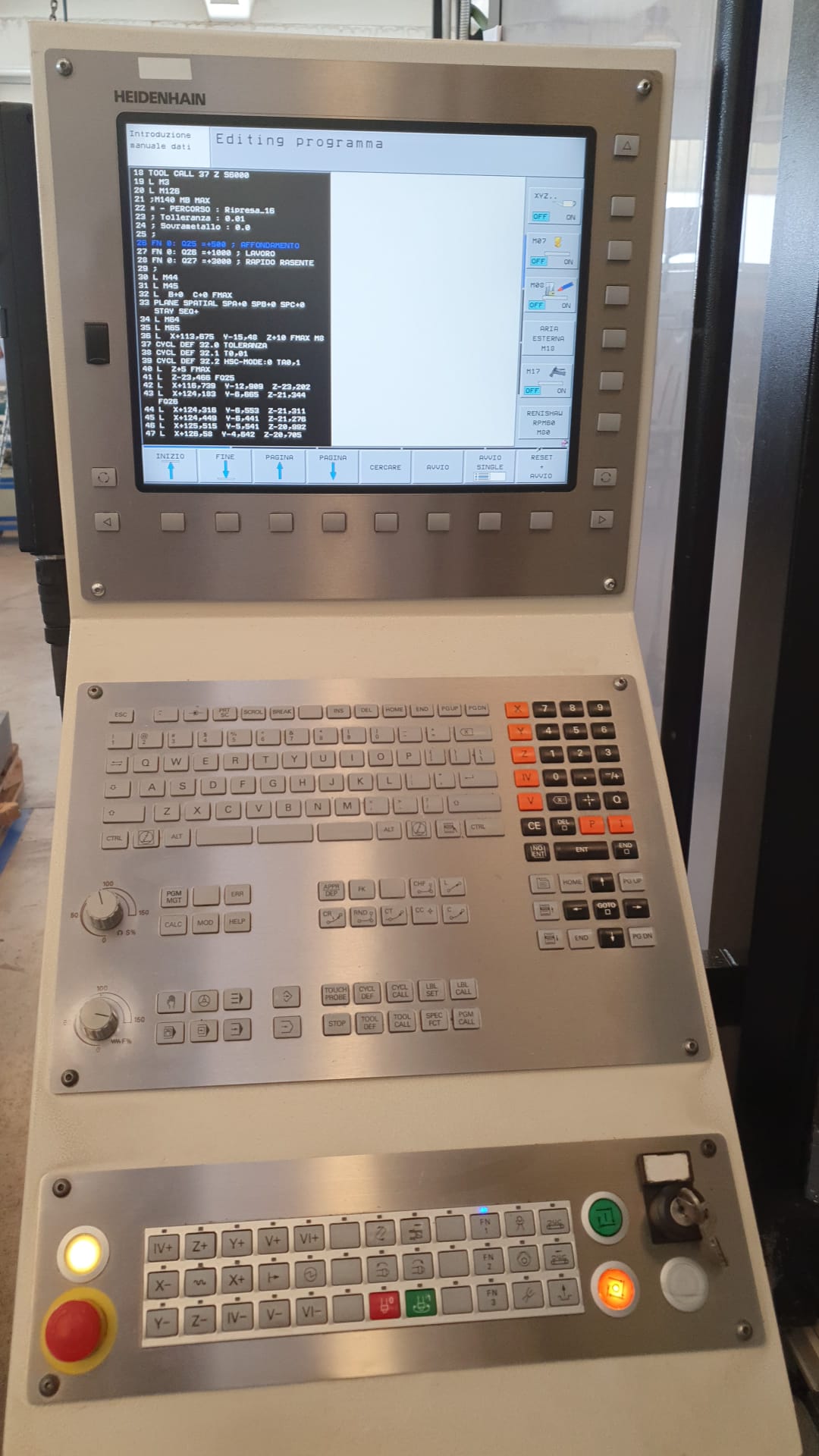

Heidenhain iTNC 530 CNC
WORK AREA:
X-axis: 2,200 mm
Y-axis width: 800 mm
Vertical Z: 600 + 150 mm (with 90° head)
FIXED TABLE:
Work surface: 2,400 x 800 mm
SWIVEL TABLE:
Diameter: 550 mm
Max. load: 1,500 kg
CHUCK:
Engine: 20 kW
Spindle speed: 24,000 rpm
Maximum torque (S6-60%): 100/115 Nm
Tool holder taper: HSK 63
PROGRESS:
Rapid feed rates for X, Y, and Z axes: 40 m/min
X, Y, Z-axis feed rate: 20,000 mm/min
TOOL STORAGE:
Warehouse positions: 40
Spindle taper: HSK 63
Year built: 2013
