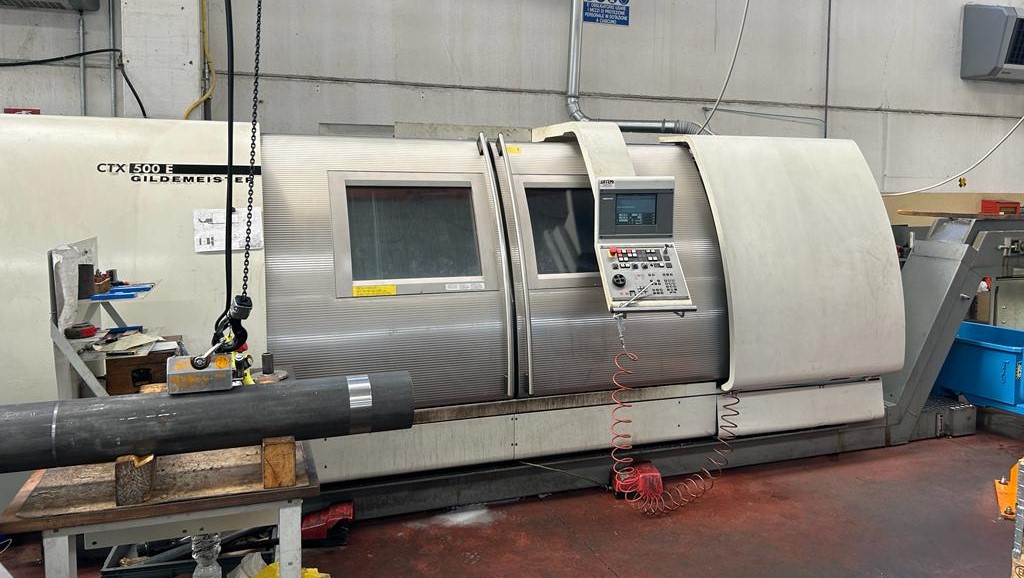

TECHNICAL SPECIFICATIONS:

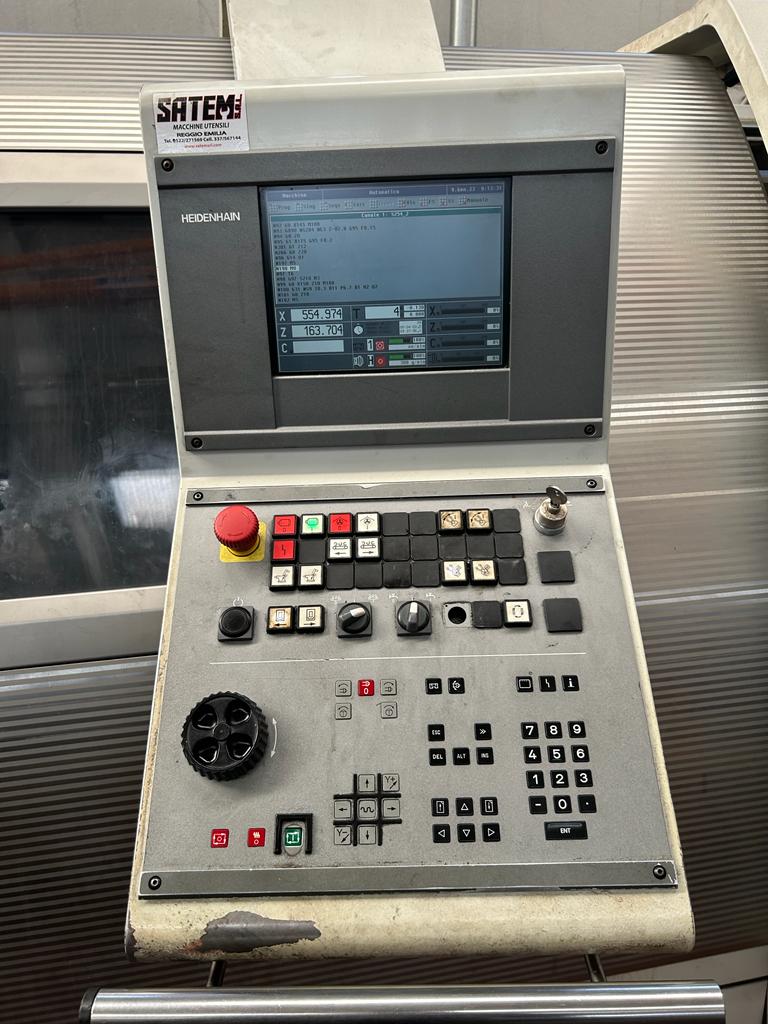

Heidenhain T Plus CNC

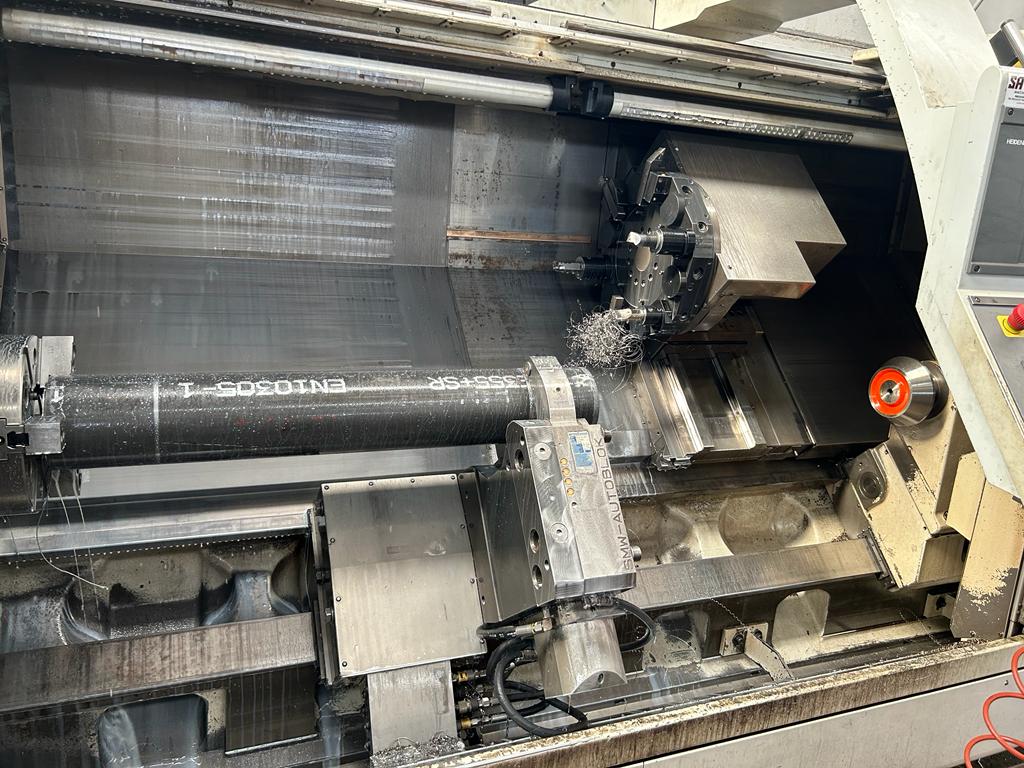

WORK AREA:
Rotation diameter beyond the pallet guide cover: 670 mm
Rotation diameter beyond the cross guide: 455 mm
Cross travel: 320 mm
Longitudinal stroke: 2,097 mm

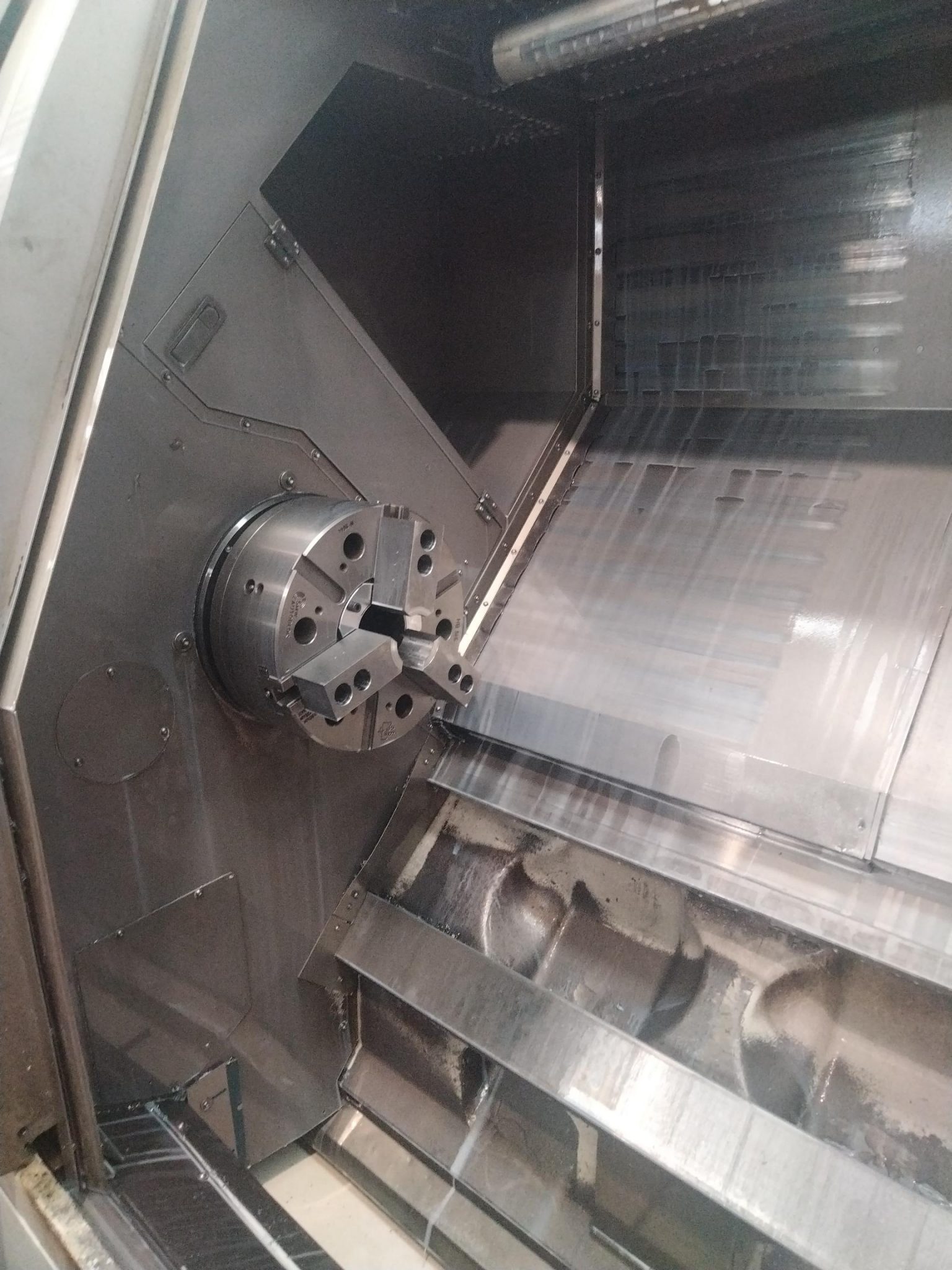

CHUCK:
Spindle head (flat flange): 220h5 mm
Spindle bore: 107 mm
Spindle diameter at the front bearing: 140 mm
Self-centering diameter: 315 mm

MAIN AC DRIVE:
Power 40% / 100% ED: 30 / 23 kW
Maximum torque at 40% / 100% ED: 848 / 650 Nm
Rotational speed: 18–3,600 rpm

AC AXIS FEED:
X/Z Rapid Feed Rate: 24 / 30 m/min

TORRETTA:
Number of tool stations: 12
Shaft diameter per DIN 69880: 40 mm
Maximum number of power tools: 6
Power at 40% ED: 9.7 kW
Maximum clamping diameter of powered tools: 20 mm

COUNTERPOINT:
Steering tube travel: 120 mm
Tip/shank housing: MK 5
Maximum tailstock force / spindle pressure: 1,400 daN
Machine weight: 10,000 kg
Machine comes complete with:
• Autoblok collet
• 3 radial power tools
• 2 axial power tools
• Chip conveyor
• Instruction manuals and CE declaration
Year built: 2001

The images and technical specifications are provided for illustrative purposes only and do not constitute a contractual element.
